Specifications
no water angle grinder diamond blade1.Diameter:4"~24"
2.Hot Press Type
3.Tip thickness:1.9~3.2mm
4.Hole size:20~30mm

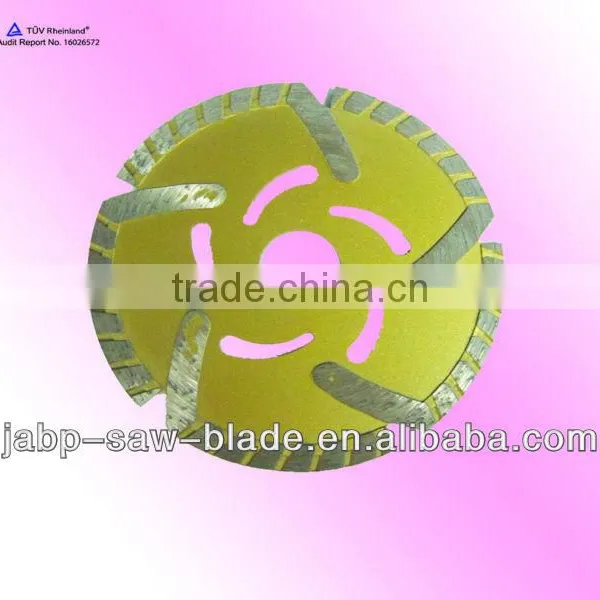

no water angle grinder diamond blade
We JABP Company was establised in 1973 and we founded Manufacturer in Jiangsu Province for over 10years. We have about 13 years experience of manufacturing and exporting all kinds of TCT saw blade, brush cutter blade, trimmer head and trimmer
line etc. Welcome to visit our website to see more informations:
http://jabp-saw-blade.en.china.cn/
1.The size: 4"~24"
2.The Tip material: diamond
3.The Tip thickness: 1.9~3.2MM
4.The body material: steel
5.The body thickness: 1.4~2.4MM
6.The saw balde is used for the tile; concrete; stone; brock; marble; etc
7.We can do any hole size(20mm or 16mm)
8.Packing:
A. Color Box
B. Sliding Card
C. Double Blister
D. Vacuum
9.Delivery time:30 days
Size(Inch) | Metirc(mm) | Bore Diameter(H) | Body Thickness | Thickness (T) | Height (W) | Length (L) | Segment Number |
| 4.5" | 115 | 20/22.23 | 1.4 | 1.9 | 7.0 | 38.3 | 8 |
5" | 125 | 20/22.23 | 1.4 | 1.9 | 7.0 | 37.5 | 9 |
7" | 180 | 22.23/25.4/30 | 1.6 | 2.2 | 7.0 | 35 | 14 |
9" | 230 | 22.23/25.4/30/50 | 1.8 | 2.4 | 7.2 | 34.4 | 18 |
10" | 250 | 22.23/25.4/30/50 | 2.2 | 3.0 | 7.5 | 37 | 18 |
12" | 300 | 22.23/25.4/30/50 | 2.2 | 3.2 | 7.5 | 35 | 22 |
14" | 350 | 22.23/25.4/30/50 | 2.2/2.4 | 3.2 | 7.5 |
