G10 Pneumatic Rock Drill

Name: G10 Pneumatic Rock Drill
Brand: utot
SKU: 143325548
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

utot

Model Number:

G10

Shenyang Hoperising Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name utot

Model Number G10

Basic Information.

Model NO.: G10

Type: Air Hammer

Name: Pneumatic Pick

Model: G10

Color: Blue or Yellow or Others

Export Markets: Global

Product Description

Safe and easy operate; High Efficiency and reliability.

Introduction

Handheld pneumatic tools, using compressed air to push the piston reciprocating movement, keeping the pick up to

the impact.

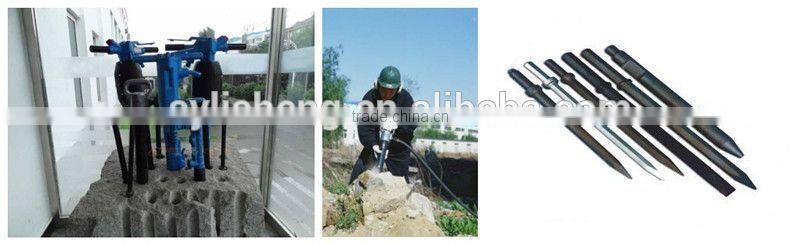

Pneumatic pick is tool that is often used in excavating, geology or destroying hard or frozen stratum and other

occasions. It somewhat resembles a construction hammer, except that it usually has a long, pointed tip on the end.

It is designed to chisel through and break up rock in locations where using powered equipment might be impractical.

Applications:

The pneumatic pick is suitable for drilling in mine,metallurgy, railway, transportation,water conservancy, infrastructure

and defense engineering, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other

occasions which need impact.Its an ideal machine for construction and back out of mines, bridges, roads, water pipes

and electricity grids.

Specifications

Pneumatic Pick, Air Pick, Air Hammer (G10)
Total Length(mm)	575
Weight(Kg)	10
Hammer Weigh(Kg)	0.9
Hammer Diameter(mm)	38
Hammer Stroke(mm)	155
Air Compressor(Mpa)	0.4~0.5
Impact Energy(J)	43
Impact Frequency(Hz)	≥15
Air Consumption(L/s)	≤20
Air Pipe Inner Diameter(mm)	16
Drill(mm)	500
