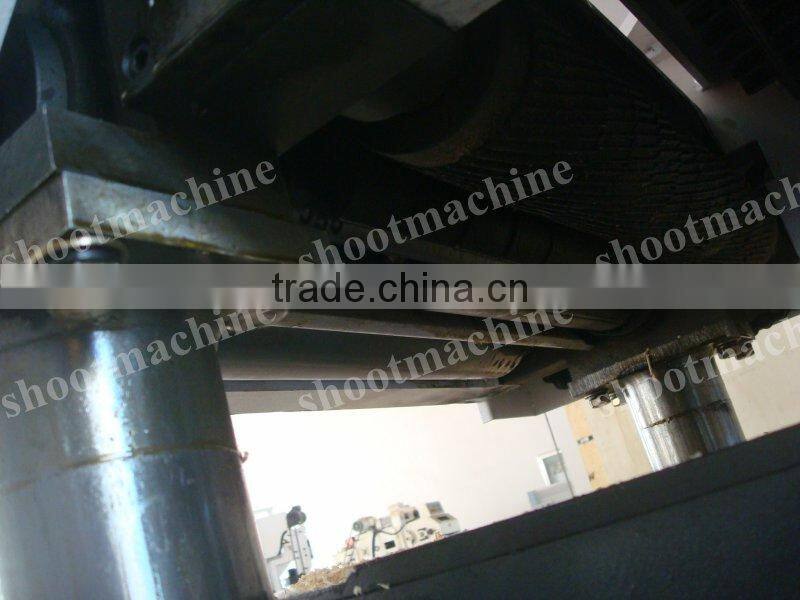

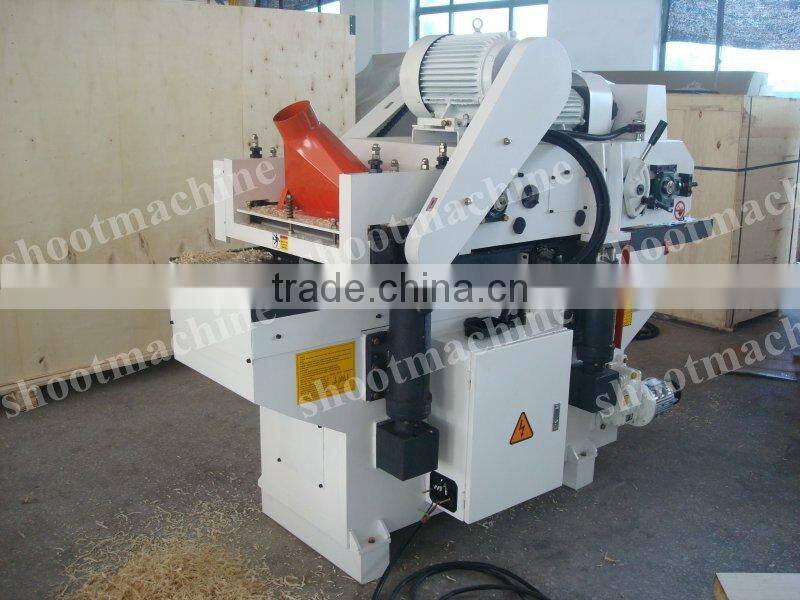

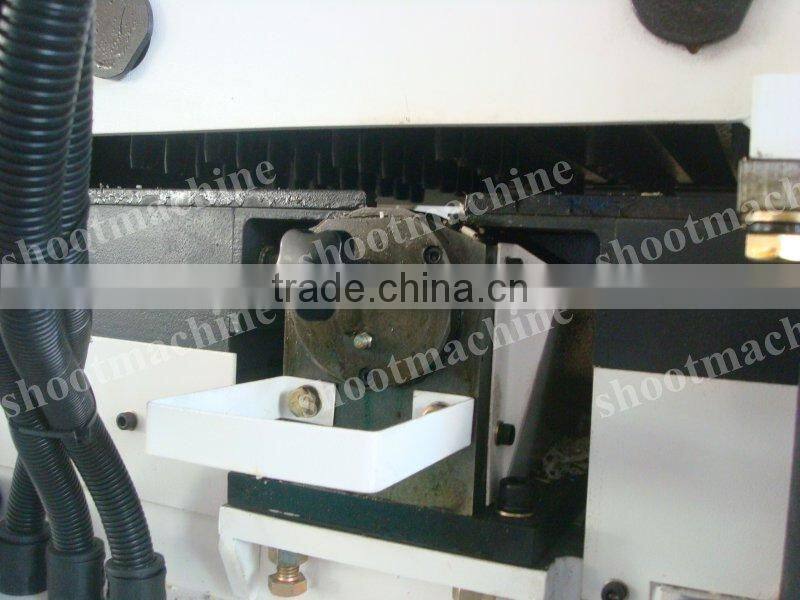

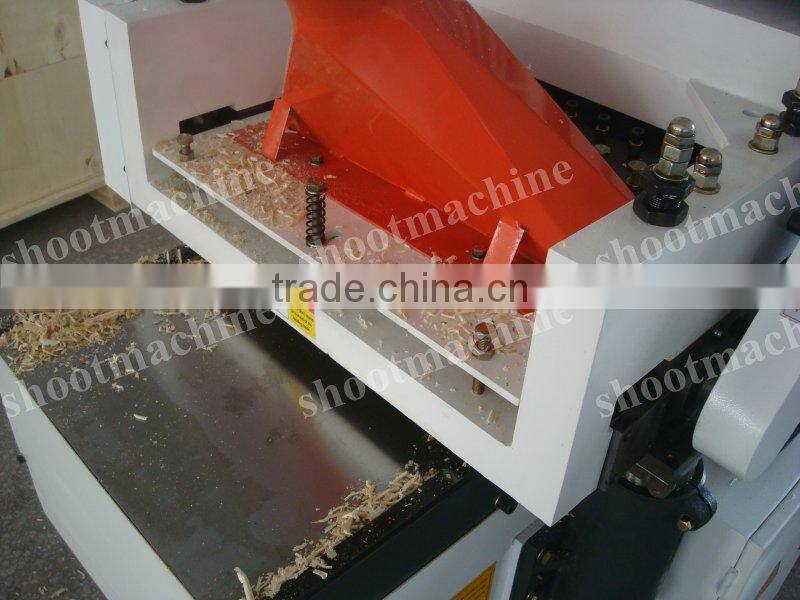

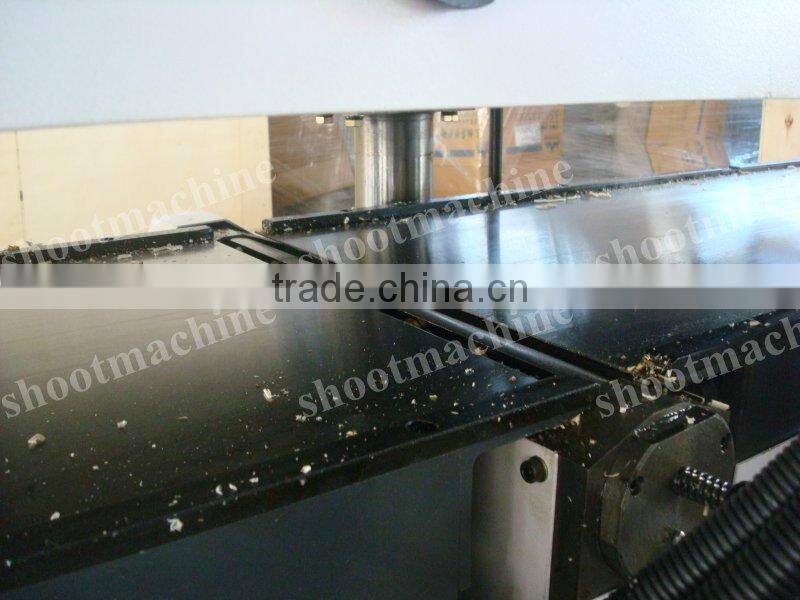

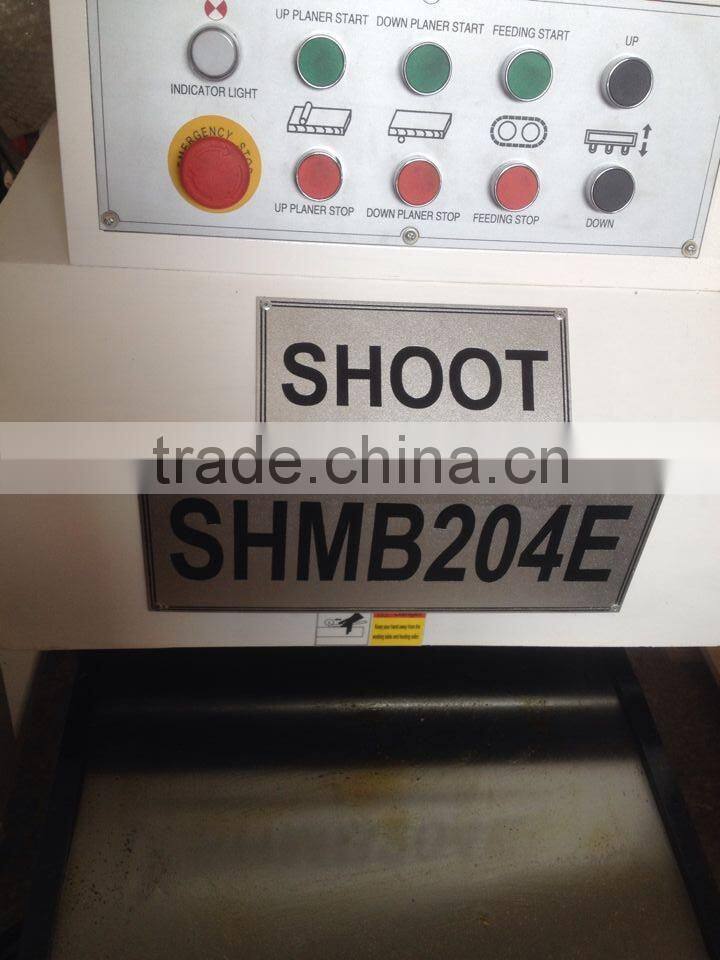

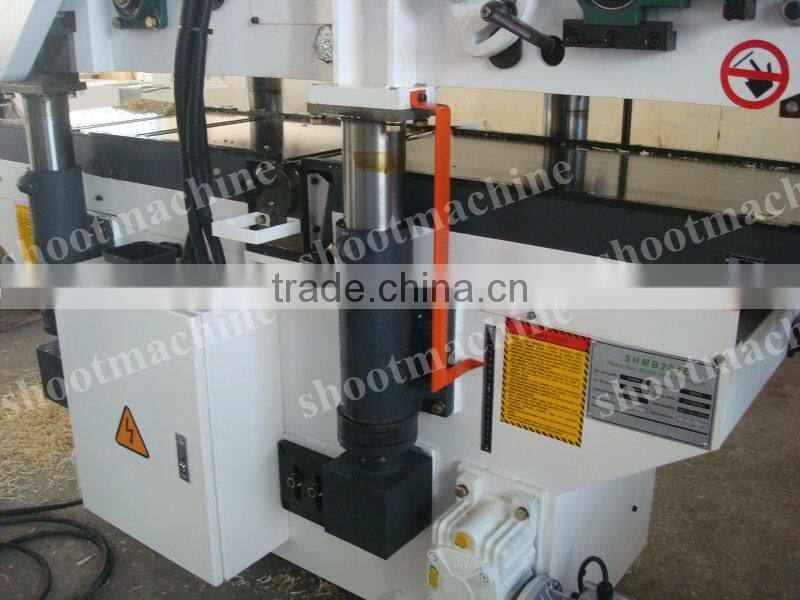

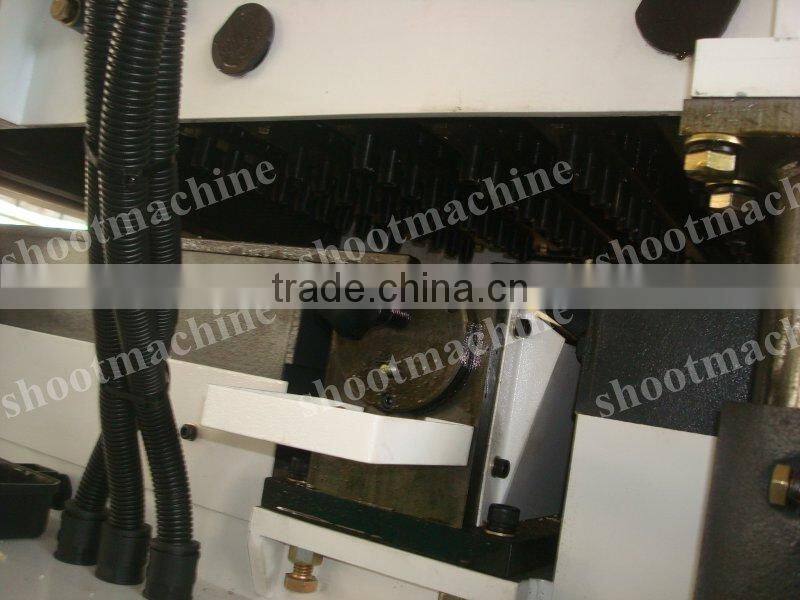

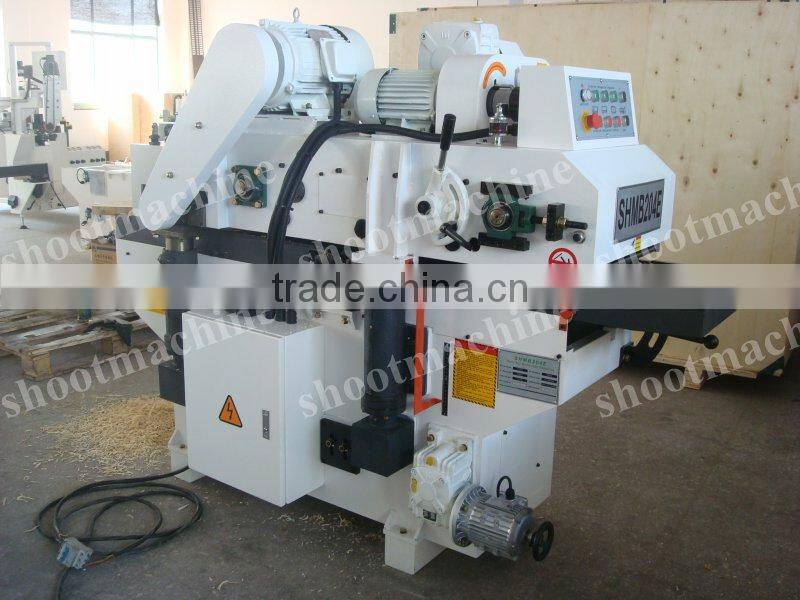

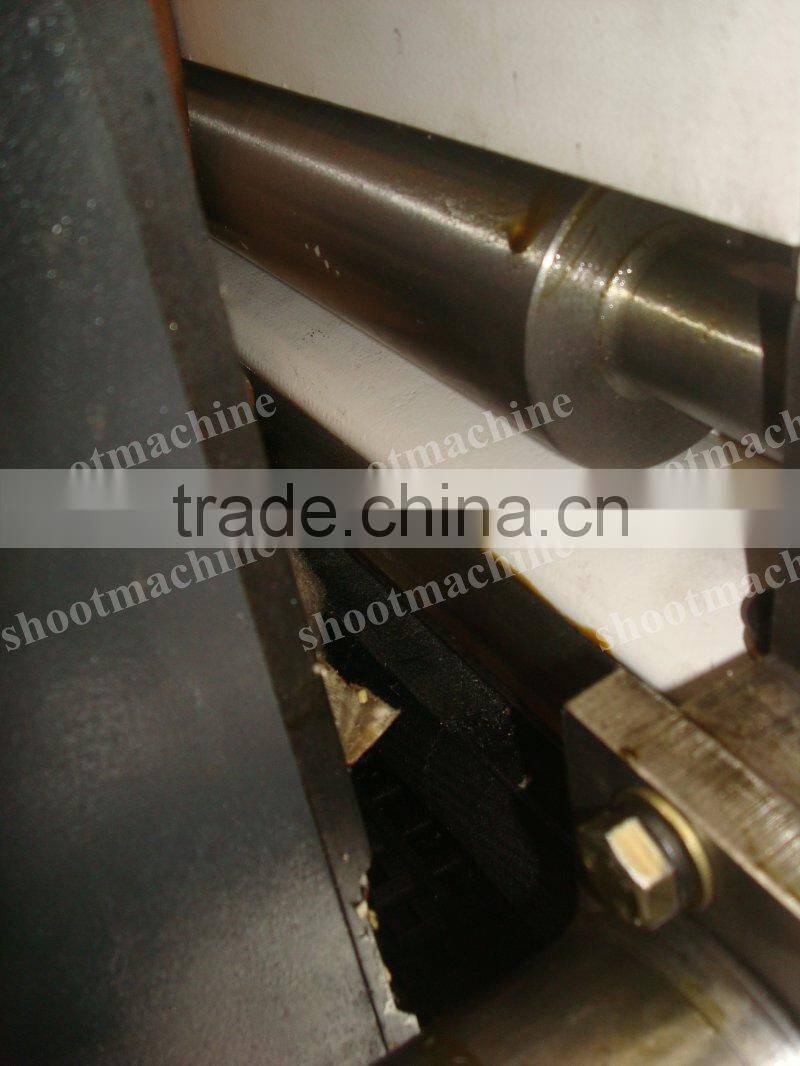

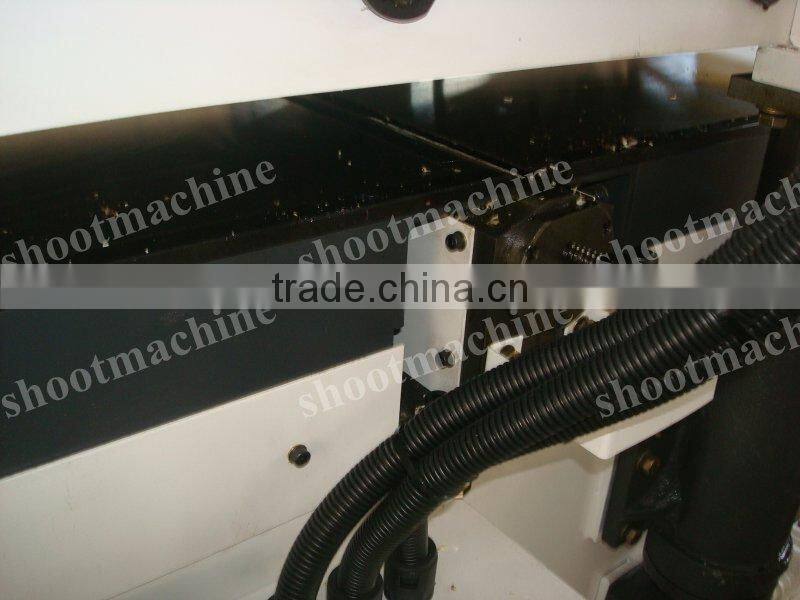

Auto Double Side Planer SHMB204E with Max.workpiece width 400mm and Max.workpiece thickness 120mm
Negotiable
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
Single-side Wood-working Thicknesser SHMB102B with Max.planing width 200 mm and Max.planing thickness 100 mm
-
Single-side Wood-working Thicknesser SHMB103A with Max.planing width 300 mm and Max.planing thickness 100 mm
-
Double Sides Planer SHMB203 with Max.planing width 300mm and Planing thickness 8-110mm
-
Double Sides Planer SHMB204 with Max.planing width 400mm and Planing thickness 8-110mm
-
Single Side Woodworking Thicknesser Machine SHJ-105D with Max. Planing Width 500mm and Max. Planing 5mm
-
Single Side Woodworking Thicknesser Machine SHJ-104D with Max. Planing Width 400mm and Max. Planing 5mm
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SHOOT | Model Number | SHMB204E | |
| Dimension(L*W*H) | 2160x920x1700mm | Weight | 1300/1350kg | |
| Certification | CE |
Product Description
SHMB204E Auto Double Side Planer |
| piece width | 400mm |
| piece thickness | 120mm |
| piece length | 300mm |
| piece thickness | 10mm |
| Max.upper cutter planing capacity | 7mm |
| Max.lower cutter planing capacity | 5mm |
| Spindle speed | 5000r/min |
| Spindle cutting diameter | 112mm |
| Feeding speed | 5-20m/min |
| Upper cutter motor | 5.5kw |
| Lower cutter motor | 4kw |
| Feeding motor | 1.5kw |
| Lifting motor | 0.75kw |
| Net.weight | 1300kg |
| Overall dimensions | 2500×1210×1630mm |
