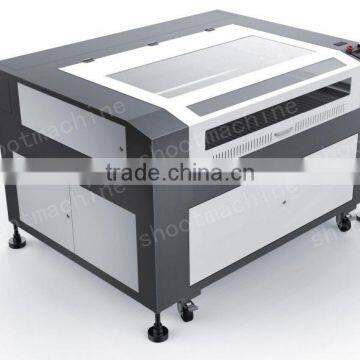

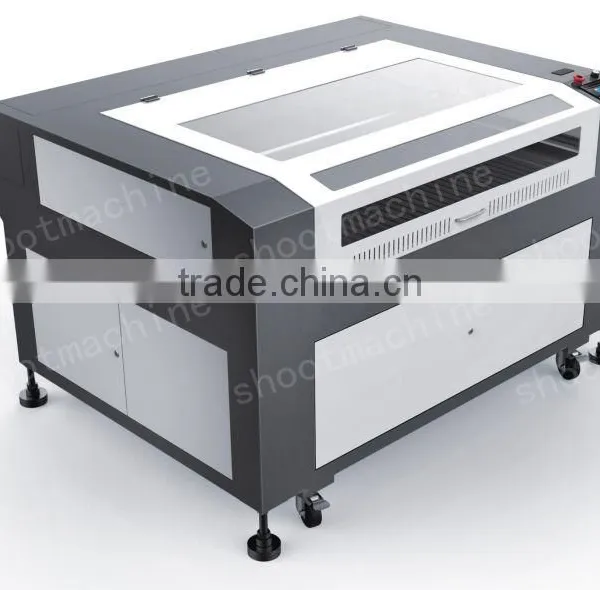

Laser Cutting Machine SHCOL-1390 With Laser-type Sealed CO2 laser tube and Cutting area 1300x900mm
Negotiable
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
Special Laser Cutting Machine For Acrylic SHCOL-1390SA With Laser power 130W 150W and Cutting area 1300x900mm
-
Laser Cutting Machine SHCOL-1390N With Laser-type Sealed CO2 laser tube and Cutting area 1300x900mm
-
15 Cubic Meters High Frequency Vacuum Wood Dryer Machine SHGPZG15 with Capacity 15.6 cubic meters and Total input power 50KVA
-
12 Cubic Meters High Frequency Vacuum Wood Dryer Machine SHGPZG12 with Capacity 12 cubic meters and Total input power 50KVA
-
High Frequency Vacuum Wood Dryer Machine SHGPZG10 with Type of work High-frequency heating, vacuum dehydration
-
High Frequency Vacuum Wood Dryer Machine SHGPZG8 with Type of work High-frequency heating, vacuum dehydration
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SHOOT | Model Number | SHCOL-1390 |
Product Description
| Laser Cutting Machine | |
| Feature | |
| Wood, organic glass, plastic, garments, paper, leather, rubber, and other nonmetal materials. | |
| The unique deceleration design makes the mechanical system move stably and smoothly. The edge of cutting is smooth and there is no sawtooth. The software adopts continuous curve method to get faster cutting speed. | |
| Model | SHCOL-1390 |
| Laser-type | Sealed CO2 laser tube |
| Laser power | 80W 100W 130W 150W 200W (optional) |
| Cutting area | 1300x900mm |
| Whole machine size | 1820x1410x1075mm |
| Cutting speed | 0-24000mm/min |
| Resetting positioning accuracy | +/-0.05mm |
| Working voltage | AC110-220V+/-10%,50-60HZ |
| Gross power | <1200W |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-95% |
| Minimum shaping character | English 1x1mm |
| Graphic format supported | BMP, PLT, DST, DXP and AI |
| Driving system | stepper |
| Cooling mode | water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe |
| Controlling software | DSP control system |
| Compatible software | CorelDrae AutoCAD Photoshop |
| Net weight | 280kg |
