CNC Band Saw SH-25.CNC with Wheel Dia.&Width 900X60mm and Minimum Cutting Radius 50mm and Saw Width 13mm
Negotiable
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
Multi-blade Wood Saw SH173B with Max. working dia. 240mm and Min. working dia. 80mm
-
Multi-blade Round Saw SH162 with Working thickness 10-75mm and Max. working width 200mm
-
Woodworking Heavy Duty Band Saw Machine DJ970 with 7.5kw Motor and Auto feed and High Speed
-
Single Head Bander Saw SH3707AX30 with Width of conveyor belt 285mm and Feeding speed 0-25m/min
-
Combine Woodworking Machine MJ233C with 6kinds function and 3pcs motor
-
Combine Woodworking Machine MJ233B with 6kinds function and 3pcs motor
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | SH-25.CNC | Dimension(L*W*H) | 5600X3300X2700mm | |
| Weight | 4000/5500KG | Certification | CE |
Product Description
| CNC Band Saw | |
| Features | |
| Fully automaitc processing greatly improves the efficiency and working qualiy,provided a firm foundation,allowing a smooth & faster production. | |
| Advanced CNC system,simple and easy control.Only with basic CAD knowledge,technicians operated the machine easily without the other software application. | |
| Machine construted with high performance and high quality components. | |
| Model | SH-25.CNC |
| Wheel Dia.&Width | 900×60mm |
| Minimum Cutting Ladius | 50mm |
| Saw Width | 13mm |
| Saw Length | 5880mm |

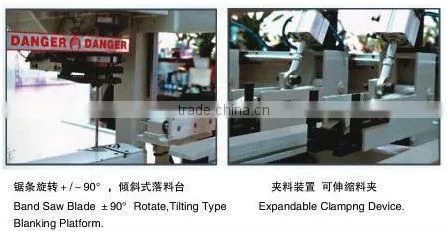

| Saw Tilting | -90°~+90° |
| Sawblade Speed | 450-550rpm.50-60Hz |
| Cutting Capacity | 2500×1250×150mm |
| Sawblade Drive Motor | 7.5KW |
| X Spindle | 2.0kw |
| Y Spindle | 1.0kw |
| Z Spindle | 0.75kwx2 |
| Control System | |
| Working Capacity | 1-20m/min |
| Max Speed | 35m/min |
| Dust Exit | Φ120×1Φ100×3 |
| Air Consumption | 6mps/m2 |
| Net Weight | 4000+1500kg |
| Overall Dimensionsr | 5600×3300×2700mm |
| Arc chair foot: |
| Board material size 920mm(long)x1150mm(wide). |
| Direct call design drawings or measurement of |
| workpiece material, template. |
| Figure 1 |
| Artificial feeding: |
| Real size: 43mm, due to the artificial feeding |
| precision is not enough, so to put allowance |
| 4mm, plus the saw kerf(i.e. saw blade thickness |
| 1-1.5mm), the actual material width 48.5mm, so |
| artificial discharging quantity:23-24. |
| CNC band discharge: |
| Because CNC bandsaw cutting high size precision, |
| therefore, discharge allowances generally only 2mm |
| can be, so the legend"1" to the use of CNC band |
| material, its actual material needs only 46.5mm, so |
| the same width (1150mm) sheet a: 24-25. This |
| saves expensive wood, and because of high |
| precision, sawing, the subsequent process more |
| convenient, easy; but also reduced the labor |
| intensity, reduce the tool wear, virtually more save |
| time. |
| Automatic generation of machining program. |
| First of all, the CAD file into DXF file format, |
| and then from the NC system interface directly |
| to open this file automatically generated. This |
| machine is considered in the design of the |
| utility, thus only needs to set the thickness |
| of the saw blade, processing speed and |
| other parameters can automatically generate |
| the required processing code. As the legend |
| "1" program to store codefor JL001. |
| In order to safety, material saving, the calling |
| program in the special simulation software |
| simulation processing. |
| Production program code stored once formed, |
| this procedure can be permanent call, after doing |
| the same products do not need to layout |
| progranning; as do the legend "1" in the product, |
| simply call the JL001 can; if manual typesetting |
| must do a first row, so it is a whole province a |
| procedure! |
