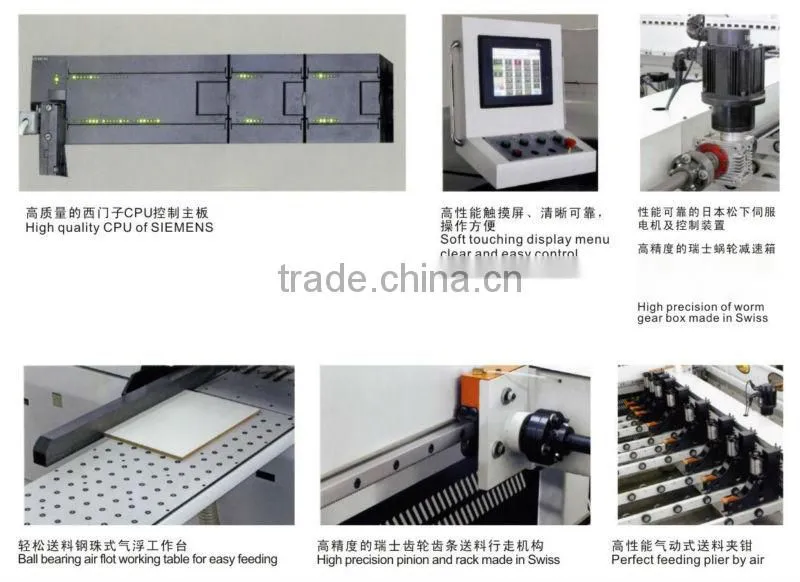

COMPUTER PANEL SAW SH1333 With Max. Cutting Length 3280mm and Max. Cutting Thickness 76mm
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Shandong, China
Brand Name:
SHOOT
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
COMPUTER PANEL SAW SH330 With Max. Cutting Length 3280mm and Max. Cutting Thickness 76mmNegotiableMOQ: 1 Piece -
Wood Sliding Panel Saw SH6128TZG With 2800x360mm Column Guide Rail and 45degree Tilting and 4kw MotorNegotiableMOQ: 1 Piece
-
Wood Cutting Panel Saw SH6130TZG With Length of Sliding Table 3000mm and Motor Power of Main Saw Spindle 4KWNegotiableMOQ: 1 Piece
-
Wood Cutting Panel Saw SH6132TZG With Length of Sliding Table 3200x360mm and 4kw MotorNegotiableMOQ: 1 Piece
-
Wood Cutting Panel Saw SH6116TZ With Length of Alu. Sliding Table 1600mm and Tiling Saw Blade 0-45degreeNegotiableMOQ: 1 Piece
Place of Origin
Shandong, China
Brand Name
SHOOT
Model Number
SH1333
| COMPUTER PANEL SAW | |
| MODEL | SH1333 |
| Max. cutting length | 3280mm |
| Max. cutting thickness | 76mm |
| Diameter of main saw blade | 350mm |
| Diameter of main saw spindle | 60mm |
| Rotation speed of main saw blade | 4800rpm |
| Diameter of scoring saw blade | 180mm |
| Diameter of scoring saw spindle | 30mm |
| Rotation speed of scoring saw blade | 6500rpm |
| Forward speed of saw carriage(stepless) | 9-37m/min |
| Backward speed of saw carriage | 67m/min |
| Drive motor of main saw blade | 11kw |
| Drive motor of saw carriage | 1.5kw |
| Automatic feeding motor | 1.0kw(AC Servomotor) |
| Total power consumption | 15.7kw |
| Automatic feeding speed | 30m/min |
| Pnenmatic pressure | 5-7kg/cm2 |
| Table height from floor | 900mm |
| Net weight | 5500kg |
| Overall dimensions | 5830x6630x1750mm |
Option
| HYDRAULIC LIFT TABLE(OPTION) | |
| MODEL | MF7113 |
| Working table size | 2500x1300mm |
| Max. raising weight | 3000kg |
| Min. height of working table | 480mm |
| Max. raising height | 1900mm |
| Pump power | 1.5kw |
| Dia of oil cylinder | 100mm |
| Net weight | 1300kg |
| Overall dimensions | 2500x1300x420mm |
