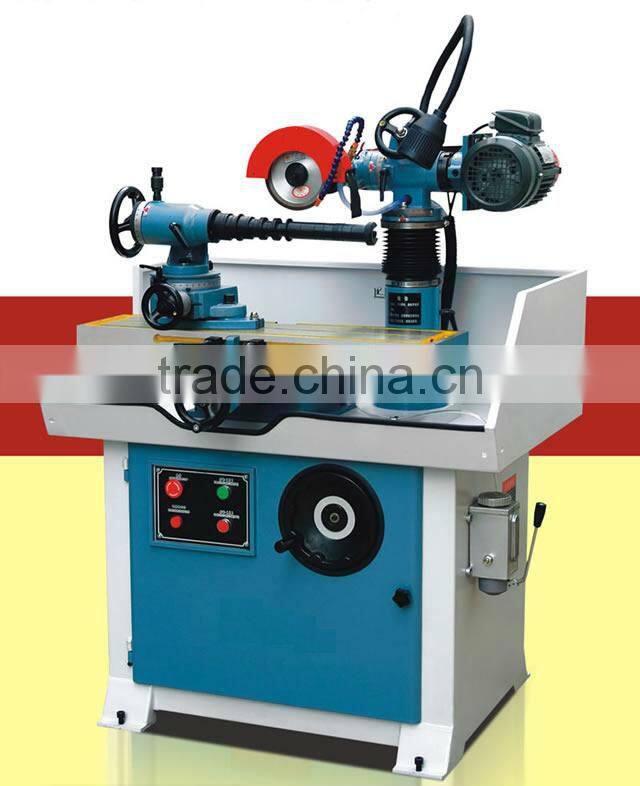

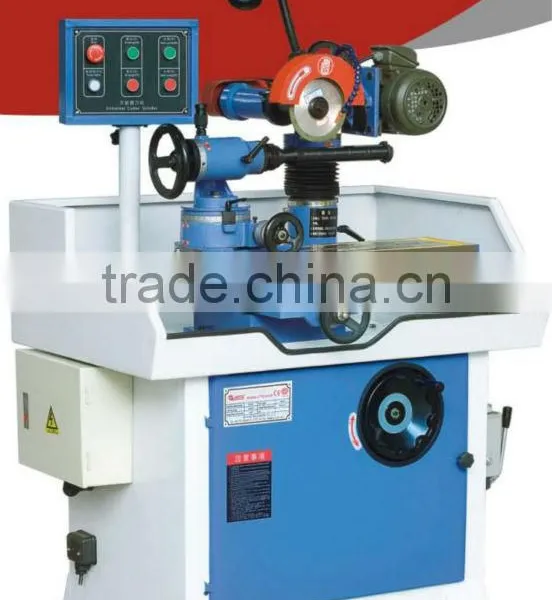

Universal Cutter Grinder SH2720W With Cutter Rest Tuming Diameter 400mm

Name: Universal Cutter Grinder SH2720W With Cutter Rest Tuming Diameter 400mm
Brand: SHOOT
SKU: 143320498
Availability: InStock

Yantai Shoot Import & Export Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other

CNC or Not Normal

Max. Grinding Diameter 400mm

Place of Origin Shandong, China

Brand Name SHOOT

Model Number SH2720W

Power(W) 590W

Dimension(L*W*H) 850x850x1250mm

Weight 200kg

Certification CE

Universal Cutter Grinder
Applications
The machingery is mainly used to grinding all kinds of hard alloy cutter and can also be used to grind milling cutter, voodworking planing tools and some round saw blade of different secifications when installed with corresponding fittings and device. The Conditioing planker and workbench stroke adopt high precision V-type celicate track. The principle axis angle, grinding wheel lifting and cutter rest are all adjusted by worm and gear structures High adgree accuracy scale rings are insralled all adjusting sections to ensure the accuray of the scale.
Model	SH2720W
Cutter Rest Tuming Diameter	400mm
Grinding Wheel Specification	10X32(16)X150mm
Cutter Rest Stroke	300mm
Grinding Wheel Rotate Speed	3500r/min
Grinding Wheel Tuming Speed	+/-45degree
Power of Motor	0.59kw
Applicable Saw Blade Size	120-630mm
Overall dimensions	850x850x1250mm
Net. Weight	200kg
