OEM Plastic/Metal/Stainless Pressure Gauge1.24 years manufacturing experience
2.Plastic and Stainless body
3.ISO9001,CE,CCC

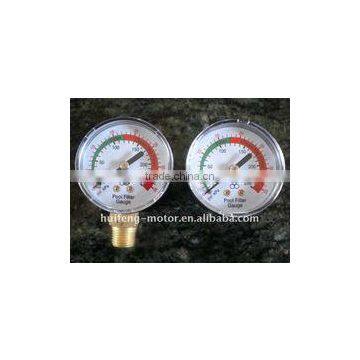

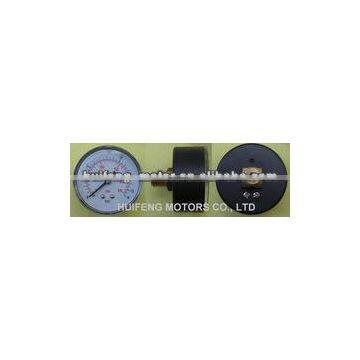

OEM Plastic/Metal/Stainless Pressure Gauge
Size: 2.5"(63mm), 4"(100mm), 6"(150mm).
Accuracy: ±1.6% of full scales for 2.5"(63mm) ±1.0% of full scales for 4"(100mm),6"(150mm).
Range available ( no stock): -30"Hg~0 (vacuum) -30"Hg~0~200psi (compound) 0 ~ 15psi ~ 10000psi (pressure)
Working Pressure: Steady: 3/4 of full scale Fluctuating: 2/3 of full scale Short time : full scale
Operating Temperature: Ambient: -4°F to 140°F (-20°C to +60°C)
Size: |
1.5",2.0",2.5", 4", 6" (40MM,50MM,60MM,100MM,150MM) |
Pressure range: |
Stainless steel 316L ≤ 100 bar: C-type / ≥ 100 bar: Helical type |
Connection thread: |
PT,NPT,G1/4,M14*1.5,PT,NPT,G1/2,M20*1.5,G3/8…… |
Bourdon Tube: |
phosphor bronze, stainless steel |
Movement |
brass ,stainless steel |
Case: |
stainless steel |
Window (lens): |
Glass ,Safety glass |
Accuracy: |
1.0, 1.5, 2.0, 2.5.. |
Ambient temperature: |
'-40 to 60 °C |
Connection: |
Bottom (Vertical),back mount |
Pointer and dial: |
aluminum |
Oil-filled(Glycerin, Silicone oil) |
Media: max. 140°F (+60°C)
Service Fluid: Compatible gases and liquids
Housing: Stainless steel case and bayonet ring
Windows: Safety glass
Liquid filled: Glycerin
Bourdon Tube: Stainless steel
30"Hg~800psi C-Type, 800 psi to 6000 psi Coil-Type
Movement : Stainless steel C
onnection: Stainless steel 1/4" for 2.5"(63mm) 1/2" for 4"((100mm), 6"(150mm) Thread: BSP , BSPT, NPT ,or metric thread.
Dials and pointer: Aluminum White background, Black or black and red lettering. With customer logo is available.
Operating temperature: -20°C ~ 60°C (-4 °F ~ 140 °F)
Working pressure: Steady: 3/4 of full scale Fluctuating: 2/3 of full scale Short time: full scale
Scale Unit : Bar or Bar+Psi
Optional extras: Connection also can be Chrome or Nickel plated. Scale unit can use KPa , MPa,Kgf/cm2, kg/cm2, torr, atm. Liquid inside can be changed to be silicon oil. Liquid inside can be filled by customer. Fill cap can be changed to be with on-off type .
Remarks:
1. OEM Service Could Be Provided;
2. Gauge face. We could print customer's logo according to requirement -- Brand authorization letter is needed.
3. We could also supply:
Metal Pressure Gauge,
Stainless Pressure Gauge,
Vacuum Pressure Gauge,
Trie Pressure Gauge,
Refrigeration Gauge,
Thermal Meter,
Air Test Gauge,
Water Test Meter etc.
