Specifications
Pressure Gauge in Black Color1.Provides resistance to aggressive media
and environments
2.Stainless steel 304,316,316L

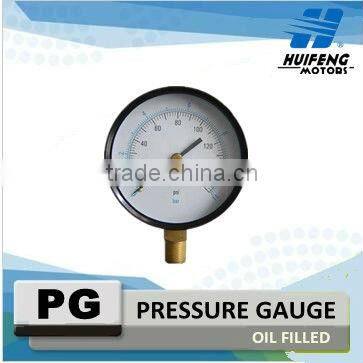

Pressure Gauge in Black Color With CE
Application: Used In Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. can used for severe service conditions where pulsation or vibration exist. Premium quality and long life.
Specifications
Size: 2.5"(63mm), 4"(100mm), 6"(150mm).
Accuracy: ±1.6% of full scales for 2.5"(63mm) ±1.0% of full scales for 4"(100mm),6"(150mm).
Range available ( no stock): -30"Hg~0 (vacuum) -30"Hg~0~200psi (compound) 0 ~ 15psi ~ 10000psi (pressure)
Working Pressure: Steady: 3/4 of full scale Fluctuating: 2/3 of full scale Short time : full scale
Operating Temperature: Ambient: -4°F to 140°F (-20°C to +60°C)
Size: |
1.5",2.0",2.5", 4", 6" (40MM,50MM,60MM,100MM,150MM) |
Pressure range: |
Stainless steel 316L ≤ 100 bar: C-type / ≥ 100 bar: Helical type |
Connection thread: |
PT,NPT,G1/4,M14*1.5,PT,NPT,G1/2,M20*1.5,G3/8…… |
Bourdon Tube: |
phosphor bronze, stainless steel |
Movement |
brass ,stainless steel |
Case: |
stainless steel |
Window (lens): |
Glass ,Safety glass |
Accuracy: |
1.0, 1.5, 2.0, 2.5.. |
Ambient temperature: |
'-40 to 60 °C |
Connection: |
Bottom (Vertical),back mount |
Pointer and dial: |
aluminum |
Oil-filled(Glycerin, Silicone oil) |
Media: max. 140°F (+60°C)
Service Fluid: Compatible gases and liquids
Housing: Stainless steel case and bayonet ring
Windows: Safety glass
Liquid filled: Glycerin
Bourdon Tube: Stainless steel
30"Hg~800psi C-Type, 800 psi to 6000 psi Coil-Type
Movement : Stainless steel C
onnection: Stainless steel 1/4" for 2.5"(63mm) 1/2" for 4"((100mm), 6"(150mm) Thread: BSP , BSPT, NPT ,or metric thread.
Dials and pointer: Aluminum White background, Black or black and red lettering. With customer logo is available.
Operating temperature: -20°C ~ 60°C (-4 °F ~ 140 °F)
Working pressure: Steady: 3/4 of full scale Fluctuating: 2/3 of full scale Short time: full scale
Scale Unit : Bar or Bar+Psi
Optional extras: Connection also can be Chrome or Nickel plated. Scale unit can use KPa , MPa,Kgf/cm2, kg/cm2, torr, atm. Liquid inside can be changed to be silicon oil. Liquid inside can be filled by customer. Fill cap can be changed to be with on-off type .
