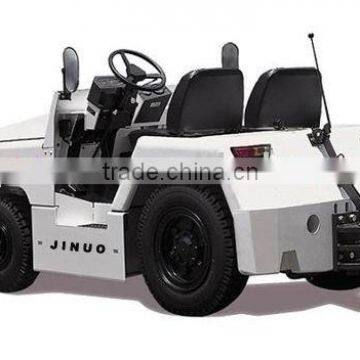

2.0T-2.5T Towing Truck2.0T-2.5T towing tractor Main Technical Specifications
Manufactures | JNC | ||||
Model | JNC20 | ||||
Draw Bar pull | KN(Ib) | 20 (44) | |||
performance | Max.towed weight at dry even concrete surface | With one trailer | Kg(Ib) | 26000(57200) | |
With a train of trailers | Kg(Ib) | 39000(85800) | |||
Driving | forward | Km/h(MPH) | 36(22.4) | ||
backward | Km/h(MPH) | 11.5(7.2) | |||
Max.gradeability | No load | % | 38 | ||
dimensions | Overall length(with coupler | mm(in) | 3085(121.5) | ||
Overall width | mm(in) | 1440(56.7) | |||
Overall height | mm(in) | 1420(55.9) | |||
Front tread | mm(in) | 1230(48.4) | |||
Rear tread | mm(in) | 1190(46.9) | |||
Min.truning radius | outer | mm(in) | 3500(138) | ||
Center height coupler | mm(in) | 450(17.7) | |||
Min.ground clearance | mm(in) | 130(5.1) | |||
tyre | Tyre size | front | 6.00-9-10PR(I) | ||
rear | 7.00-15-12PR(I) | ||||
weight | Truck weight(no load) | Kg(Ib) | 3300(7260) | ||
Weight distrbution | Front axle | Kg(Ib) | 1180(2596) | ||
Rear axle | Kg(Ib) | 2120(4664) | |||
engine | model | WF491Gj | JX493Q1 | ||
displacement | cm3(cu.in) | 2337(142.6) | 2771(169) | ||
Rated output | JIS | PS/rpm | 56/2400 | 77.6/3600 | |
SAE Gross | HP/rpm | 55/2400 | 76.5/3600 | ||
Rated torque | JIS | N.m/rpm | 162/1600 | 172/2000 | |
SAE Gross | Ft.Ib/rpm | 120.6/1600 | 128/2000 | ||
