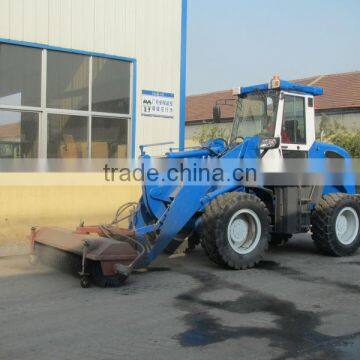

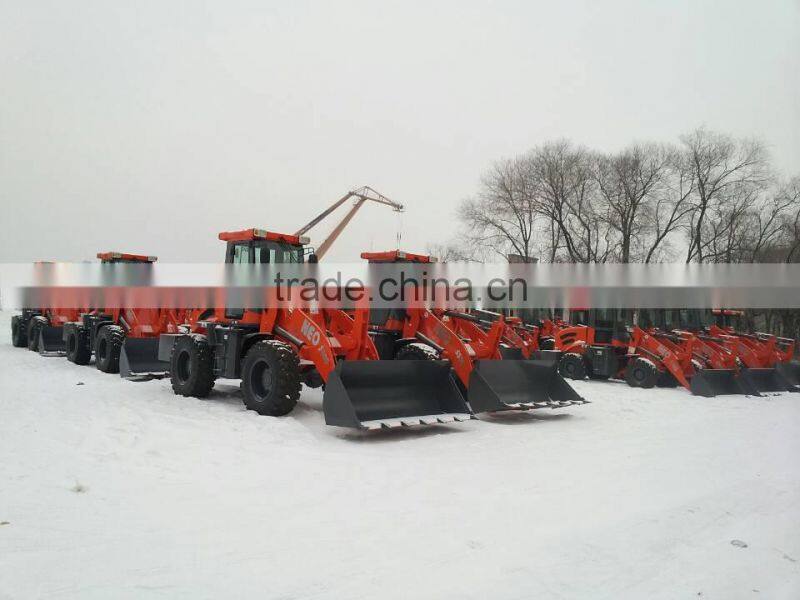

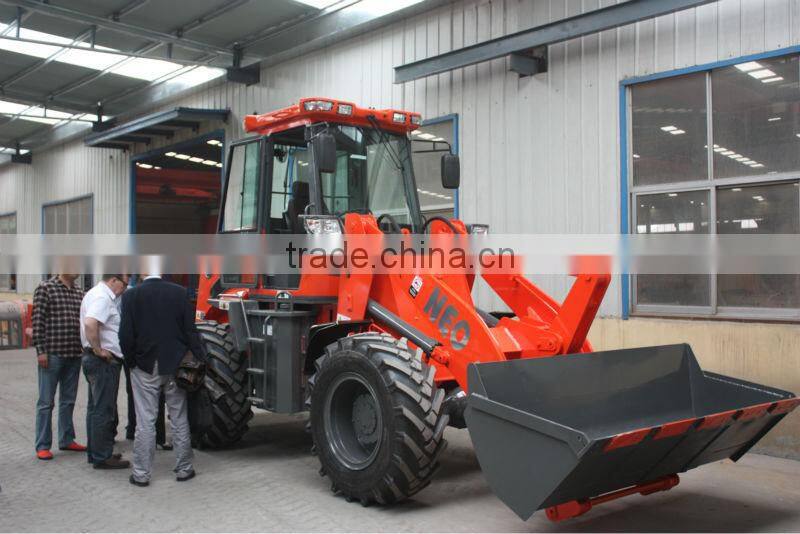

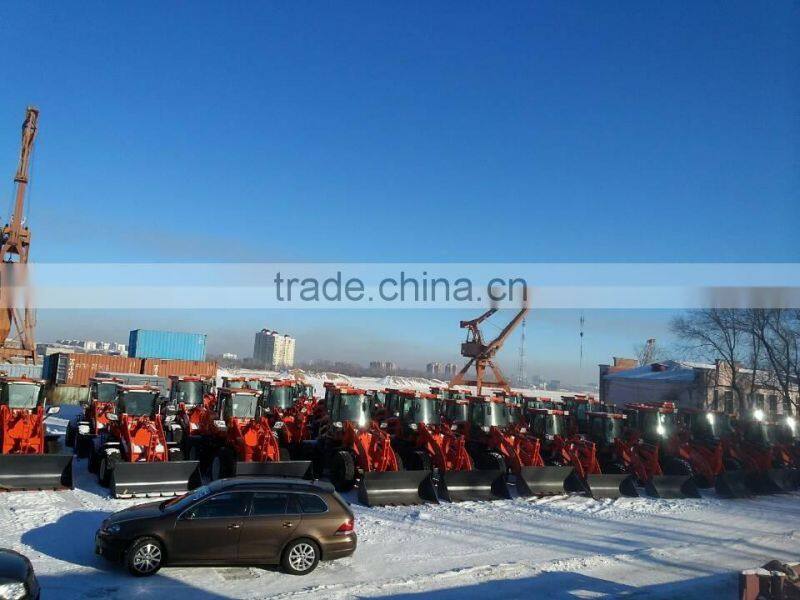

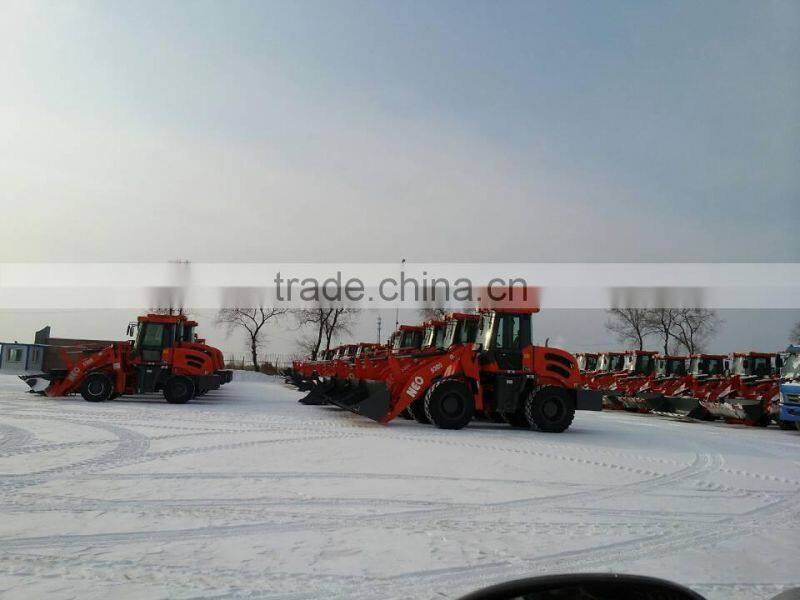

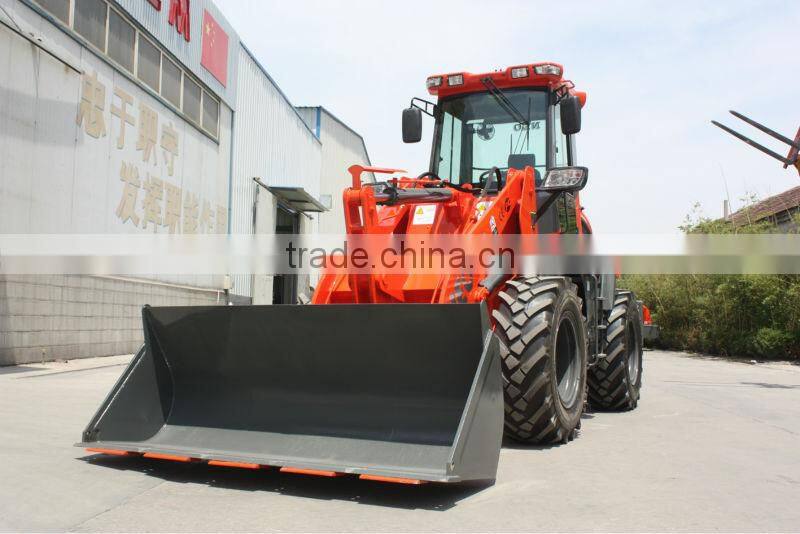

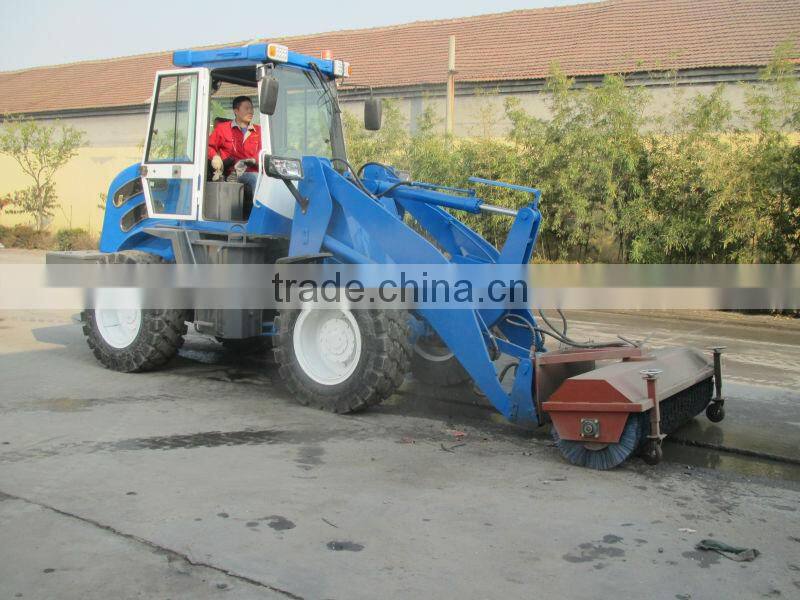

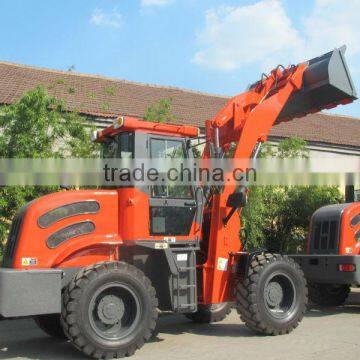

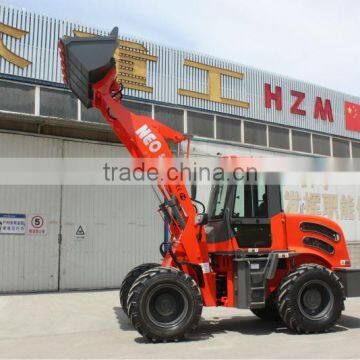

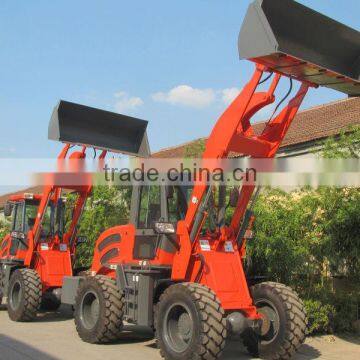

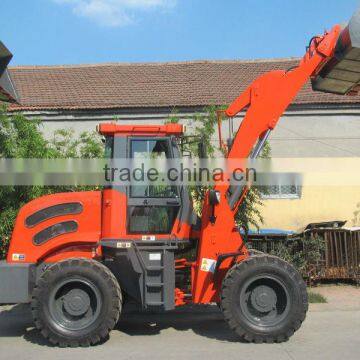

Qingzhou NEO S300 loader HZM s300 with joystick

Item

Parameters

Performance

1 .Rated Load

2800 kg

2. Total Weight

6200 kg

3. Rated Bucket Capacity

1.5 m³

4. Max. Tractive Force

61 KN

5. Max. Breakout Force

≥ 72 KN

6. Max. Grade ability

38°

7. Max. Dumping Height

3200mm/3500 mm

8. Max. Dumping Reach

1300 mm

9. Raising Time

≤ 6.0 s

10. Total Cycle Time

≤ 11.5 s

11. Overall Dimensions

6900*2050*2950 mm

12. Min. Turning Radius

3800 mm

Engine

13. ModeL

Weichai HF4108/CUMMINS 4BT3.9-C100/

YUCHAI Turbocharged Engine

14. Type

Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine

15. Rated Power

60 Kw/75kw/85 kW

16. Rated Speed

2400 rpm

17. Min. Fuel Consumption Ratio

≤ 210 g/kW·h

Transmission System

18. Hydraulic Torque Converter

ZL280 Split Hydraulic Torque Converter

19. Gear Shift

1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

20. Max. Speed

25 km/h

Drive Axle

21. Model of Axle

ZL20 Hub Reduction Axle (big)

22. Wheel Tread

1650 mm

23. Wheel Base

2600 mm

Drive

24. ModeL

4-wheel Drive

Hydraulic System

25. System Working Pressure

20 MPa/21MPa

26. Fuel Tank Capacity

100 L

Brake System

27. Service Brake

Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels

28. Parking Brake

Hand Flexible Shaft Controlled Disc Brake

Tyre

29. Type Specification

16/70-24

30. Front Tyre Pressure

0.40 Mpa

31. Rear Tyre Pressure

0.35 Mpa
