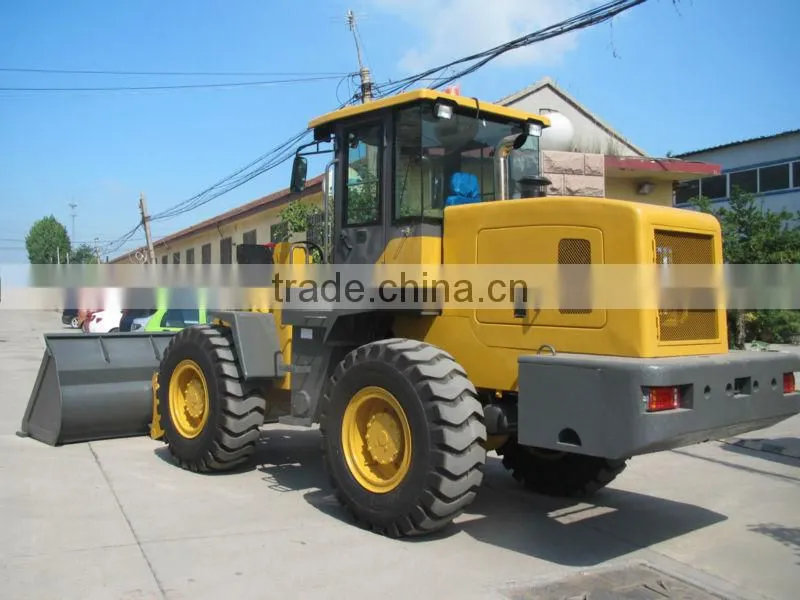

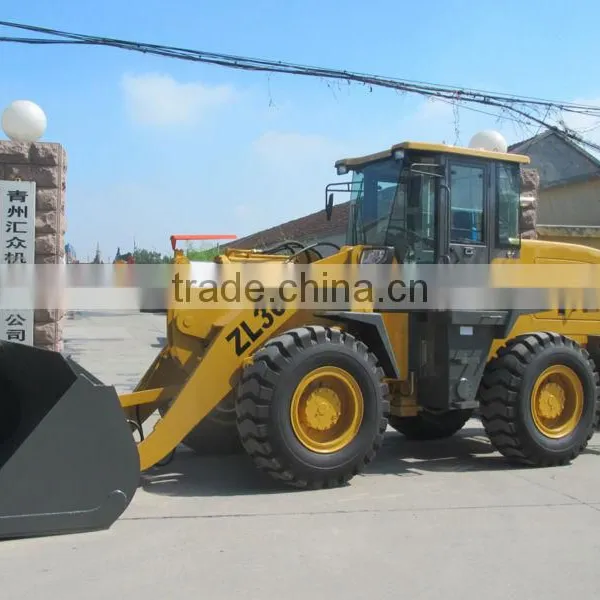

Help CenterCUMMINS ZL30F Wheel Loader Made in China
Related Products
-
NEO HZM S300 Russia Hot Sale Wheel Loader With CENegotiableMOQ: 1 Set -
HZM 3tON 930 Wheel Loader With ceNegotiableMOQ: 1 Set
-
Wheeled Loader Hot SaleNegotiableMOQ: 1 Piece
-
Qingzhou Loader Hot Sale for RussiaNegotiableMOQ: 1 Piece
-
Zl30 Hot Sale Strong Power Push Snow Shovel Wheel Loader With CENegotiableMOQ: 1 Set
Specifications
*CE/ISO9001:2008 wheel loader with Deutz/cummins engine*WEICHAI Engine or Cummins engine
*Floating position valve
Specifications of JN936 front loader
Specification |
overall weight(kg) |
9500 |
L×W×H(mm) |
7050×2430X3120 |
|
rated bucket capacity(m3) |
1.7 |
|
Rated load(kg) |
3000 |
|
Maximum dump height (mm) |
3020/3250 |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
138 |
|
Engine |
Model |
WEICHAI Deutz TD226B/Cummins 6BT5.9-C125 |
Type |
In line,direct injection,four-stroke,liquid cooled |
|
|
Rated power(kw) |
92kw |
|
Rated speed(r/min) |
2200 |
|
Transmission system |
Model of torque converter |
YJ320B |
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Distribution of work valve |
DF25 |
Working pump |
CBGj2100,CBGq2100 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
lift and right 36.5±1° |
|
Min turning radius(mm) |
5862 |
|
Brake system |
Brake type |
air-break brake |

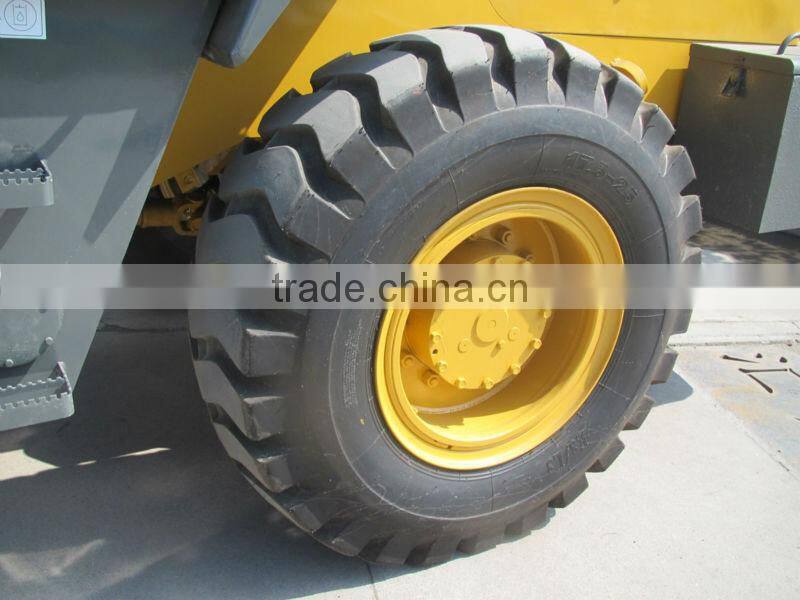

Tyres |
Standard tyres |
17.5-25 |
|
|
Why choice this wheel loader and our factory :
1. JN936 wheel loader with Xinchai 4 cylinders EURO III and EPA III approved
Diesel engine;
2. JN936 wheel loader with Floating position valve ,could avoid unnecessary hurts
From Hard stone .
3. JN936 wheel loader with Lock on lift arms and steering cylinders ,could avoid
Stealed .
4. JN936 with good control system -- Hydraulic Joystick and Quick hitch could save
Work time ,also could get more efficiency .
A: We have many years export experience ,could come over different difficults on
Custome .
B: We specialized in wheel loader and metal parts produce ,have the whole
assembly line to produce wheel loader .
C: Our Market spread all over the world ,could make changes for different areas .
D: We have the foreign engineers to design the wheel loader for our market ,could
Follow the worlds' Change .
