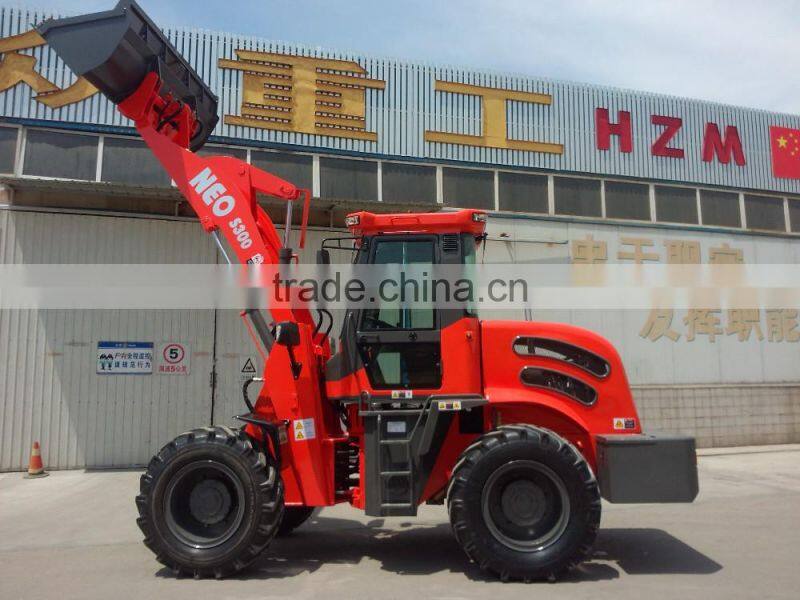

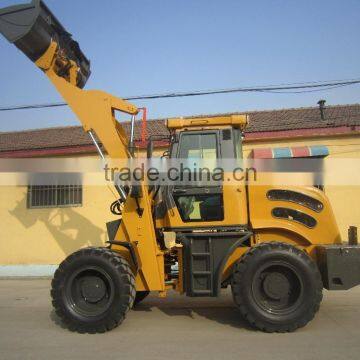

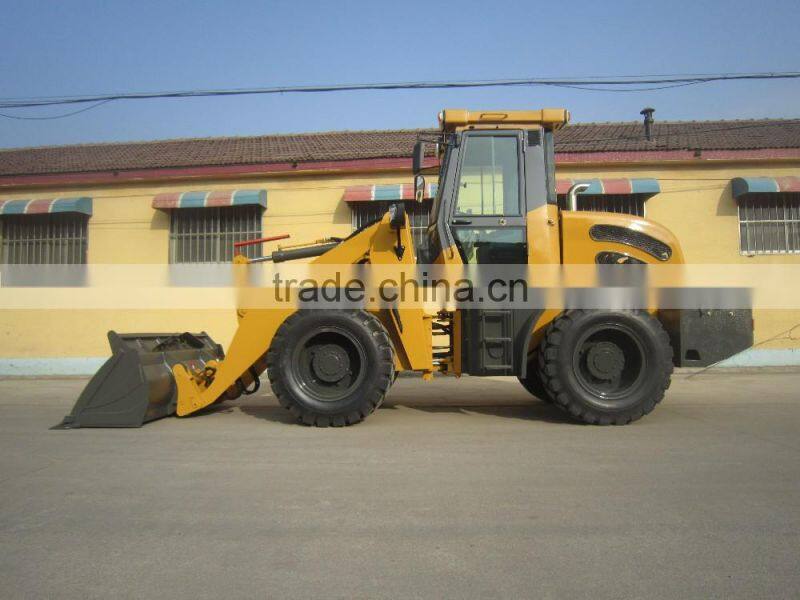

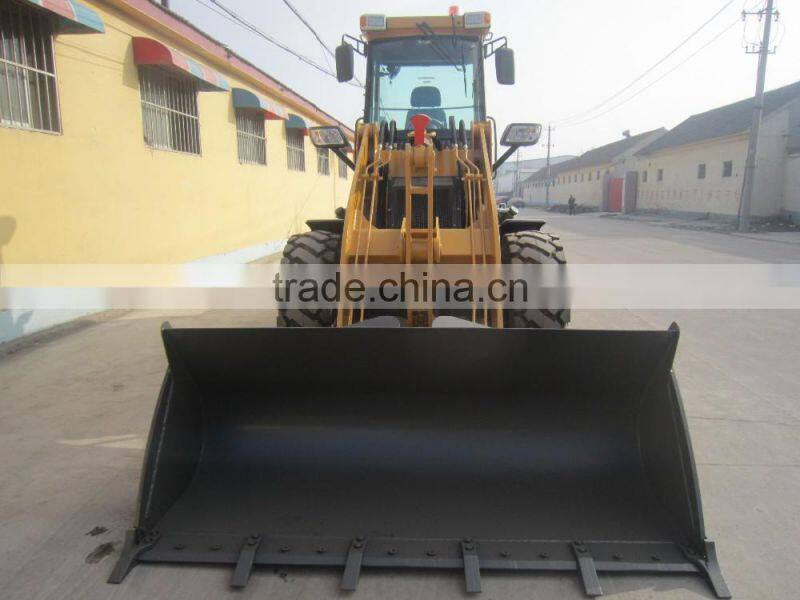

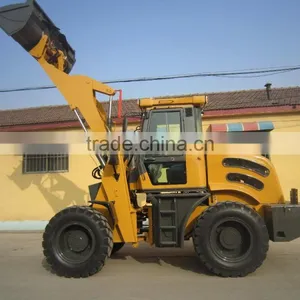

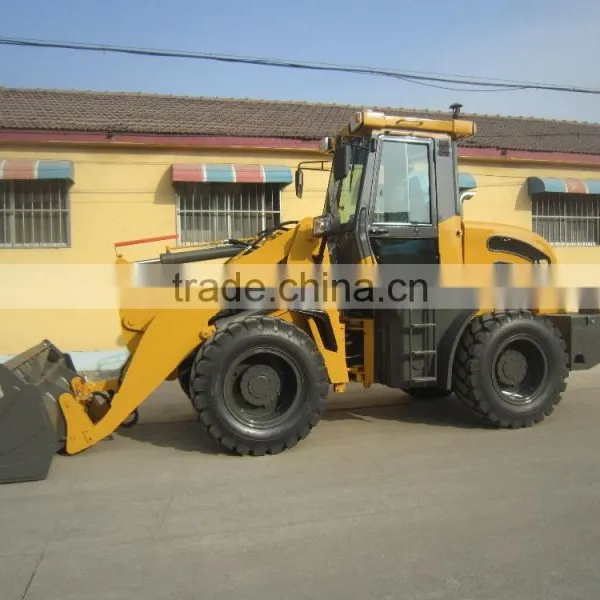

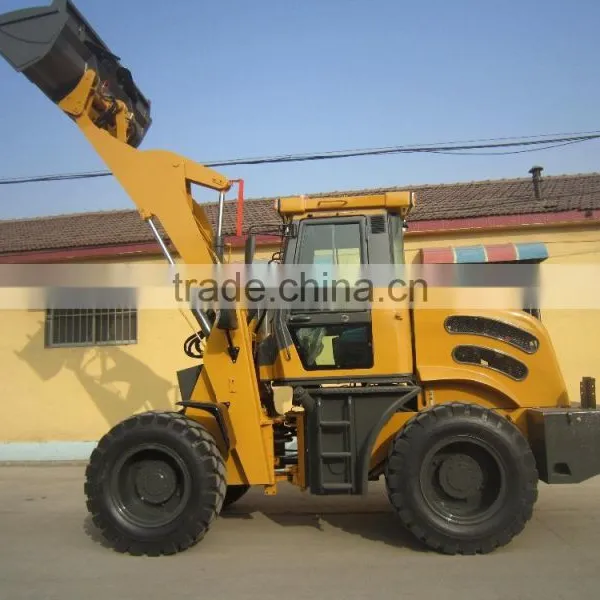

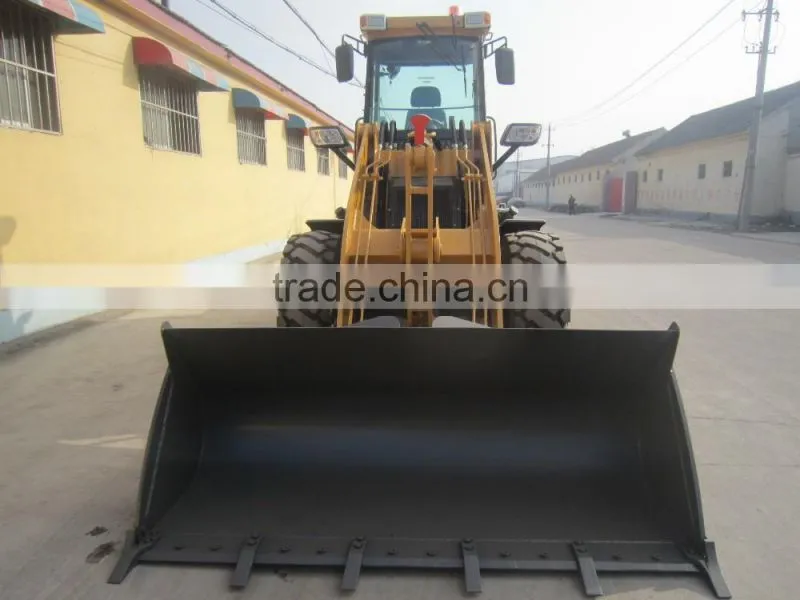

Help CenterZL28F 2.8ton Farm Tractors Mini Loader With 4in1,hay Spears,stick Rake
Related Products
-
3ton LW Wheel Loader Hot in Russian Market With ceNegotiableMOQ: 1 Set -
HZM 930S 3ton Front End Loader for Russian MarketNegotiableMOQ: 1 Set
-
Qingzhou 2.8t Zl28 Front End Loader With YTO EngineNegotiableMOQ: 1 Set
-
HZM932 Front End Loader With ceNegotiableMOQ: 1 Set
-
Weifang 3ton HZM S300 Pay Loader With CENegotiableMOQ: 1 Set
1.Streamlined appearance design,elegant and generous.
2.YTO(85KW)strong power engine with a stable performance.
3.Fully hydraulic steering systm,easy to operation
4.New sealing cab,Grammer seat with a comfortable operating environment.
5.Double cabin heater,double brake pump.
6.New style tires can adapt for different working environment
7. LED lamp,varta battery,adjustable seat,six air outlet cab heater,electric joystick,rear view camera etc.
1.Streamlined appearance design,elegant and generous.
2.YTO(85KW)strong power engine with a stable performance.
3.Fully hydraulic steering systm,easy to operation
4.New sealing cab,Grammer seat with a comfortable operating environment.
5.Double cabin heater,double brake pump.
6.New style tires can adapt for different working environment
7. LED lamp,varta battery,adjustable seat,six air outlet cab heater,electric joystick,rear view camera etc.
Specification |
overall weight(kg) |
6300KG |
L×W×H(mm) |
6700x2150x2900 |
|
rated bucket capacity(m3) |
1.2 |
|
Rated load(kg) |
2800 |
|
Maximum dump height (mm) |
3200/3500 |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
48.8KN |
|
Engine |
Model |
YT4a2z-24 |
Type |
In-line arrangement, direct injection, Water cooling, four-stroke |
|
|
Rated power(kw) |
85kw |
|
Rated speed(r/min) |
2400 |
|
Transmission system |
Model of torque converter |
YJ280 |
Type |
single grade three componets |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Distribution of work valve |
DF20.2C |
Working pump |
CBF18 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
35±1° |
|
Min turning radius(mm) |
4500 |
|
Brake system |
Brake type |
Air assisted oil disc on four wheel |
Tyres |
Standard tyres |
16/70-24 |
Optional wide tyres |
16/70-24 snow tires |

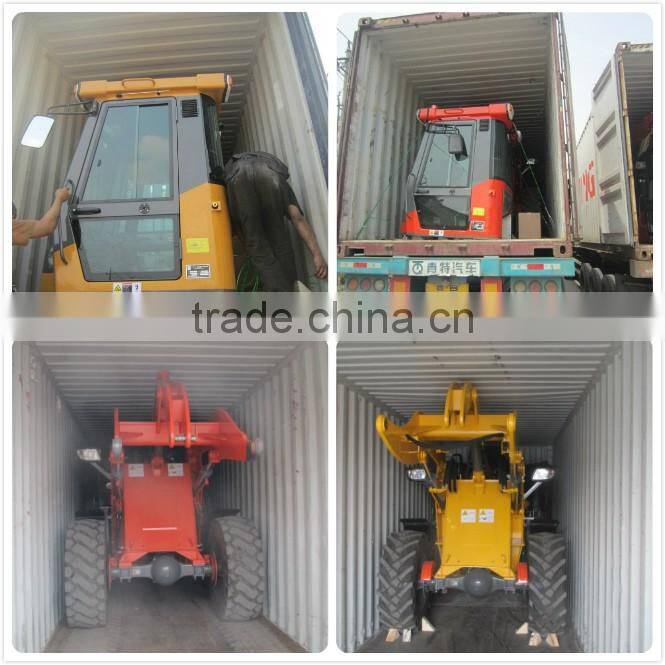

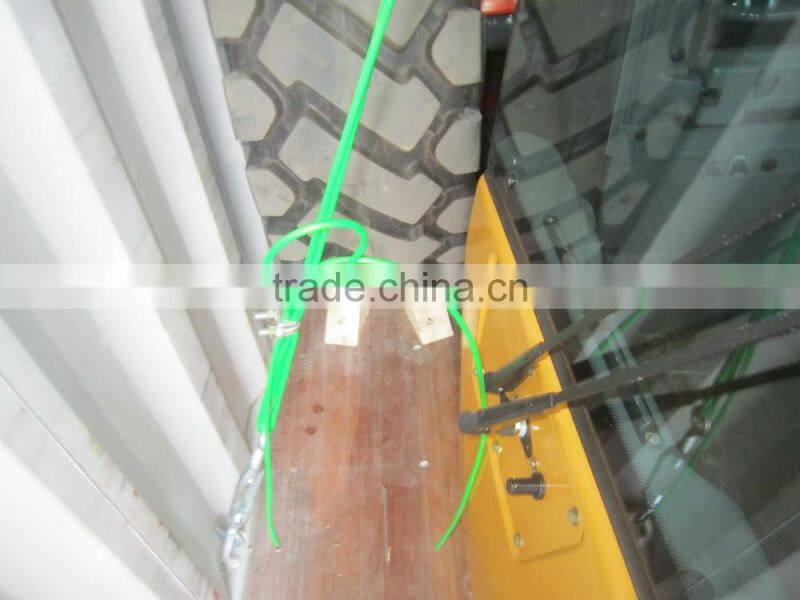

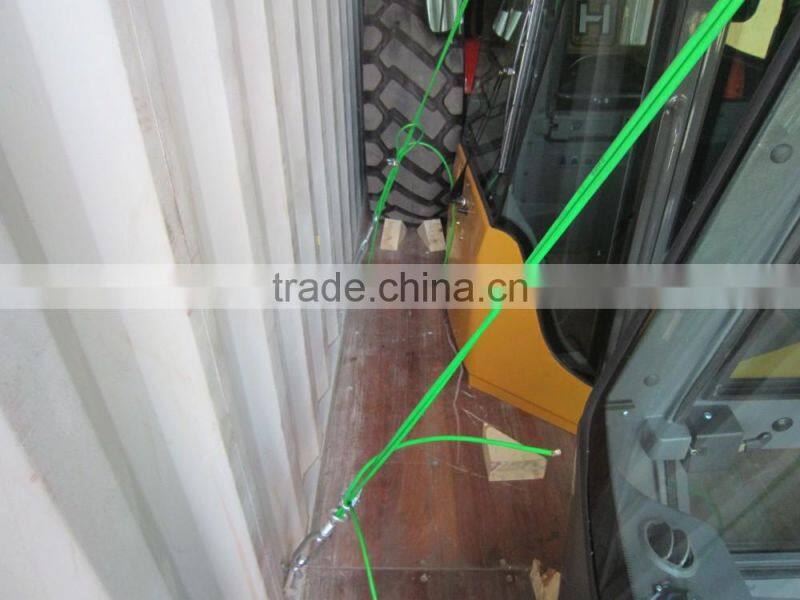

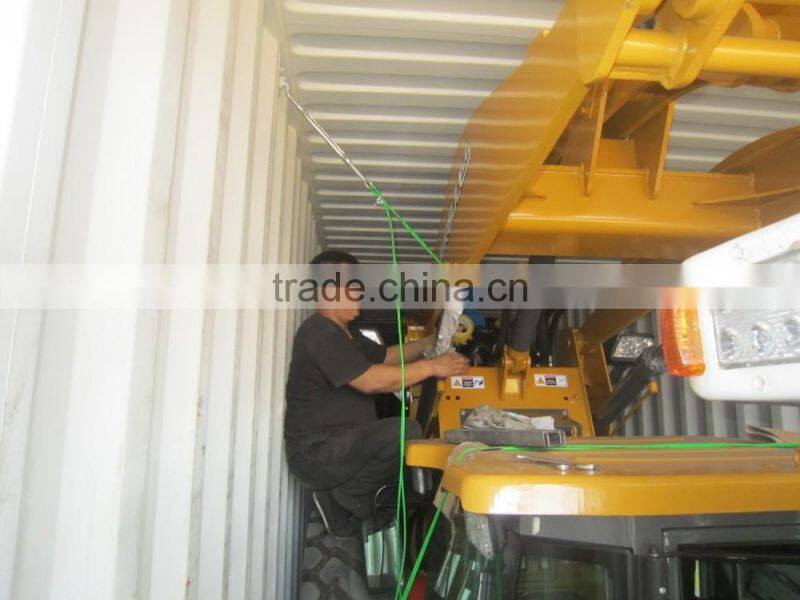

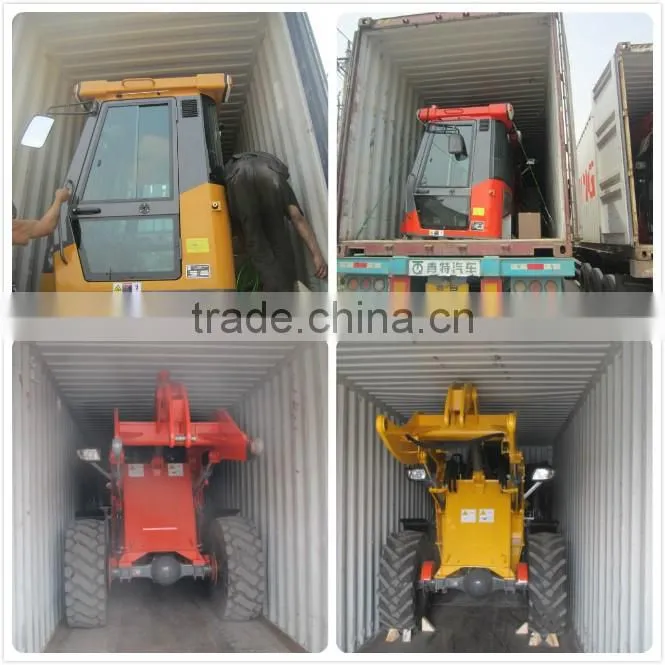

This model wheel loader can be put 2units/40HQ Shipping from Qingdao port
This model wheel loader can fit various attachments like pallet fork,4in1 bucket,hay spears,high tip bucket,lift arm,auger,lg grapple,snow bucket,snow blade etc.
In the warranty period,we will provide the broken parts by express,before delivery we will take some free parts like safety valve,tool box,bulb,brake pad,brake switch,filter,operator book,engine book etc.
Name:Bill wang
Phone number:86-15965086077
Skype ID:kashenkeer
QQ:493803768
Company:Qingzhou Huizhong Machinery Co.,ltd
Address:Yuhua IndustrialPark, Beihuan load, Qingzhou City,Shandong Province, China
