JN920 HZM920 920 Breaking Hammer Wheel Loader

Name: JN920 HZM920 920 Breaking Hammer Wheel Loader
Brand: HUIZHONG
SKU: 143316042
Availability: InStock

Qingzhou Huizhong Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

ZL20F

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number ZL20F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5400x1960x2810mm

Rated Load 2000kg

Certification CE / BV for factory

Warranty 1 year, one year

After-sales Service Provided Overseas third-party support available

Specifications

more advanced technology
multi fuction use
easy fitch
various size to choose
use widely

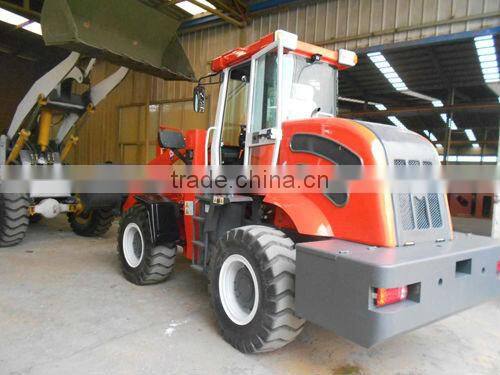

HZM ZL20 wheel loader

Specification	overall weight(kg)	5600KG
	L×W×H(mm)	5400X1960X2810
	rated bucket capacity(m³)	1.3
	Rated load(kg)	2000
	Maximum dump height (mm)	3250
	Bucket indicator	Yes
	Max. breakout force(KN)	48.8KN
Engine	Model	YTR4108G92
	Type	In-line arrangement, direct injection, Water cooling, four-stroke
	Rated power(kw)	60kw
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	YJ280
	Type	single grade three componets
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF20.2C
Hydraulic system	Working pump	CBF18
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	4500
Brake system	Brake type	Air assisted oil disc on four wheel
Tyres	Standard tyres	16/70-20
