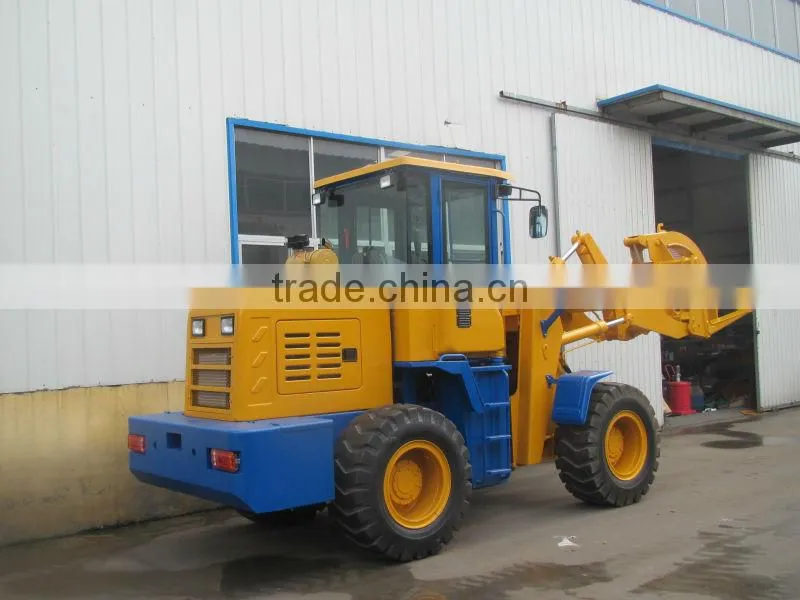

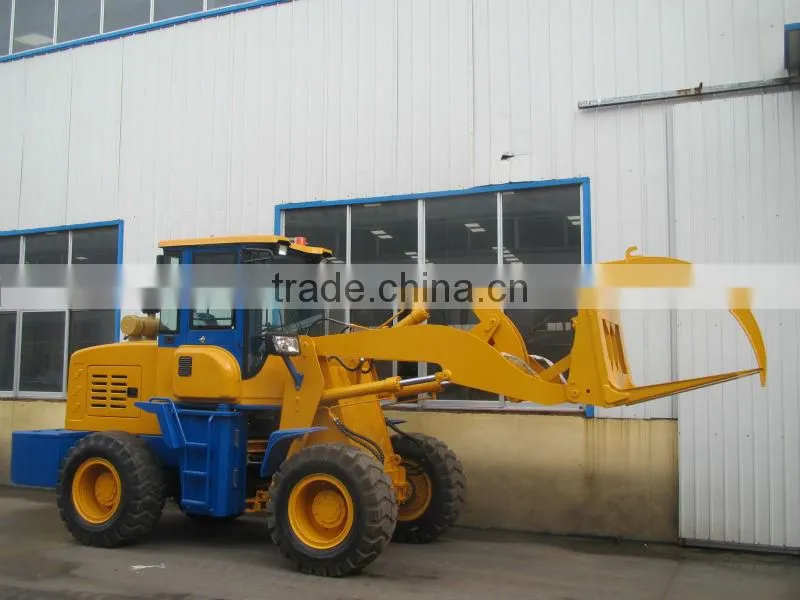

Help CenterChina Qingzhou 2700kg Rated Loading ZL27 Wheel Loader With Wood Glabber and Joystick
Related Products
-
China HZM Front End Loader Zl20 With CENegotiableMOQ: 1 Set -
Huizhong Carraro CE Front End Loader JN920 With Pallet ForkNegotiableMOQ: 1 Set
-
2ton Front End Loader Zl20 With Pilot ControlNegotiableMOQ: 1 Set
-
Popular 2ton Wheel Loadr Zl20F With Cummins,ceNegotiableMOQ: 1 Set
-
China Heavy Equipment Zl20 Front Loaders With CENegotiableMOQ: 1 Set
Specifications
CE small wheel loaderFully hydraulic steering
New design cab
Various working devices of attachment available
optional arm
Specification |
overall weight(kg) |
4600 |
L×W×H(mm) |
5700x1830x2730 |
|
rated bucket capacity(m3) |
0.9 |
|
Rated load(kg) |
1800 |
|
Maximum dump height (mm) |
3200/3700/4500 |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
43 |
|
Engine |
Model |
weichai4102G41 |
Type |
In line,direct injection,four-stroke,liquid cooled |
|
|
Rated power(kw) |
56kw |
|
Rated speed(r/min) |
2200 |
|
Transmission system |
Model of torque converter |
YJ265 |
Type |
Single-stage,3 elements |
|
Gearbox type |
Axial full power shift transmission |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Distribution of work valve |
DF15.2C |
Working pump |
CBG2040 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
lift and right 35±1° |
|
Min turning radius(mm) |
4200 |
|
Brake system |
Brake type |
Air assist oil disc on four wheel |
Tyres |
Standard tyres |
16/70-20 |
|
