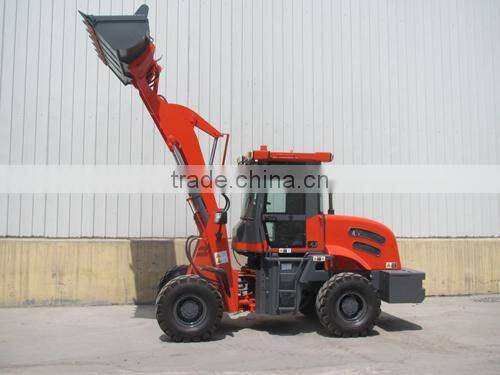

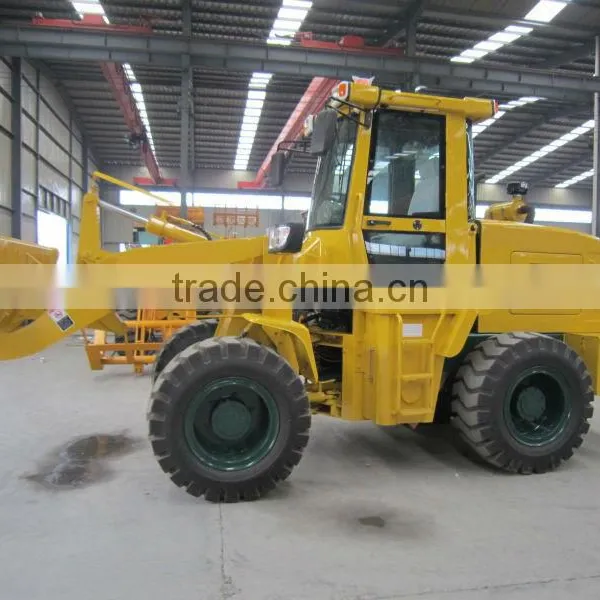

Multifunction 4WD CE Wheel Loader HZM920 With 2ton Rated Load

Name: Multifunction 4WD CE Wheel Loader HZM920 With 2ton Rated Load
Brand: HUIZHONG
SKU: 143315976
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

HZM920

Qingzhou Huizhong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number HZM920

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5700X1830X2730 (mm)

Rated Load 2200kg

Certification CE ISO9001:2008

Specifications

*Fully hydraulic steering

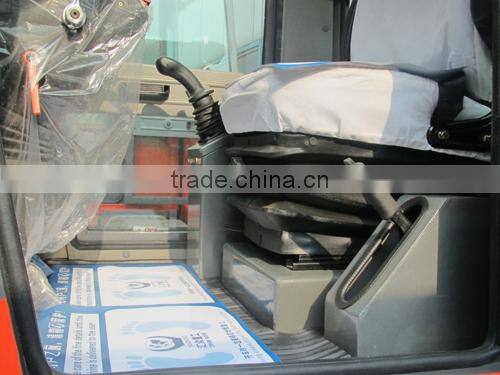

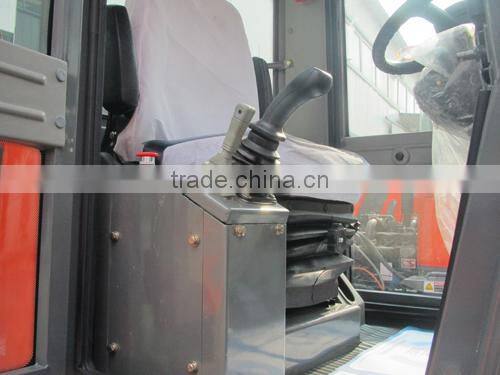

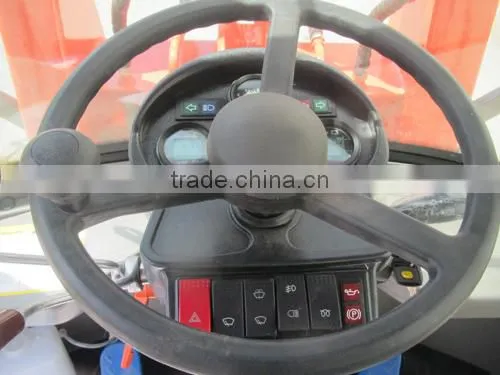

*New design cab

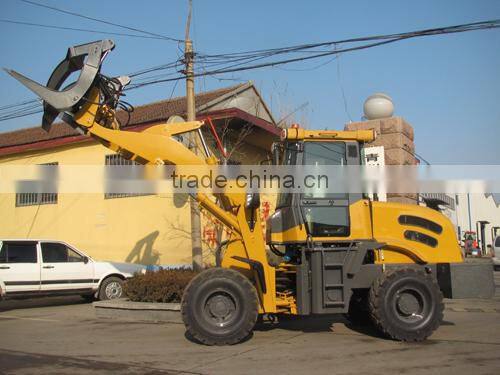

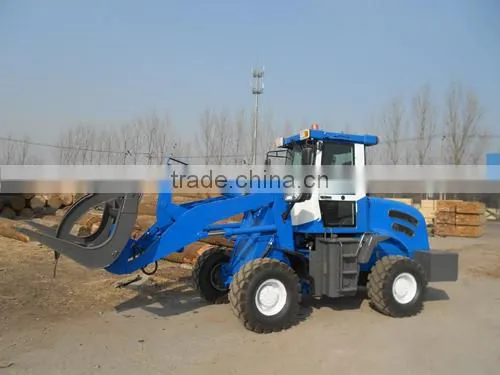

*Various working devices of attachment available
*optional a

Specification	overall weight(kg)	4100
	L×W×H(mm)	5700x1830x2730
	rated bucket capacity(m³)	0.9
	Rated load(kg)	2000
	Maximum dump height (mm)	3200/3700/4500
	Bucket indicator	Yes
	Max. breakout force(KN)	43
Engine	Model	WeichaiZHAZG1
	Type	In line,direct injection,four-stroke,liquid cooled
	Rated power(kw)	56kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ265
	Type	Single-stage,3 elements
	Gearbox type	Axial full power shift transmission
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF15.2C
Hydraulic system	Working pump	CBG2040
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	lift and right 35±1°
	Min turning radius(mm)	4200
Brake system	Brake type	Air assist oil disc on four wheel

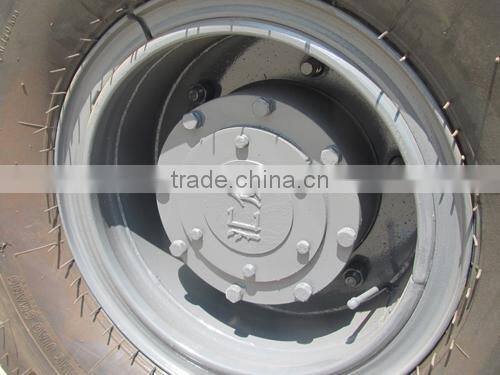

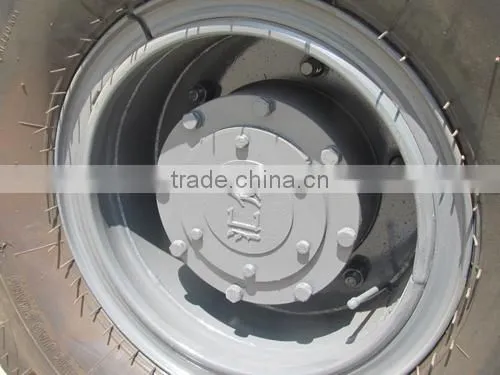

Tyres	Standard tyres	23.5/70-16
