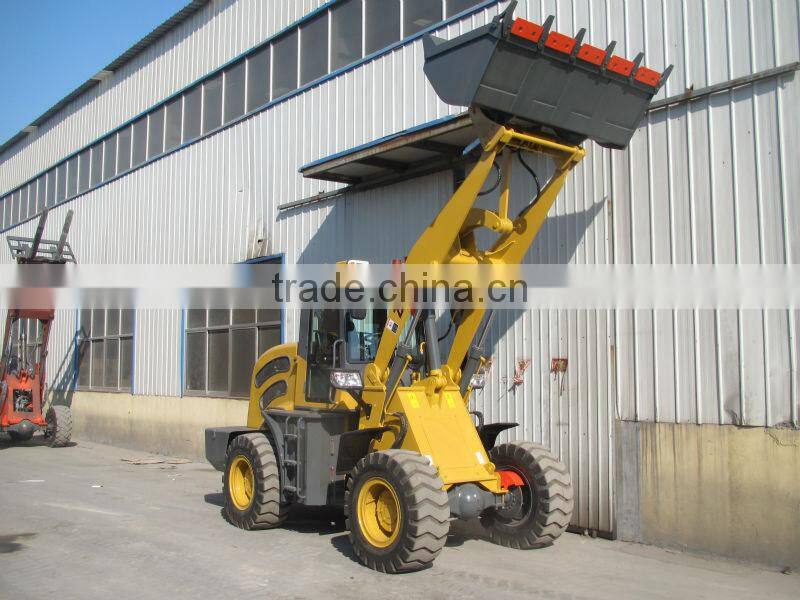

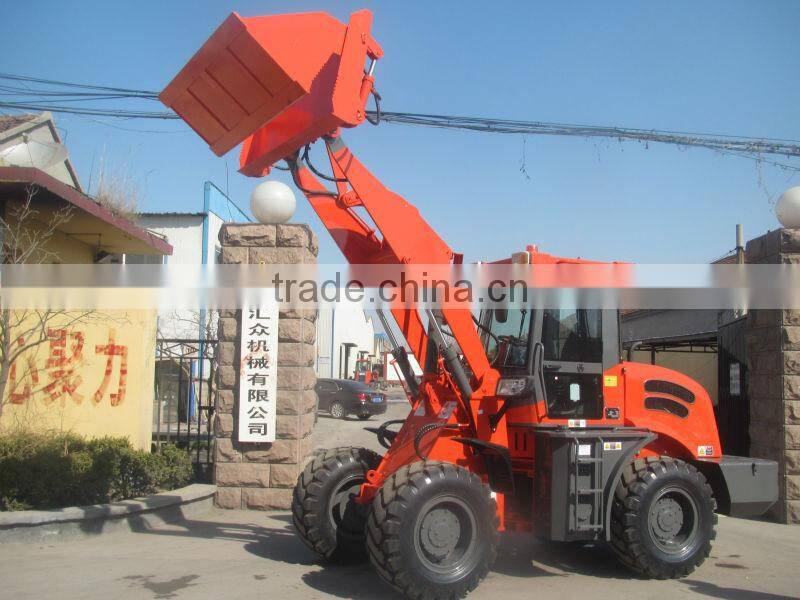

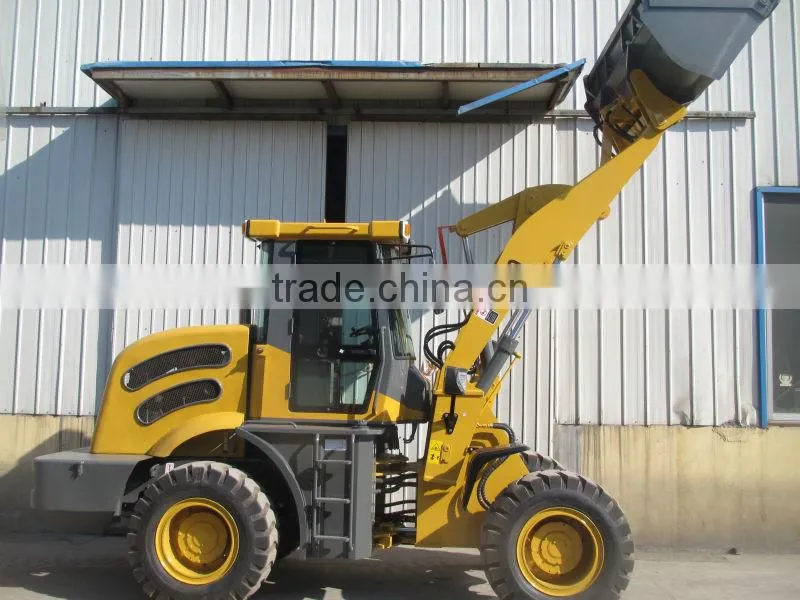

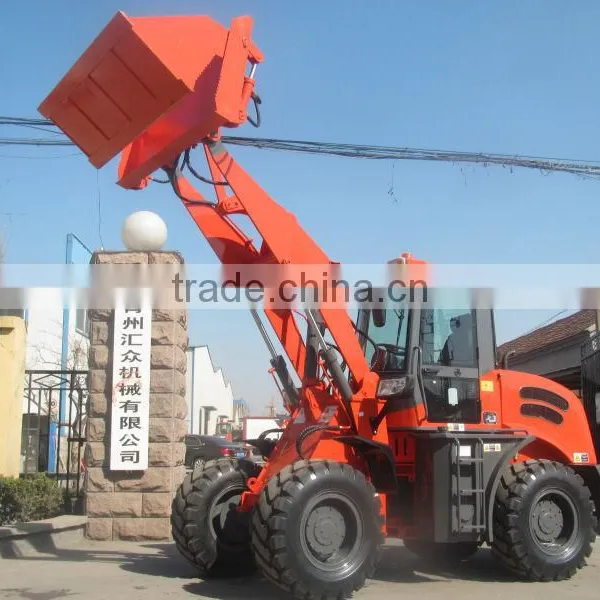

ZL20 Mahindra Front Loader 2t Capacity HZM920

Name: ZL20 Mahindra Front Loader 2t Capacity HZM920
Brand: HUIZHONG
SKU: 143315962
Availability: InStock

Qingzhou Huizhong Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

HZM 920

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number HZM 920

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 6590x2050x2900

Rated Load 2000kg

Specifications

2 ton middle wheel loader with CE ,cummins,joystick
*Hydraulic quick change
*Various optional tools:pallet fork

HZM920 wheel loader with CUMMINS ENGINE

Specification	overall weight(kg)	5500
	L×W×H(mm)	5950×1900×2850
	rated bucket capacity(m³)	1.1
	Rated load(kg)	2000
	Maximum dump height (mm)	2850
	Bucket indicator	Yes
	Dump distance(mm)	1084
	Total time	11.3s
Engine	Model	WEICHAI 4RNSG3/CUMMINS 4BT3.9-C100
	Type	Vertical, In-line , Water cooling, four-stroke diesel engine
	Rated power(kw)	60kw/75KW
	Rated speed(r/min)	2400/2400
	Normal fuel consumption	242g/kw.h
	Total displacement	4.4L
	Max.torque	261.7N.m
Transmission system	Model of torque converter	YJ280
	pattern	3-element single stage
	Transmission type	Full-powershift, countershaft type
	Gear shift	2 gears ahead,2 gear astern
	Max. travel speed	24km/h
Hydraulic system	Working pressure	16Mpa
	Implement pump	CBF25
	System working pressure	16MPA
	Distribution device model	DF20.2C
Steering system	Type	Articulated and hydraulic steering
	Min turning radius(mm)	4500
	Max. turning angle	35°±1
Tyres	Standard tyres	16/70-20
