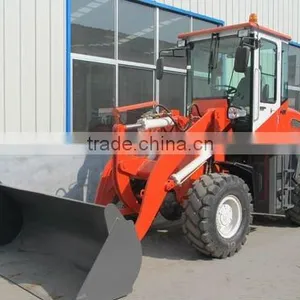

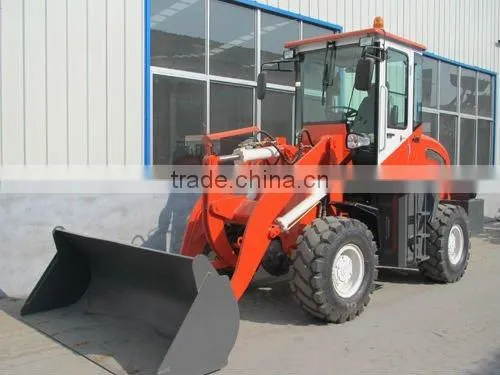

ZL18F strong power joystick wheel loader for sale

Specification

overall weight(kg)

4400

L×W×H(mm)

5700x1830x2730

rated bucket capacity(m³)

0.9

Rated load(kg)

1800

Maximum dump height (mm)

3200/3700/4500

Bucket indicator

Yes

Max. breakout force(KN)

43

Engine

Model

                                    weichai4102

Type

      In line,direct injection,four-stroke,liquid cooled

Rated power(kw)

47kw

Rated speed(r/min)

2200

Transmission system

Model of torque converter

YJ265

Type

                          Single-stage,3 elements

Gearbox type

    Axial full power shift transmission

Gear shift

       2 gears ahead,2 gear astern

Hydraulic system

Distribution of work valve

DF15.2C

Working pump

 CBG2040

Steering system

Type

Articulated hydraulic steering

Max. turning angle

                                 lift and right 35±1°

Min turning radius(mm)

4200

Brake system

Brake type

Air assist oil disc on four wheel

Tyres

Standard tyres

 22.5-16
