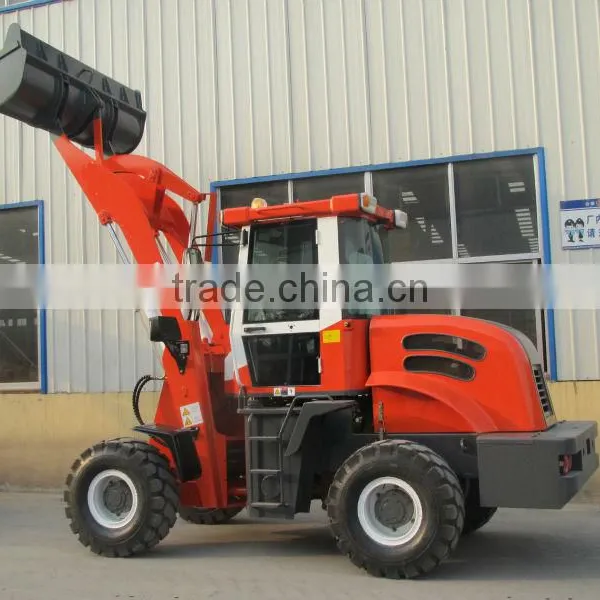

HZM NEO S200 mini wheel loader with best price,ce and quick htich

Specification

overall weight(kg)

4400

L×W×H(mm)

5600x1770x2660

rated bucket capacity(m³)

0.9

Rated load(kg)

1800

Maximum dump height (mm)

3150

Bucket indicator

Yes

Max. breakout force(KN)

43

Engine

Model

                    weifang4102Y4

Type

In line,direct injection,four-stroke,liquid cooled

Rated power(kw)

47kw

Rated speed(r/min)

2200

Transmission system

Model of torque converter

YJ240

Type

        Single-stage,Single-phase,3 elements

Gearbox type

 Axial full power shift transmission

Gear shift

2 gears ahead,2 gear astern

Hydraulic system

Distribution of work valve

ZL15.2

Working pump

CBG1032A

Steering system

Type

Articulated hydraulic steering

Max. turning angle

                      lift and right 36±1°

Min turning radius(mm)

4200

Brake system

Brake type

Air-break brake

Tyres

Standard tyres

 17.5-16
