1.Streamlined appearance design,elegant and generous.
2.Fully hydraulic steering systm,easy to operation
3.New sealing cab,Grammer seat with a comfortable operating environment.
4.Double cabin heater,double brake pump.
5. LED lamp,varta battery,adjustable seat,six air outlet cab heater,electric joystick,rear view camera etc.
Specification | overall weight(kg) | 4500 |
L×W×H(mm) | 5800x1900x2700 | |
rated bucket capacity(m3) | 0.9 | |
Rated load(kg) | 1800 | |
Maximum dump height (mm) | 3200 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model | weichai4102/cummins |
Type | In line,direct injection,four-stroke,liquid cooled | |
Rated power(kw) |
56kw | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | YJ265 |
Type | Single-stage,3 elements | |
Gearbox type | Axial full power shift transmission | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | DF15.2C |
Working pump | CBG2040 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | lift and right 35±1° | |
Min turning radius(mm) | 4200 | |
Brake system | Brake type | Air assist oil disc on four wheel |
Tyres | Standard tyres | 23.5/70-16 |
|

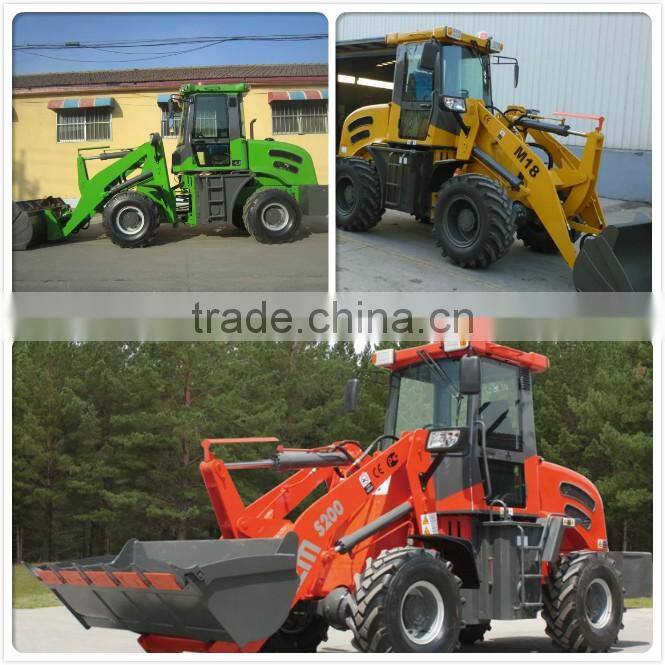

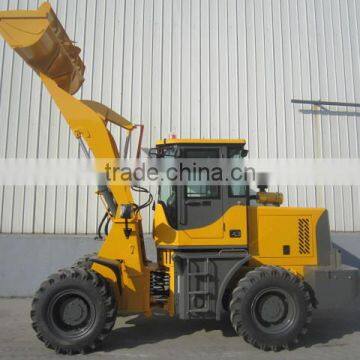

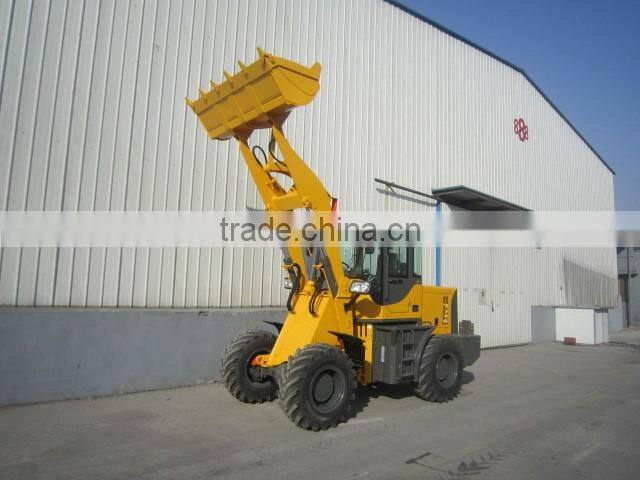

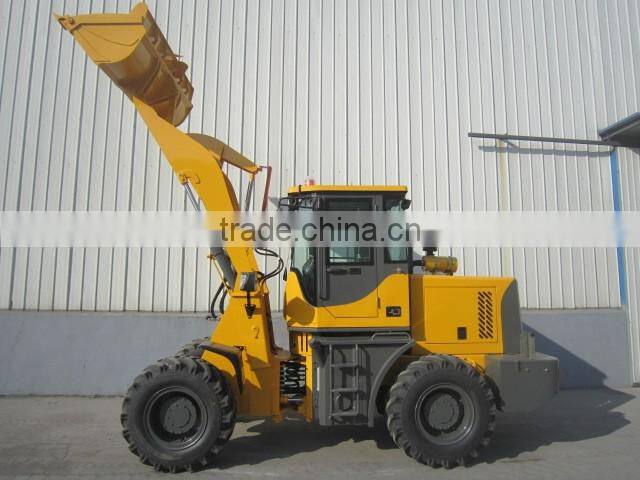

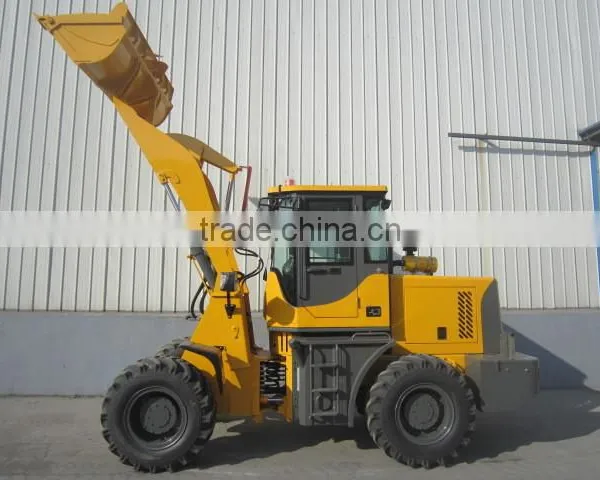

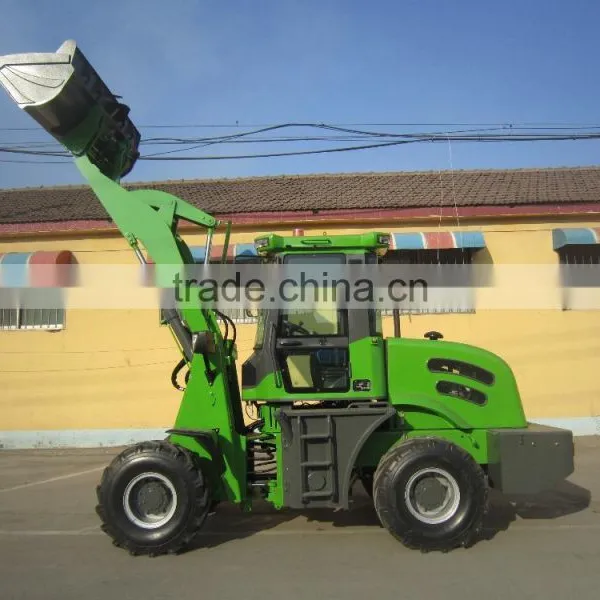

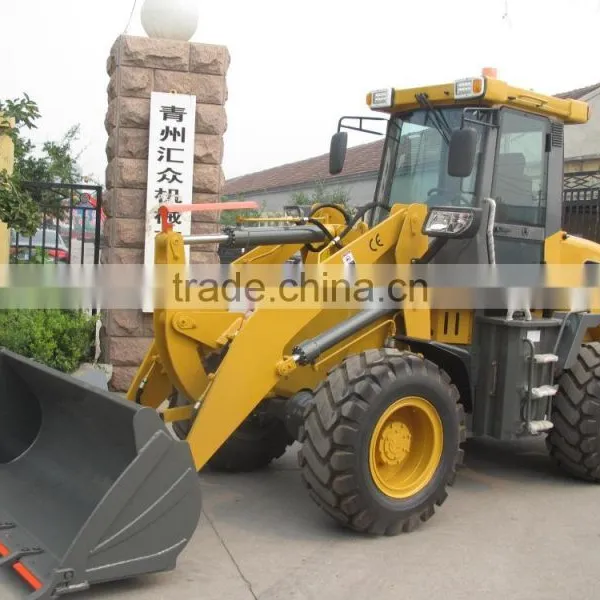

loader show

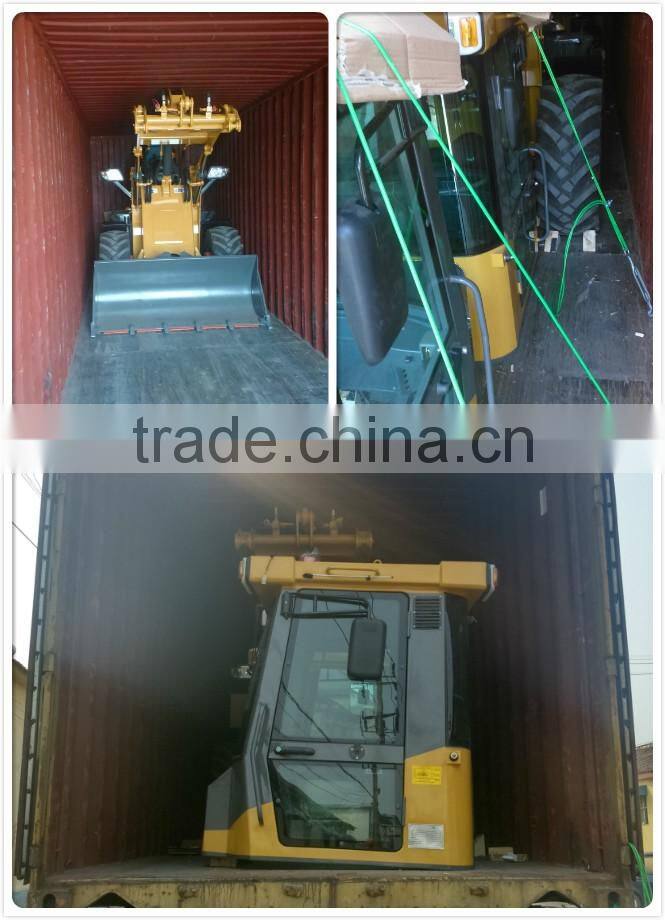

This model loader ---1unit/20GP;3units/40HQ Shipping from Qingdao port.
In the warranty period,we will provide the broken parts by express,before delivery we will take some free parts like safety valve,tool box,bulb,brake pad,brake switch,filter,operator book,engine book etc.
Name:Bill wang
whatsapp:86-15965086077
Skype ID:kashenkeer
QQ:493803768
Company:Qingzhou Huizhong Machinery Co.,ltd
Address:Yuhua IndustrialPark, Beihuan load, Qingzhou City,Shandong Province, China
