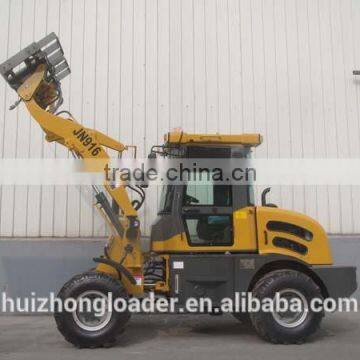

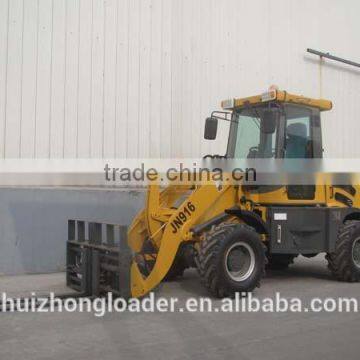

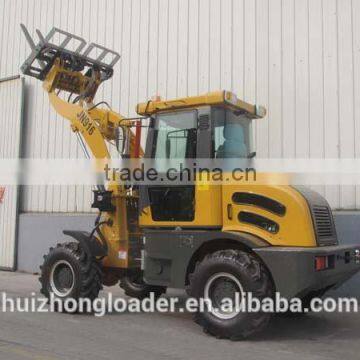

Qingzhou HZM Brand HZM916 Wheel Loader

US$ 9,100 - 9,100 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

HZM

Model Number:

HZM916

Qingzhou Huizhong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HZM

Model Number HZM916

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5280x1700x2850mm

Rated Load 1600kg

Certification CE ISO9001:2008

Warranty 12 months after received wheel loader

After-sales Service Provided Overseas third-party support available

Product Description

HZM916 WHEEL LOADER SPECIFICATION

1.HZM916 WHEEL LOADER CAN CHOICE EURO3 / EURO4 / EPA3 / EPA4 ENGINS AND NORMAL CHINA ENGINES ;

2.HZM916 WHEEL LOADER CAN CHOICE ISUZE AXLE OR HUB REDUCTION AXLE ;

3.HZM916 WHEEL LOADER CAN CHOICE DIFFERENT ATTACHMENTS - SNOW BUCKET / FORKS / SWEEPER AND SO ON ;

4.HZM916 WHEEL LOADER CAN CHOICE NORMAL TIRES AND AGRICULTURAL TIRES ;

5.HZM916 WHEEL LOADER CAN CHOICE DIFFERENT RATED LOAD LINE :1.2TON -1.6TON .ALL FOLLOW YOUR REQUESTS ;

6.HZM916 WHEEL LOADER CAN CHOICE DIFFERENT COLOR ,JUST SHOW ME YOU WANT ,WE DO IT ;

AND SO ON ---

Specification	overall weight(kg)	3800
	L×W×H(mm)	5280×1700x2850
	rated bucket capacity(m³)	0.5-0.9
	Rated load(kg)	1600
	Maximum dump height (mm)	2850
	Bucket indicator	Yes
	Max. breakout force(KN)	43
Engine	Model	EuroIII engine
	Type	In-line arrangement,Water cooling, four-stroke
	Rated power(kw)	36.8kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ240
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern

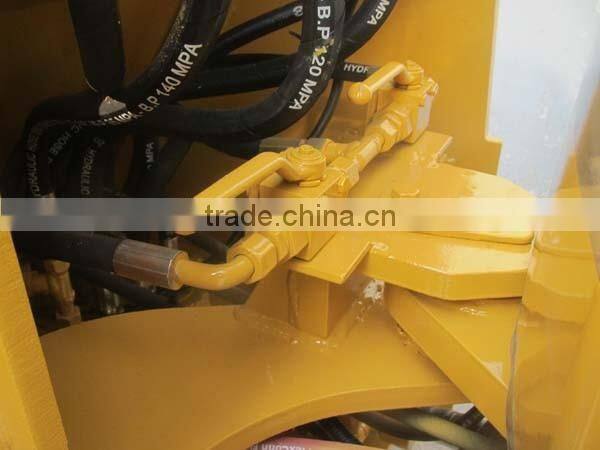

Hydraulic system	Distribution of work valve	ZL20B
Hydraulic system	Working pump	CBGj1045,CBGq1018
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	27±1°
	Min turning radius(mm)	3000
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	23.5/70-16
Tyres	optional tires	snow tires
