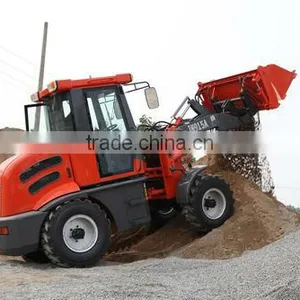

Help CenterMade in China CE Caise HZM JN915 Series Wheel Loader With New Frame
Related Products
-
ZL15 Earthmoving MachineUS$ 9,000 - 13,000MOQ: 1 Piece -
Huizhong Style 1.5ton Wheel Loader for Sale Zl15 With CENegotiableMOQ: 1 Set
-
Zl15 Wheel Loader With CE EURO III EngineNegotiableMOQ: 1 Set
-
Huizhong Backhoe Wheel Loader Zl15 With CENegotiableMOQ: 1 Set
-
ZL15 Tractor With Backhoe LoaderUS$ 9,000 - 13,000MOQ: 1 Piece
Specifications of JN915 front mini loader
Specification |
overall weight(kg) |
3600 |
L×W×H(mm) |
4760×1680×2550 |
|
rated bucket capacity(m3) |
0.7 |
|
Rated load(kg) |
1500 |
|
Maximum dump height (mm) |
2750 |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
43 |
|
Engine |
Model |
Xinchai498(EURO III) |
Type |
In-line arrangement, Water cooling, four-stroke |
|
|
Rated power(kw) |
36.8kw |
|
Rated speed(r/min) |
2200 |
|
Transmission system |
Model of torque converter |
YJ240 |
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Distribution of work valve |
ZL20B |
Working pump |
CBGj1045,CBGq1018 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
27±1° |
|
Min turning radius(mm) |
3000 |
|
Brake system |
Brake type |
Oil brake(Vacuum booster) |
Tyres |
Standard tyres |
12-16.5 |
Optional wide tyres |
14-17.5 or 20.5 / 70-16 |
* Streamlined appearance design ,fit Europe market ;
* With Joystick / Quick hitch / E3 XinchaiA498BT1 engine ;
* Cabin with Luxury inside design / adjustable seat with belt / adjustable panle / built-in heater /
Dry powder fire extinguisher / Broken hammer / Fan / Electronic display radio ;
* optional attachments : side open floor / Europe warning light / floor Sound insulation membrane and so on .
JN915A with different appareance design with JN915B wheel loader .
JN915B with different appareance design with JN915A ,also could use 14-17.5 tures .
JN915C with Hub reduce Axle ,big tires -- 20.5 / 70-16 tires ; its wider than
JN915A and JN915B

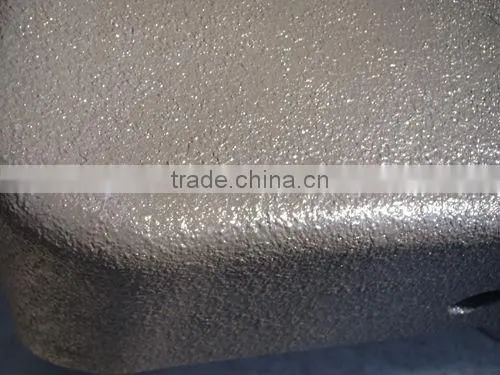

new painting way on the balance counter of JN915 wheel loader
differnt balance counter choice for JN915 wheel loader

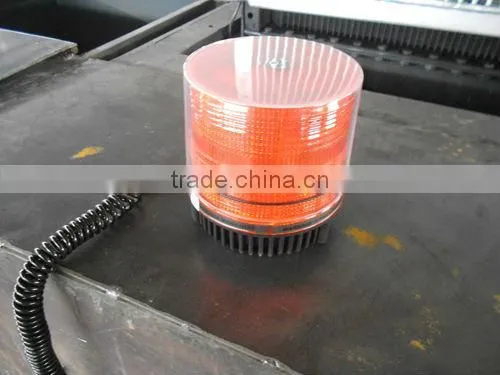

Europe warning light for JN915 wheel loader

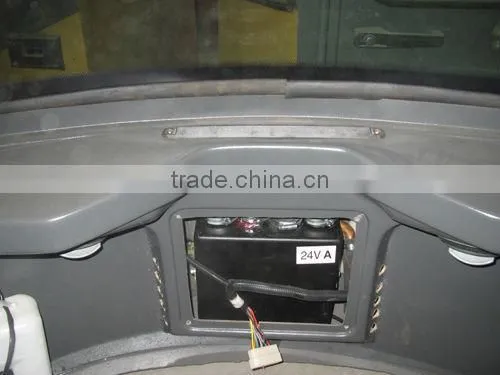

build-in cabin heater for JN915 wheel loader ;
Sound insulation membrane made by aluminum .
