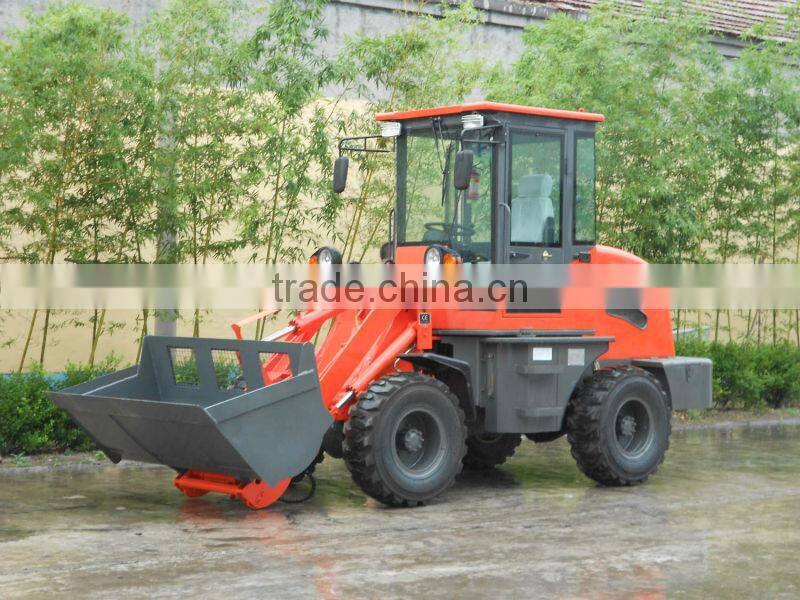

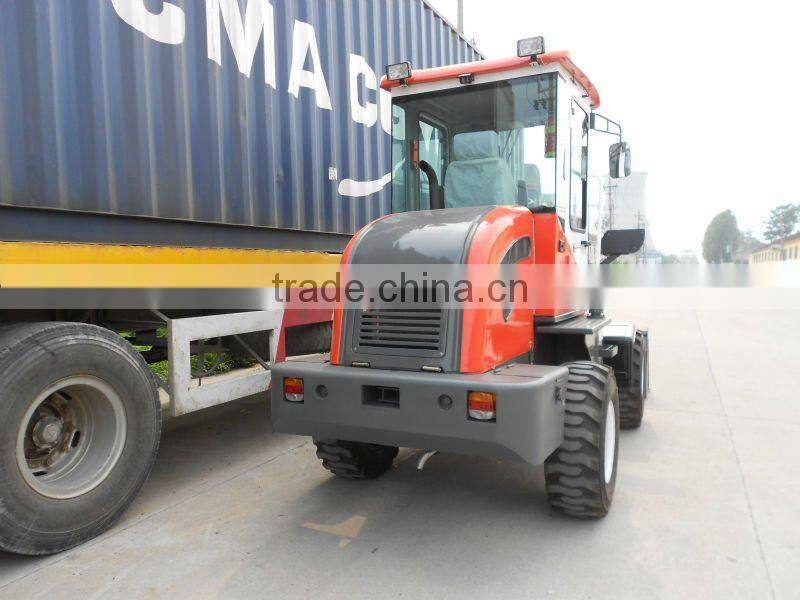

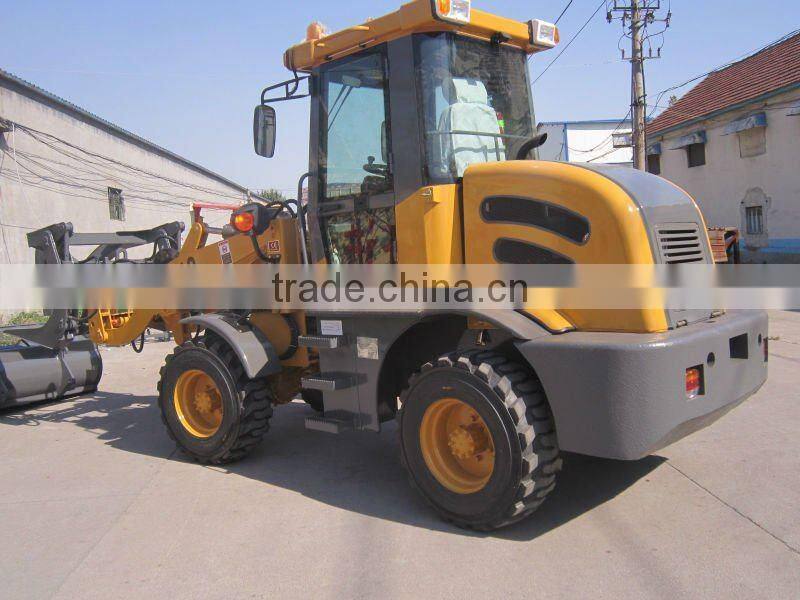

HZM 4wd Mini Multifunction Wheel Loader Zl12 With Snow Plower, Pallet Fork

Name: HZM 4wd Mini Multifunction Wheel Loader Zl12 With Snow Plower, Pallet Fork
Brand: HUIZHONG
SKU: 143315212
Availability: InStock

Qingzhou Huizhong Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

zl12F

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number zl12F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4760X1680X2550

Rated Load 1500kg

Certification CE

Warranty 1year

Specifications

ZL12F wheel loader
small wheel loader with low price
* New fashion cab loader
*small wheel loader for sale,euro III engine

Specifications of ZL12 hydraulic loader

Specification	overall weight(kg)	3300
	L×W×H(mm)	5050x1640x2550mm
	rated bucket capacity(m³)	0.7
	Rated load(kg)	1500
	Maximum dump height (mm)	2750
	Bucket indicator	Yes
	Max. breakout force(KN)	43
Engine	Model	xinchai498(EUROIII)/changchai4L68
	Type	In line,direct injection,four-stroke,liquid cooled
	Rated power(kw)	36.8kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ240
	Type	Single-stage,3 elements
	Gearbox type	Axial full power shift transmission
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	ZL20B
Hydraulic system	Working pump	CBGj1045,CBGq1018
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	lift and right 27±1°
	Min turning radius(mm)	3000
Brake system	Brake type	oil brake(vacuum booster)
Tyres	Standard tyres	12-16.5
Tyres	Optional wide tyres	14-17.5
