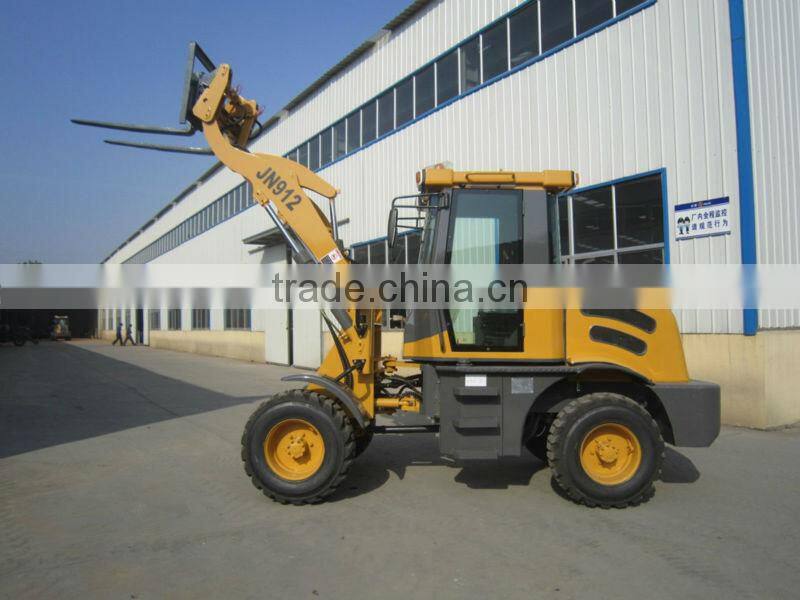

Europe Style CE and EURO III Engine ZL12F Wheel Loader

Name: Europe Style CE and EURO III Engine ZL12F Wheel Loader
Brand: HUIZHONG
SKU: 143315154
Availability: InStock

Qingzhou Huizhong Machinery Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

ZL12F

Payment & Shipping

Payment Methods:

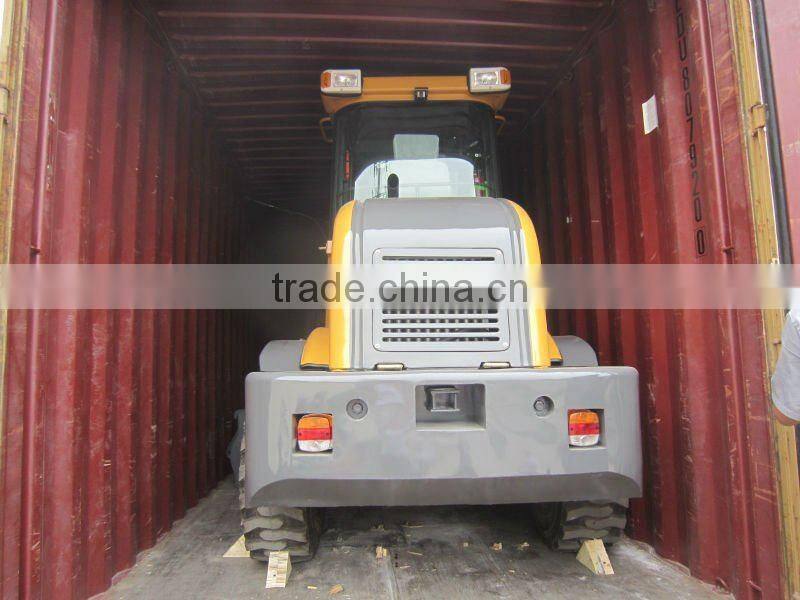

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number ZL12F

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4760X1680X2550

Rated Load 1200KG

Certification CE

Warranty 1 YEAR

Specifications

ce ZL12F wheel loader
*EURO III engine

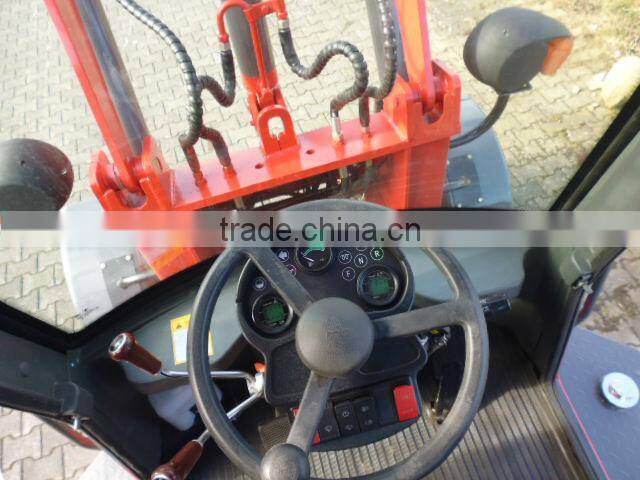

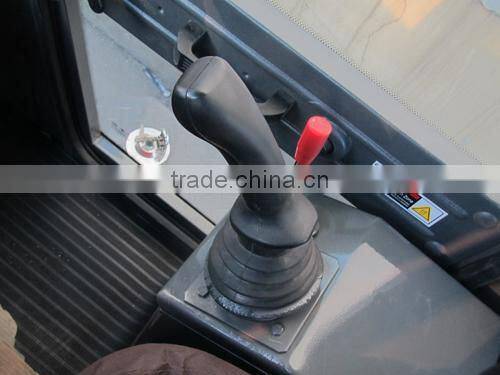

* pilot control loader
* Quick hitch
LED light,A/C,floating function,heater cabin

MINI FRONT END LOADER ZL12F WITH CE

Specification	overall weight(kg)	3500
	L×W×H(mm)	4760×1680×2550
	rated bucket capacity(m³)	0.7
	Rated load(kg)	1500
	Maximum dump height (mm)	2750
	Bucket indicator	Yes
	Max. breakout force(KN)	43

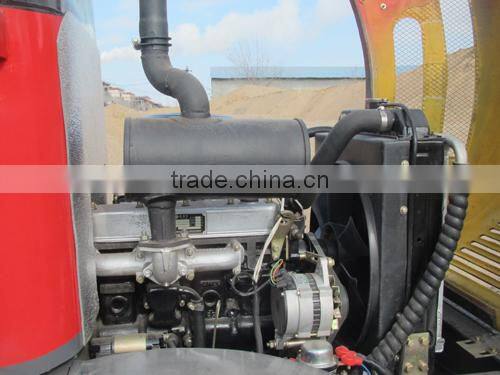

Engine	Model	Xinchai498(EURO III)/changchai4L68/XICHAI490
	Type	In-line arrangement, Water cooling, four-stroke
	Rated power(kw)	37kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ240
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	ZL20B
Hydraulic system	Working pump	CBGj1045,CBGq1018
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	27±1°
	Min turning radius(mm)	3000
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	12-16.5
Tyres	Optional wide tyres	14-17.5
