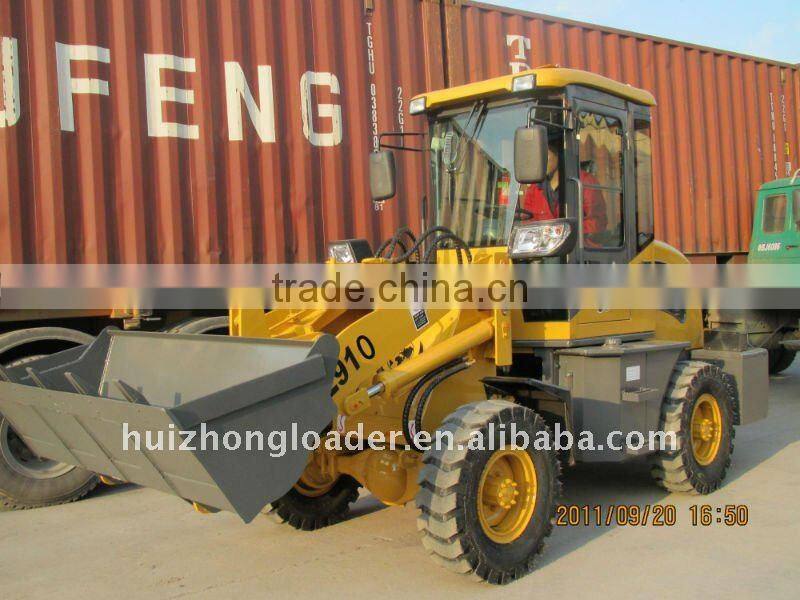

Help CenterCE Mini 1.0 Ton Wheel Loader
Related Products
-
ZL10F Front Wheel Loader for High QualityNegotiableMOQ: 1 Unit -
New Type Mini Wheel Loader ZL910 With CHANGCHAI 4L50B,EURO III EngineNegotiableMOQ: 1 Piece
-
CE Mini 1.0 Ton Small LoaderNegotiableMOQ: 1 Set
-
CHANGCHAI 4L50B,EURO III Engine Loader Truck ZL910NegotiableMOQ: 1 Piece
-
1t Farm Mini Small Front Wheel Loader ZL910 With 3 Cylinders EngineUS$ 7,000 - 9,000MOQ: 1 Piece
Specifications
1.0 ton wheel loadervariuos engine ,attachments option
price competitive
various optional tool meet all need
new type hood
Specifications of 1.0 ton mini wheel loader case
Specification |
overall weight(kg) |
3000 |
L×W×H(mm) |
5100×1550×2570 |
|
rated bucket capacity(m3) |
0.6 |
|
Rated load(kg) |
1200 |
|
Maximum dump height (mm) |
2850/2900 |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
43 |
|
Engine |
Model |
xichai 4DW81-37/quanchai 485BG |
Type |
In-line arrangement, Water cooling, four-stroke |
|
|
Rated power(kw) |
33KW/30KW |
|
Rated speed(r/min) |
2300/2400 |
|
Transmission system |
Model of torque converter |
YJ240 |
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Axle |
drive type |
four wheel drive |
name |
hua an |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
35±1° |
|
Min turning radius(mm) |
34 |
|
Brake system |
Brake type |
Oil brake |
Tyres |
Standard tyres |
1200-16 |
Optional wide tyres |
|
