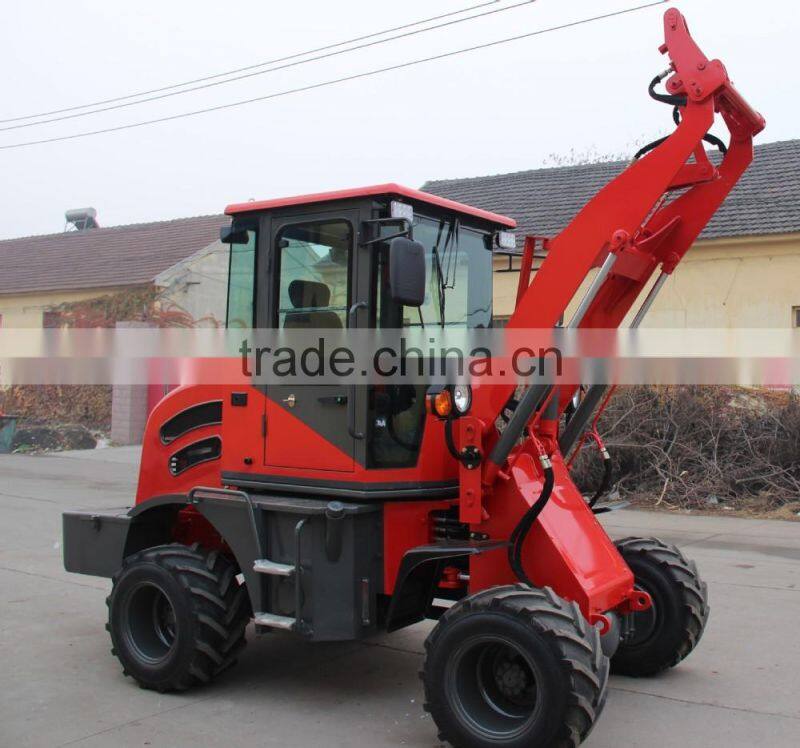

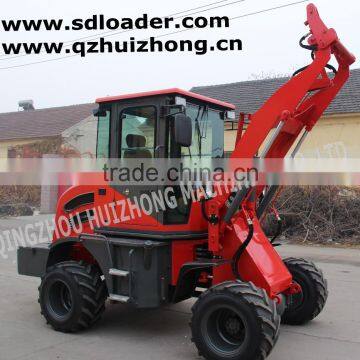

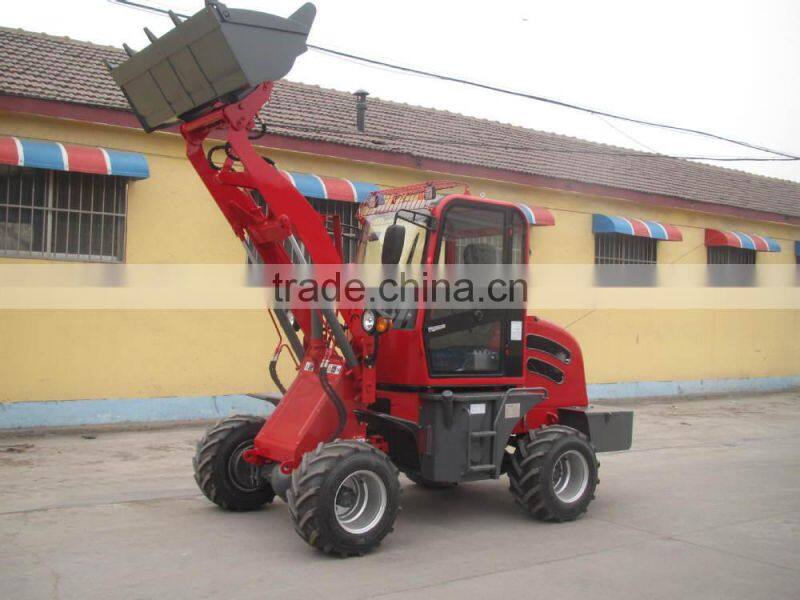

HZM910 WHEEL LOADER
Specification |
overall weight(kg) |
3400 |
L×W×H(mm) |
5100×1550×2570 |
|
rated bucket capacity(m3) |
0.5 |
|
Rated load(kg) |
1000 |
|
Wheel base |
1980mm |
|
Thread |
1420mm |
|
Max.breakout force |
43KN |
|
Maximum dump height (mm) |
2850mm |
|
Bucket indicator |
Yes |
|
Engine |
Model |
CHANGCHAI 385/CHANGCHAI490 |
Rated power(kw) |
20kw/36.8KW |
|
Rated speed(r/min) |
2400 |
|
Max.torque |
124.3N.m |
|
Total displacement |
2.16L |
|
Hydraulic system |
Working pump |
CBF32 |
Distribution device model |
DF15.2C |
|
Steering system |
Type |
Articulated and hydraulic steering |
Min turning radius(mm) |
3400 |
|
|
Max.turning angle |
35°±1 |
Tyres |
Standard tyres |
1200-16 |
Qingzhou Huizhong Machinery Co.,Ltd-HZM
1.standard configuration:
♦XICHAI 4DW1-45 or CHANGCHAI 490
♦JOYSTICK
♦1200-16 TIRE
♦STANDARD BUCKET
2.FOR FREE:
♦CABIN HEATER
♦WATER AND AIR PREHEATER
♦LED LIGHT
♦VATAR ANTI-FREEZE BATTARY♦
♦ADJUSTABLE STEERING WHEEL
♦COMFORTABLE SEAT
♦SOME SPARE EASY-DAMAGE PARTS EACH LOADER FOR FREE
3.OPTIONAL:
♦QUICK HITCH
♥cabin
♦A/C

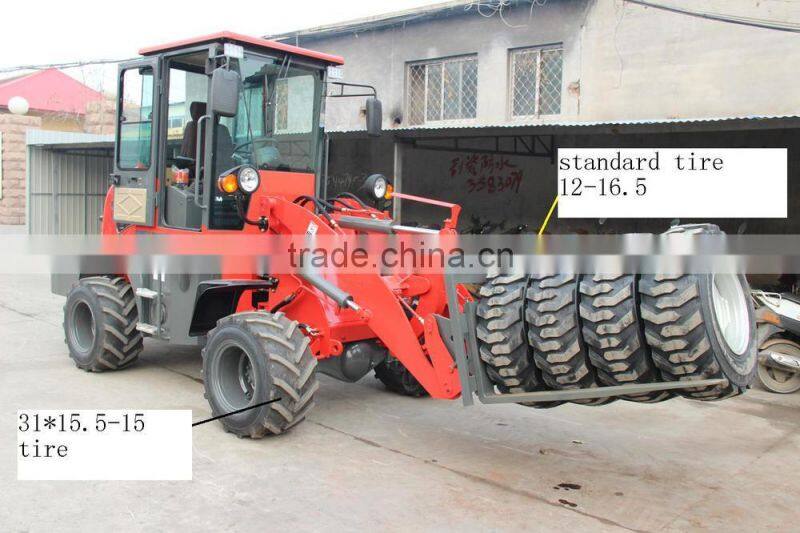

♦12-16.5 OR 31*15.5-15 WIDER TIRE

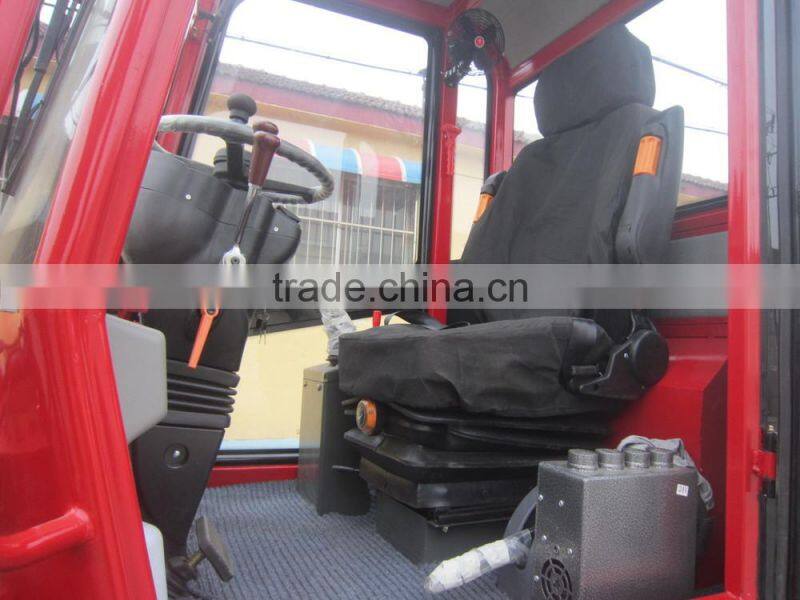

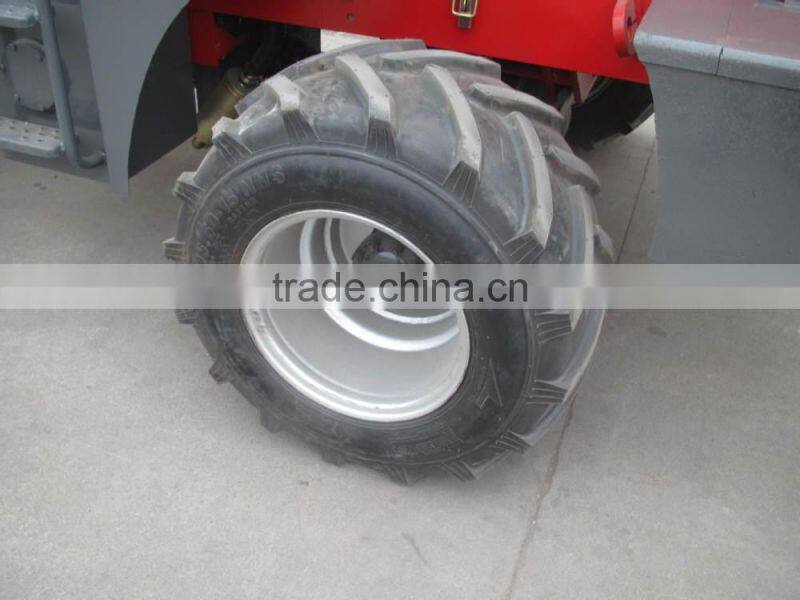

31*15.5-15 tubeless tire(wider tire) cabin inside

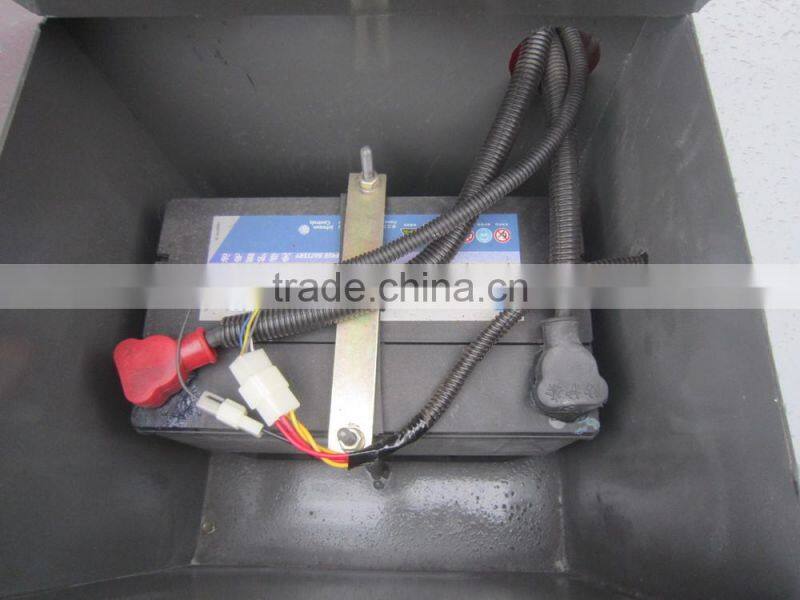

anti-freeze battery-varta back camera
4. CHOOSE DIFFERENT ATTACHMENTS:
1 UNIT IN 20FT CONTAINER,NEED TO DISMOUNT THE CABIN

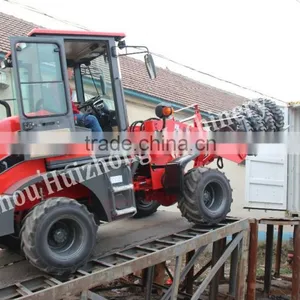

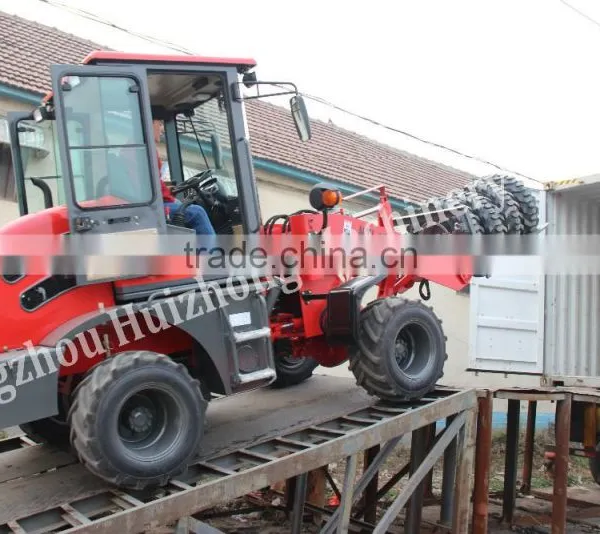

3 UNITS IN 40HQ CONTAINER,NO NEED,AND DRIVE IT TO CONTAINER

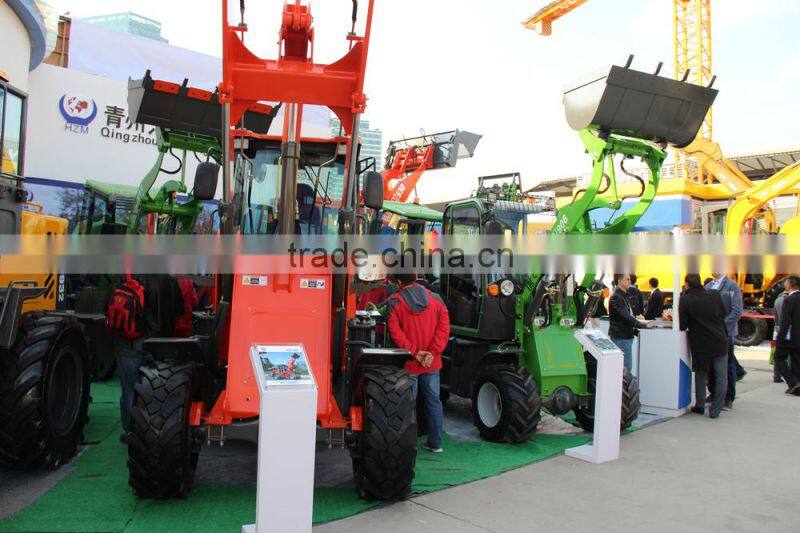

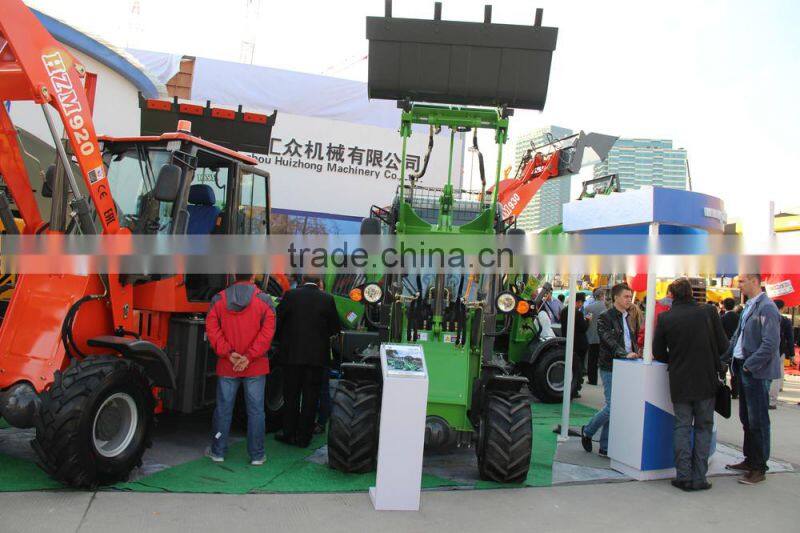

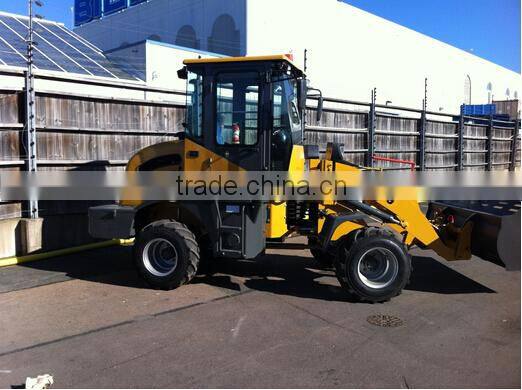

SHOWED IN 2014 SHANGHAI BAUMA EXHIBITION
Noticfication:
for the brand,you can choose use your own or ours-HZM.that is your rights.
WE ARE A FACTORY,LOACATED IN QINGZHOU CITY,SHANGDONG PROVINCE,CHINA. IF COME TO OUR FACTORY,FLY TO JINAN OR QINGDAO AIRPORT,WE WILL WAIT THERE FOR YOU.
WELCOME YOU CONTACT ME,I WILL BE 24 HOURS.
