HZM 910 WHEEL LOADER--HUIZHONG MACHINERY
Specification | overall weight(kg) | 3400 |
L×W×H(mm) | 5100×1550×2570 | |
rated bucket capacity(m3) | 0.5 | |
Rated load(kg) | 1000 | |
Wheel base | 1980mm | |
Thread | 1420mm | |
Max.breakout force | 43KN | |
Maximum dump height (mm) | 2850mm | |
Bucket indicator | Yes | |
Engine | Model | QUANCHAI 4B2-52M22/Weichai YZ4DH5 |
Rated power(kw) | 38kw | |
Rated speed(r/min) | 2400 | |
Max.torque | 124.3N.m | |
Total displacement | 2.16L | |
Hydraulic system | Working pump | CBF32 |
Distribution device model | DF15.2C | |
Steering system | Type | Articulated and hydraulic steering |
Min turning radius(mm) | 3400 | |
| Max.turning angle | 35°±1 |
Tyres | Standard tyres | 900-16 |
Attention:
there are two drive type,one is mechanic,another is hydraulic.
but shape is same.
standard :
*CHANGCHAI 490 engine
*joystick
*1200-16 tire
*cabin heater,engine preheater(if need,these are for free)
*hammer,fan,extinguisher,radio,USB,etc,these are in cabin.
Optional:
*12-16.5 tubeless tire or 31*15.5-15 tubeless and wider tire!!!!!!!!!!!!!!!!!!
*EURO III ENGINE(XINCHAI 490)
*quick hitch
*A/C
*different attachments,such as pallet fork,grass mower,auger,snow blade,etc.

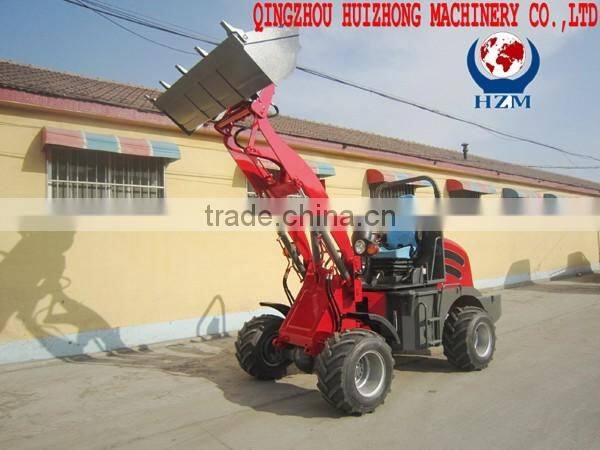

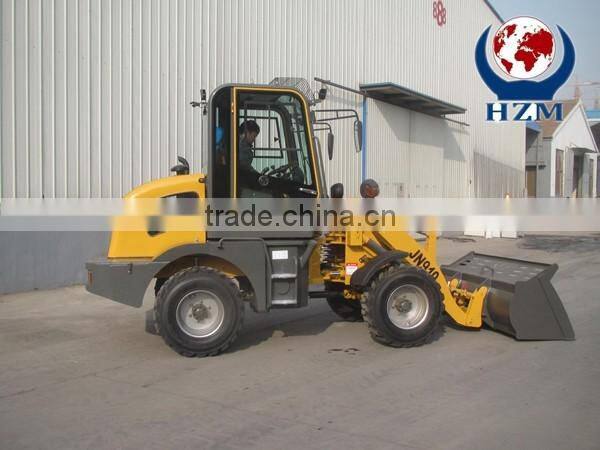

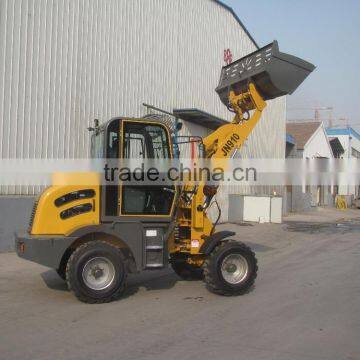

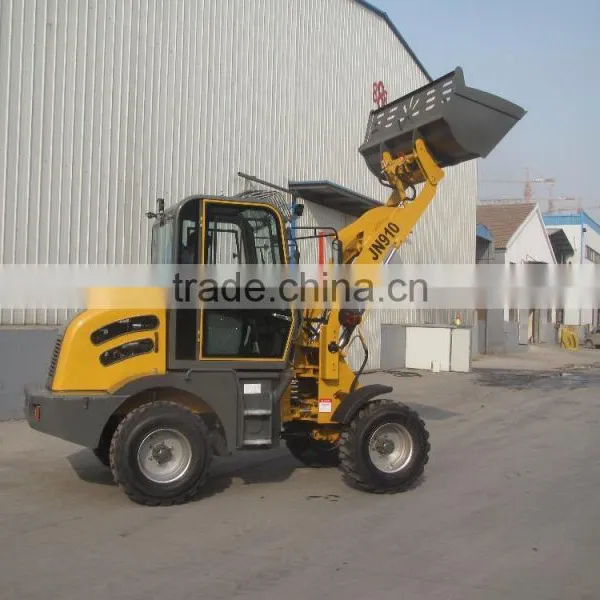

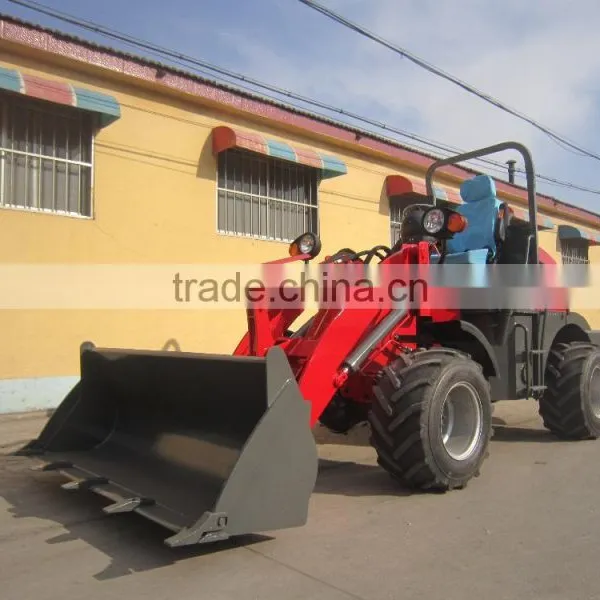

whole machine picture:
1 unit for 20ft container,3 units for 1*40HQ container
warranty is one year,if parts are broken,send back the picture to factory,we will send the new one to you by DHL or Fedex or TNT.
we are search for the reliable wholesaler to bulid the long business relationship and maintance center.
We guanrantee the after service and look forward to get the cooperation.
We are QINGZHOU HUIZHONG MACHINERY CO.,LTD(HZM),
a manufacture,specalized in producing different model wheel loader and relavant attachments.we have own factory and international department.
Our brand is HZM,may be you saw our loader,but not our brand.
welcome you come to our factory to check loader,have some stock loader for testing.
