QINGZHOU HUIZHONG MACHINERY CO.,LTD
good news:
welcome you come to see the loader on 2016 Bauma Shanghai Messe in November!!!

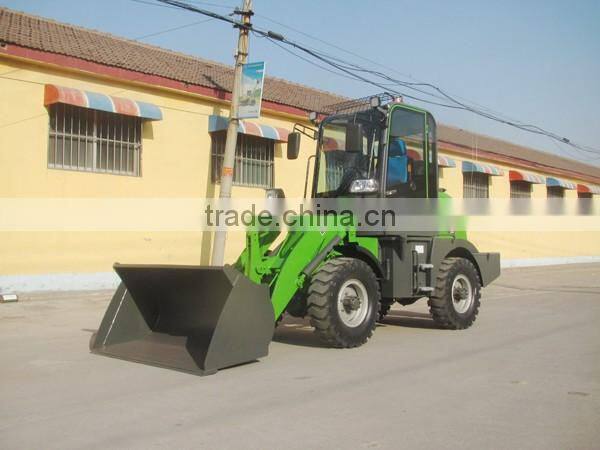

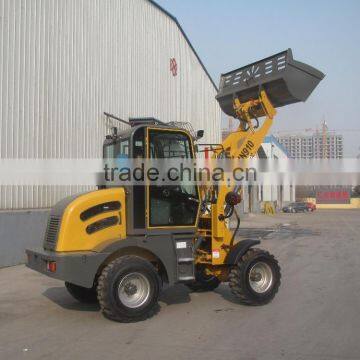

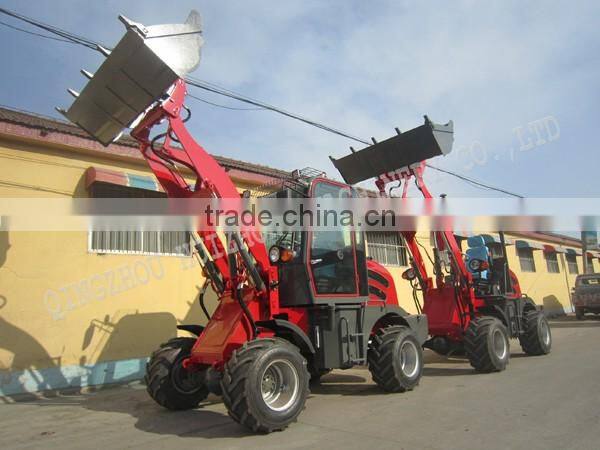

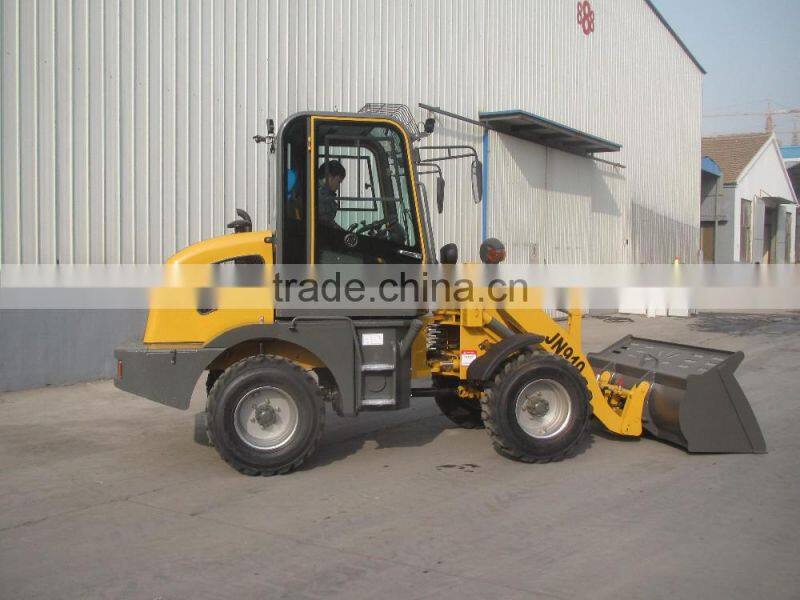

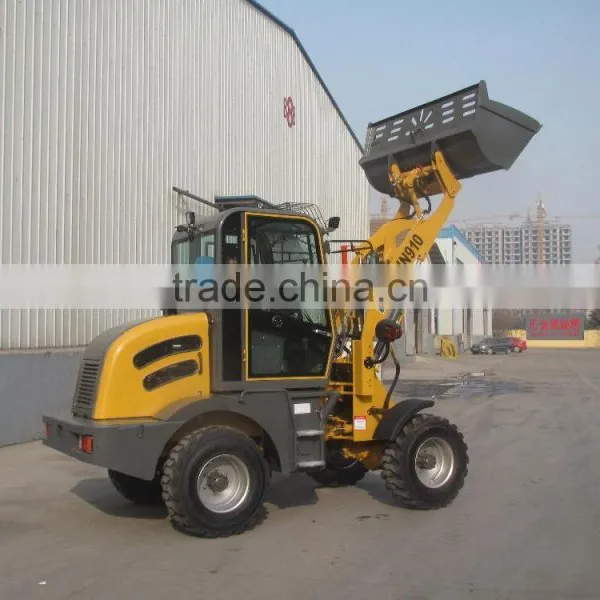

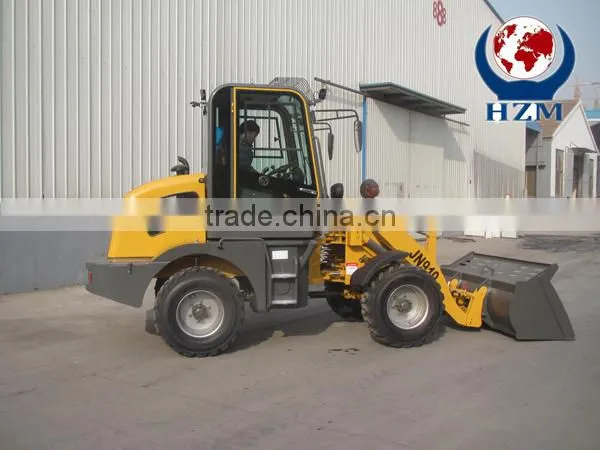

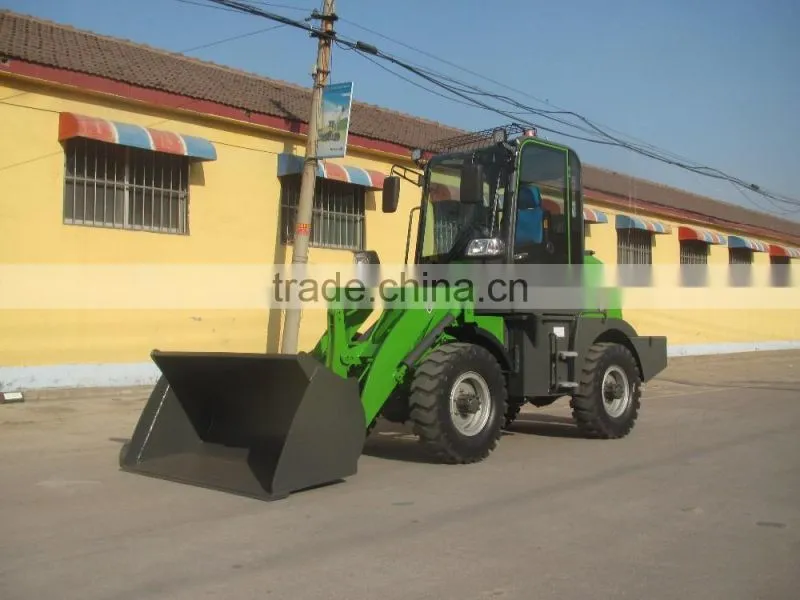

MINI WHEEL LOADER-HZM 910
STANDARD CONFIGURATION:

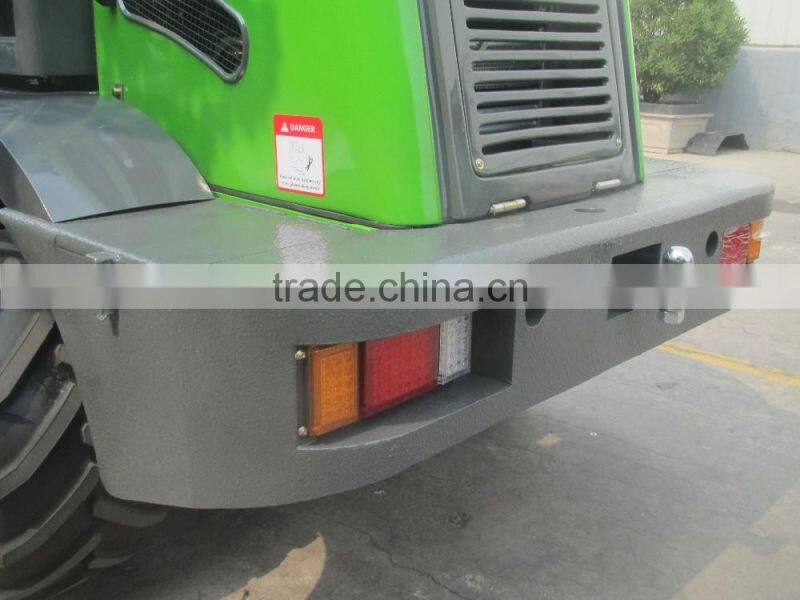

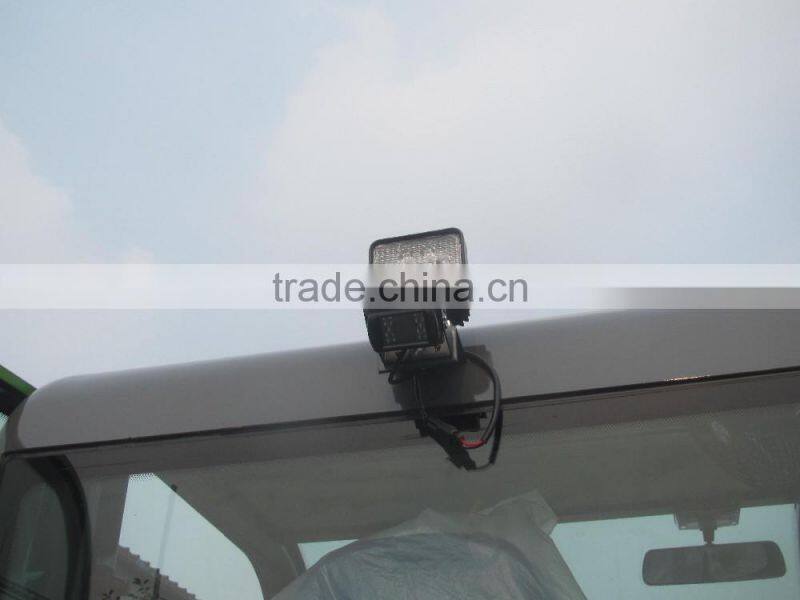

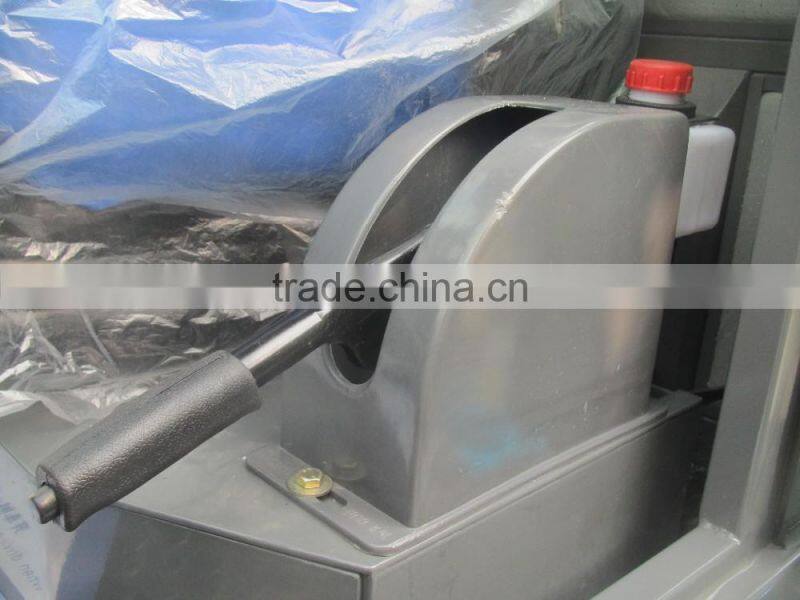

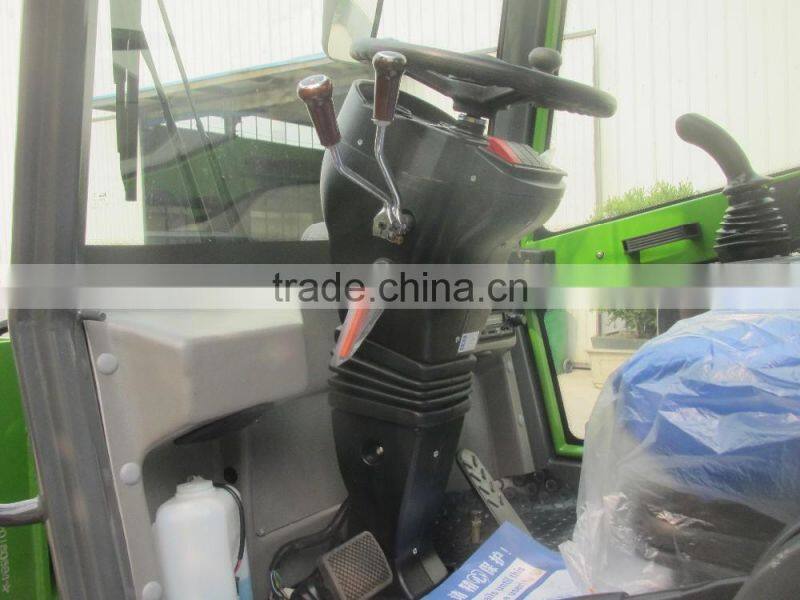

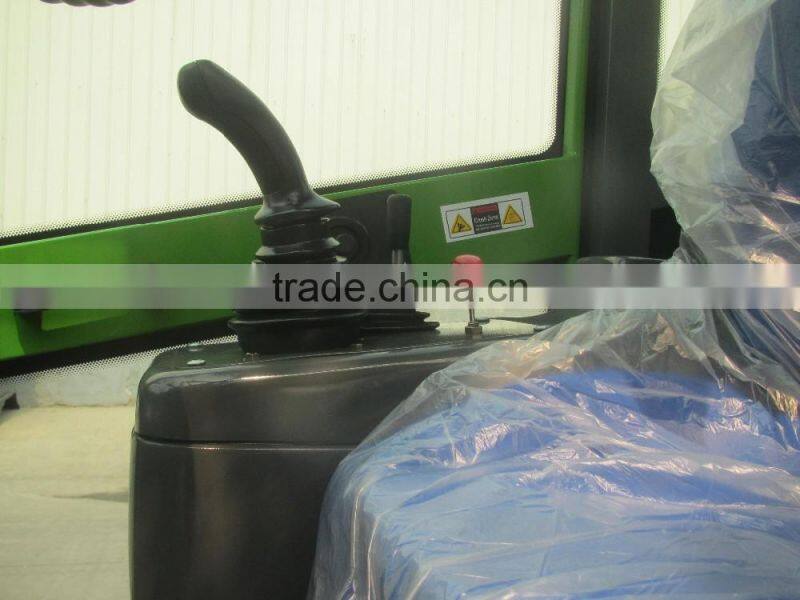

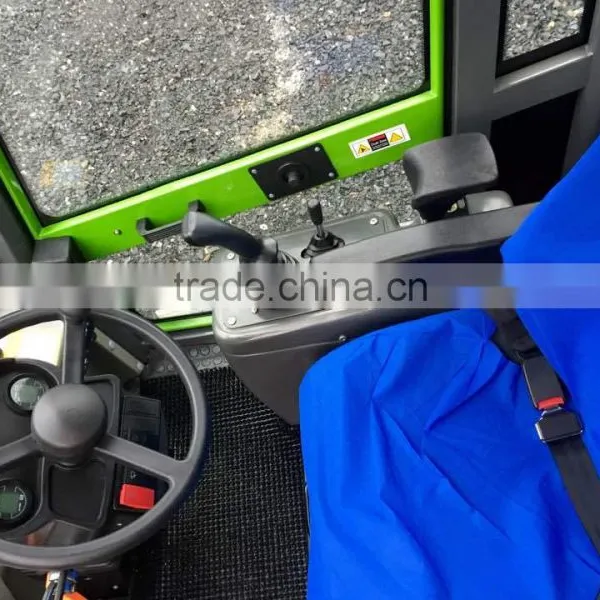

CHANGCHAI 490 OR XICHAI 490,JOYSTICK,LED LIGHT,FLOAT FUNTION,CABIN AND ENGINE HEATER,BACK CAMERA,1200-16 TIRE,STANDARD BUCKET.
OPTIONAL:
EURO III engine
TUBELESS TIRE OR WIDER TIRE
CABIN
NOTICE:
SUPPLY SOME EASY-BROKEN PARTS FOR FREE!!!!!
Specification | overall weight(kg) | 3200 |
L×W×H(mm) | 5100×1550×2570 | |
rated bucket capacity(m3) | 0.5 | |
Rated load(kg) | 1000 | |
Wheel base | 1980mm | |
Thread | 1420mm | |
Max.breakout force | 43KN | |
Maximum dump height (mm) | 2850mm | |
Bucket indicator | Yes | |
Engine | Model | CHANGCHAI 490 |
Rated power(kw) | 38kw | |
Rated speed(r/min) | 2200 | |
Max.torque | 124.3N.m | |
Total displacement | 2.16L | |

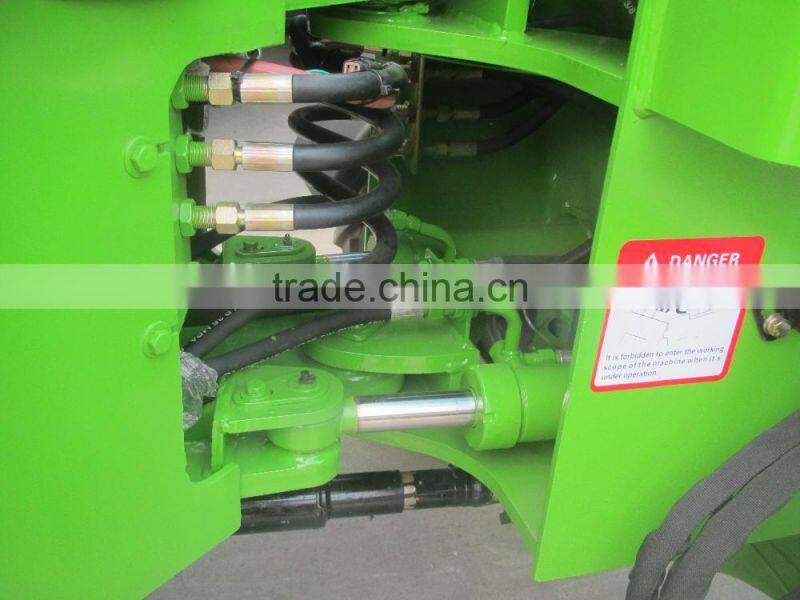

Hydraulic system | Working pump | CBF32 |
Distribution device model | DF15.2C | |
Steering system | Type | Articulated and hydraulic steering |
Min turning radius(mm) | 3400 | |
| Max.turning angle | 35°±1 |
Tyres | Standard tyres | 900-16 |
DETAIL:

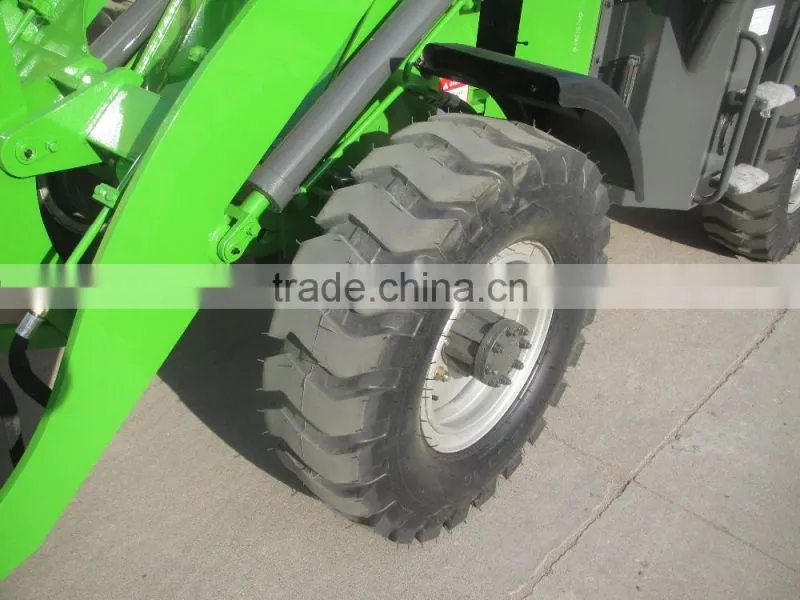

910 standard tire(1200-16)

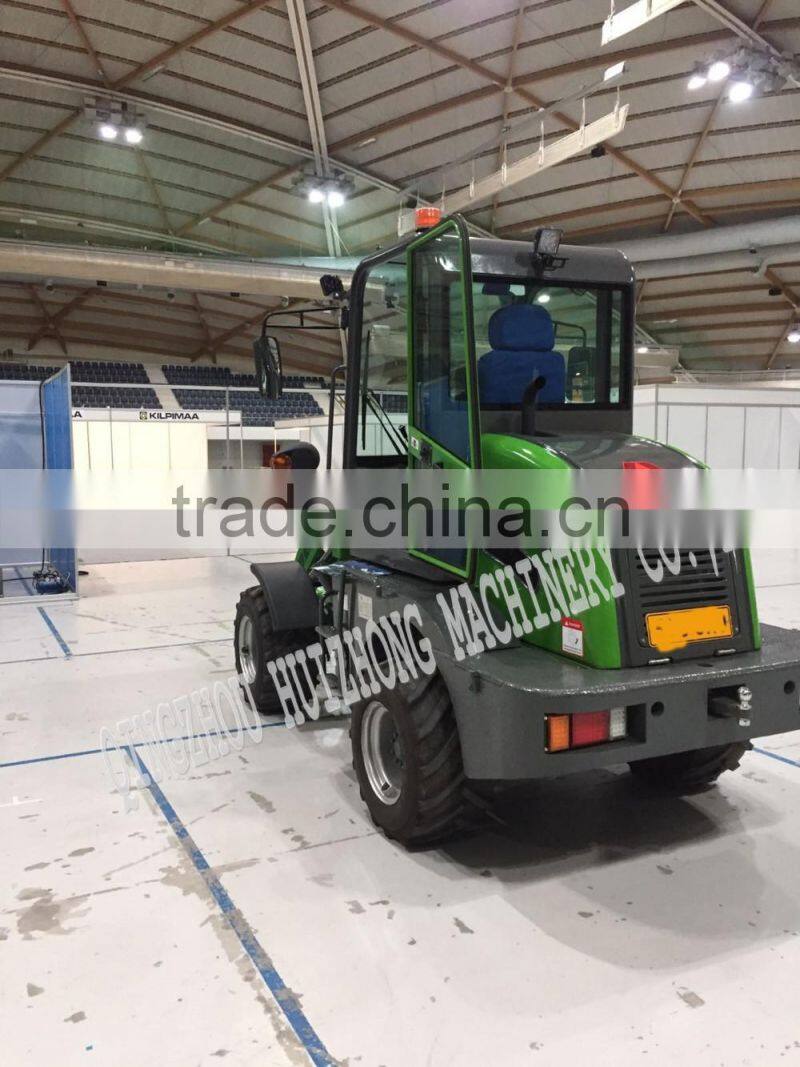

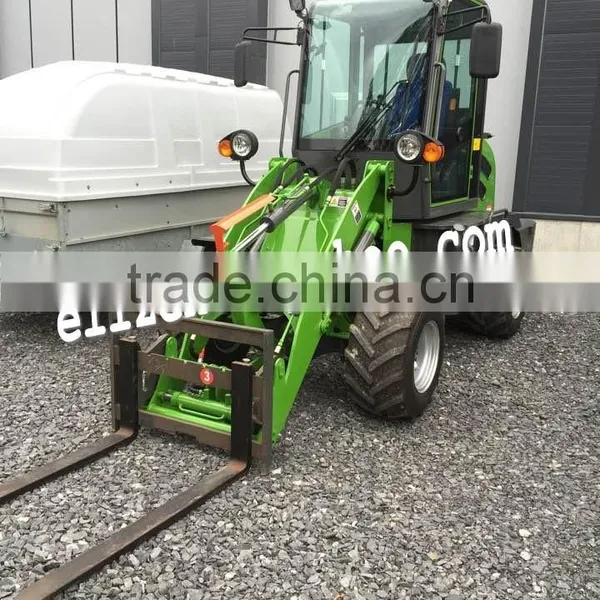

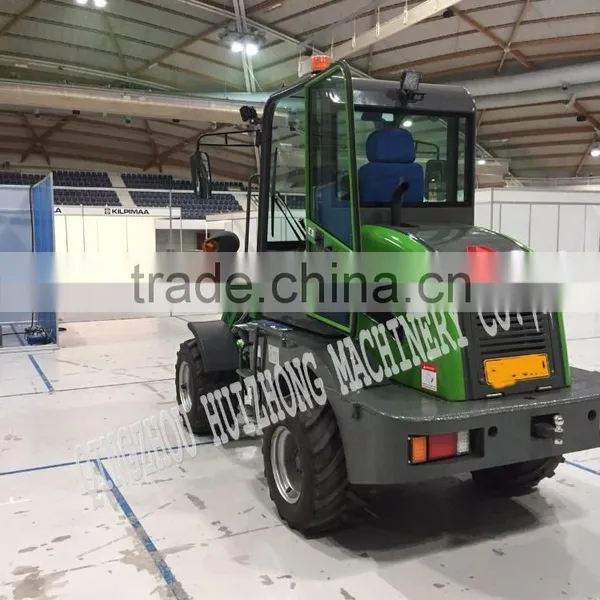

EUROPEAN EXHIBITION:
standard tire 900-16 |
12-16.5 tubeless tire |
31*15.5-15 wider tire |

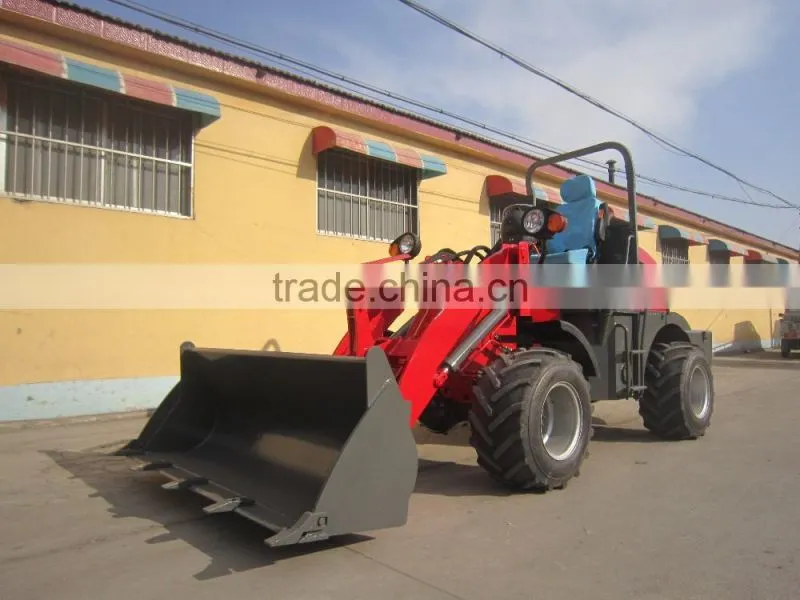

without cabin |
LOADER DETAIL:
| |
| |
| |

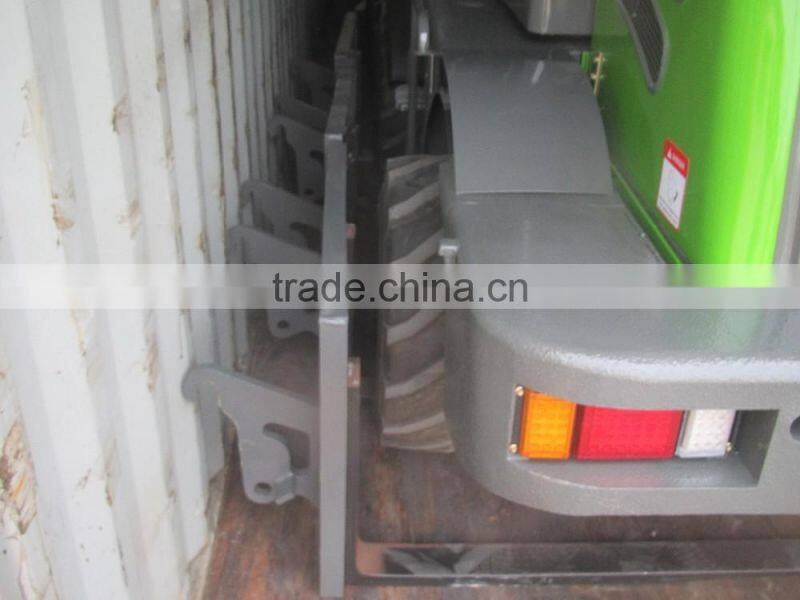

1 UNIT IN 20FT CONTAINER,NEED TO DISCHARGE THE CABIN

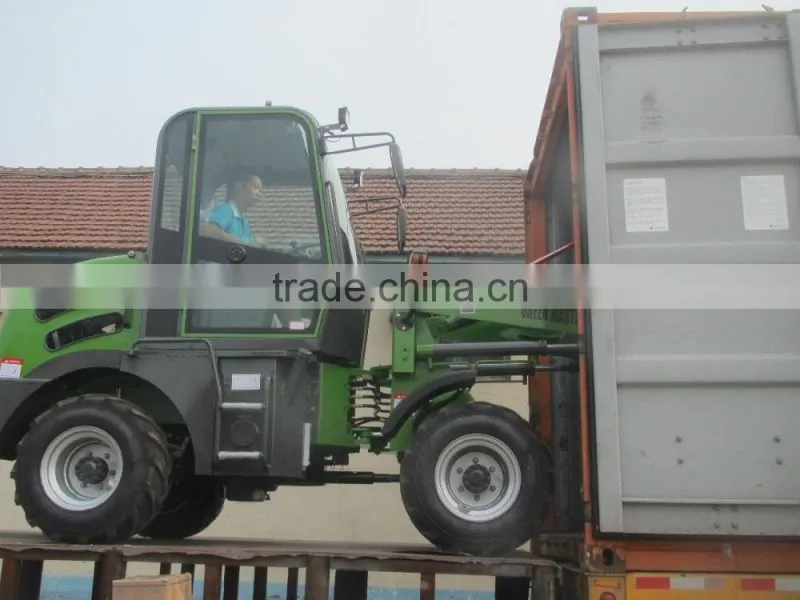

3 UNITS IN 40HC CONTAINER,CAN DRIVE TO CONTAINER DIRECTLY WITHOUT ANY DISCHARGE!!!
1. WARRANTY IS 1 YEAR,WE WILL SEND THE NEW ONE IF THE PART IS BROKEN BECAUSE OF QUALITY,AND SEND THE PICTURE TO ME.
2.COLOR IS CHOOSED FREELY.
QINGZHOU HUIZHONG MACHINERY CO.,LTD,BRAND IS HZM,A FACTORY,HAVE ITS OWN PROFESSIONAL EXPORT BUSINESS TEAM,CAN SOLVE AND ANSWER ANY PROBLEMS ABOUT EXPORTING.
ABOUT PRODUCTS,WE HAVE MINI MIDDLE,BIGGER LOADER,MINI BACKHOE LOADER,SKID LOADER AND ATTACHMENTS.
OR GIVE ME YOUR REQUESTS,LET US DESIGN OR STUDY,WE WILL TRY TO STAIFY.
FOR EXPORTING,WE HAVE SOLD TO AROUND 30 COUNTRIES,AND HAVE THE DEALER IN
NORWAY,FINLAND,GERMANY,RUSSIA,AUSTRILIA.AND WE ALSO LOOK FORWARD TO BUILDING THE NEW MARKET WITH OTHER COUNTRIES WHOLESALER.
CONTACT INFORMATION:
ELIZE wang
skype:laurie19890711
phone/wechat/whatsapp:8615866569786
facebook:/.3
