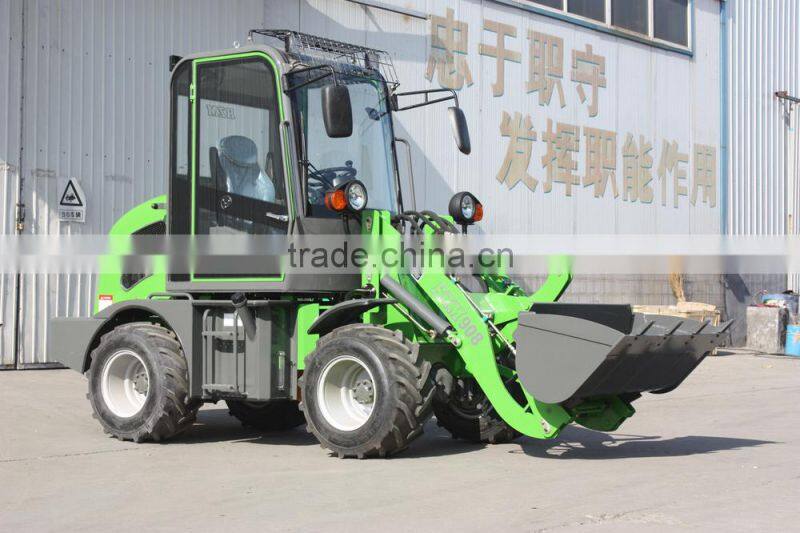

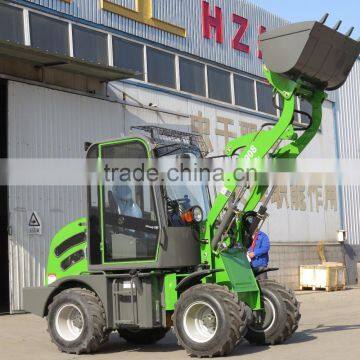

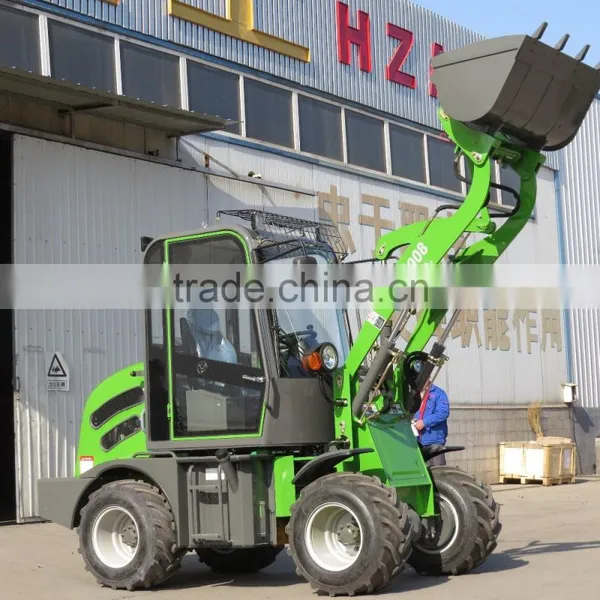

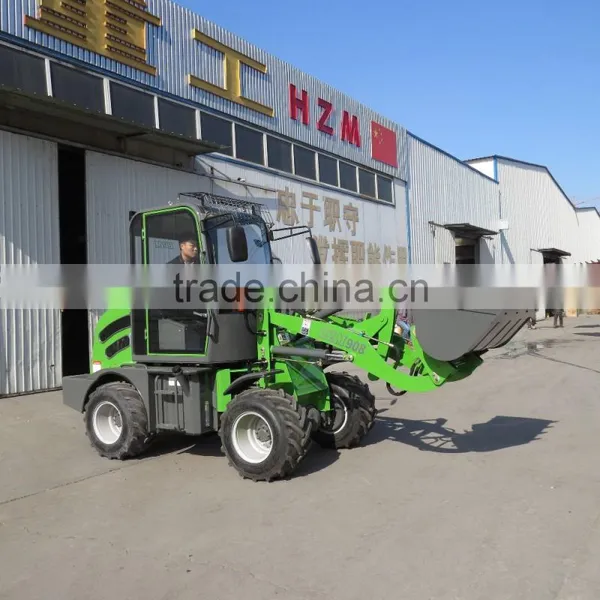

HZM908 WHEEL LOADER
Specification | overall weight(kg) | 2500 |
L×W×H(mm) | 4200×1600×2550 | |
rated bucket capacity(m3) | 0.3 | |
Rated load(kg) | 800 | |
Maximum dump height (mm) | 2750 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model | Changchai 385 |
Type | In-line arrangement,Water cooling, four-stroke | |
Rated power(kw) |
20KW | |
Rated speed(r/min) | 2200 | |
Transmission system | Model of torque converter | YJ240 |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | ZL20B |
Working pump | CBGj1045,CBGq1018 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 27±1° | |
Min turning radius(mm) | 3000 | |
Brake system | Brake type | Oil brake(Vacuum booster) |

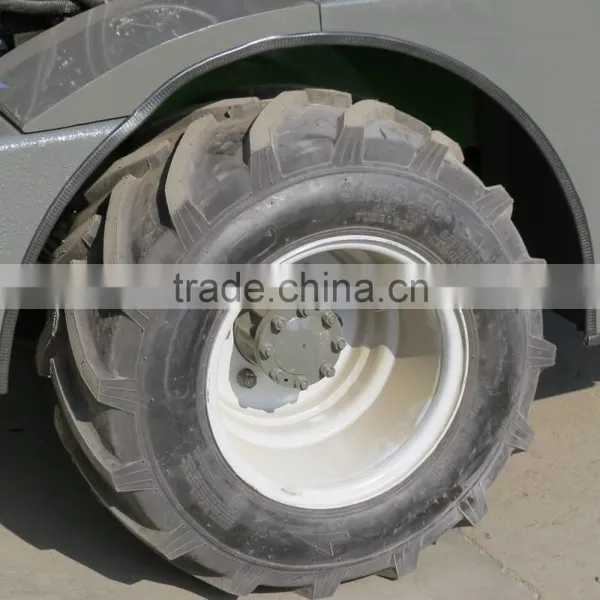

Tyres | Standard tyres | 10-16.5 |
Optional wide tyres | 31*15.5-15 |
standard equipments
*hydrostatic 4 wheel drive
*CHANGCHAI 385 engine
*standard bucket with teeth
*bigger space cabin
*3-way joystick for operating easily
*hydraulic quick-hitch for attachments
*heater in cabin
*water and air preheater
*comfortable seat

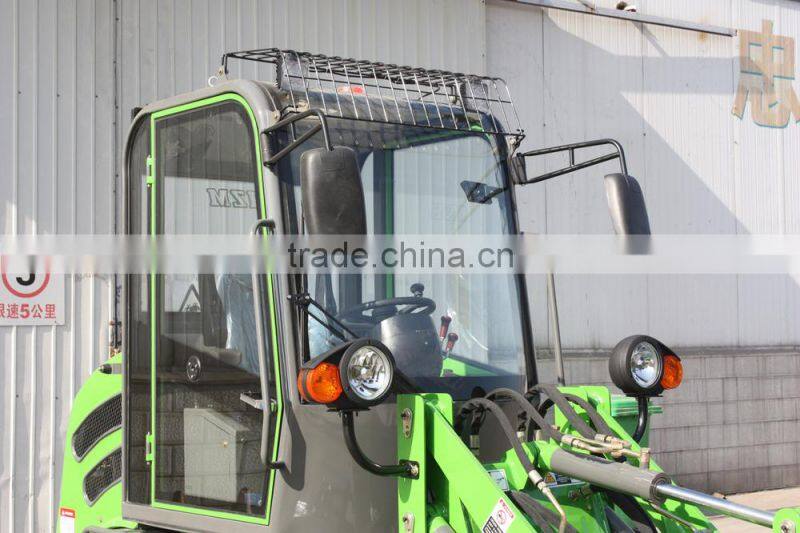

*front and rear headlight
*LED light
*tool box (include tool kit and lever grease gun)
hydrostatic system(new and bigger cabhin,wider tubeless tire 31*15.5-15,LED light,new shape)

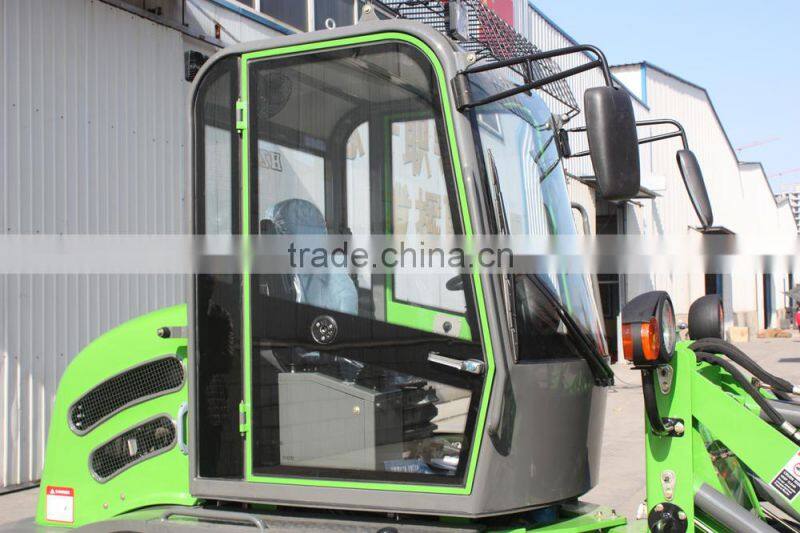

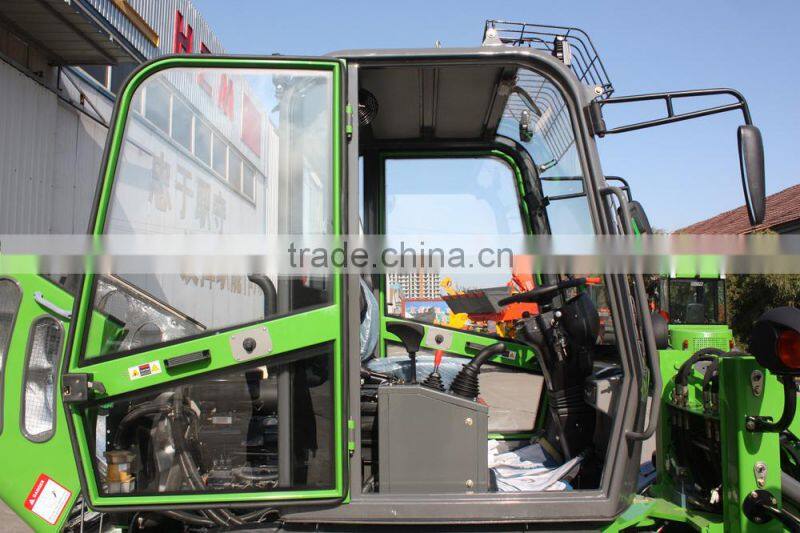

new cabin(bigger space)

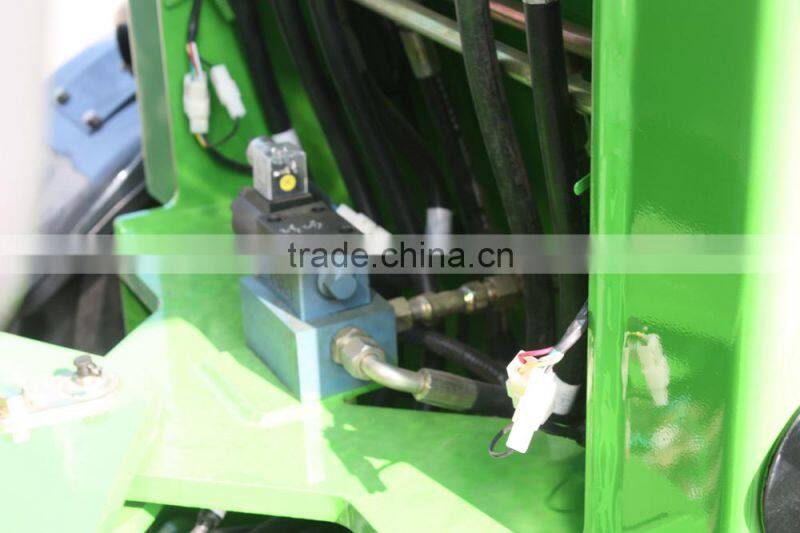

hydrostatic system
electronic floating system
changchai 385 engine(3 cylinders)
electronic control system+quick hitch+comfortable seat+adjustable steering wheel
Customer can choose different color,normally is green,red,blue,white,yellow.

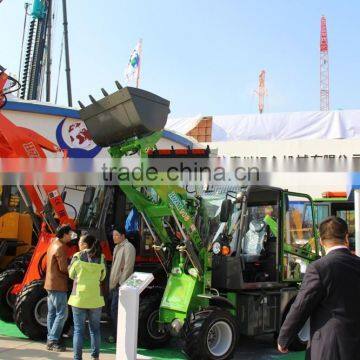

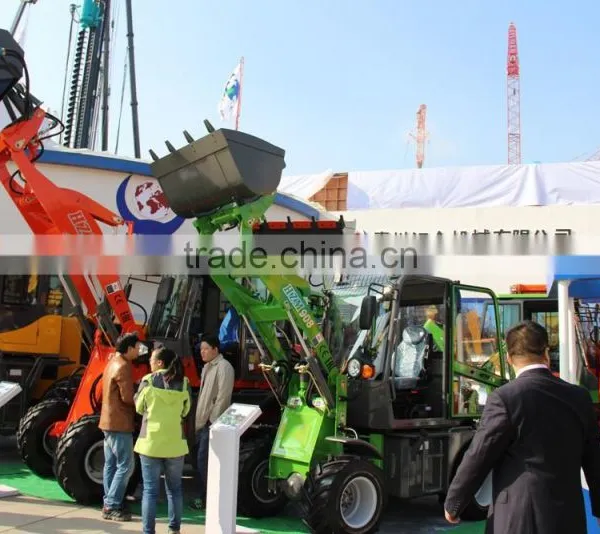

showed in 2014 Shanghai Bauma Exhibition,it is highly acclaimed!!!!!!!!!!!!!
1 unit for 20ft container,3-4 units for 40HC
