QINGZHOU HUIZHONG MACHINERY CO.,LTD
see you in 2016 Bauma shanghai exhibition!!

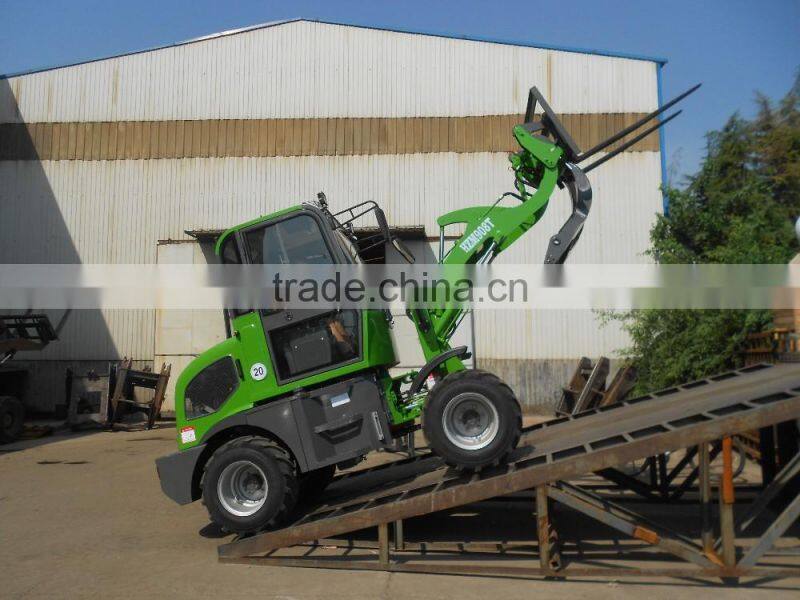

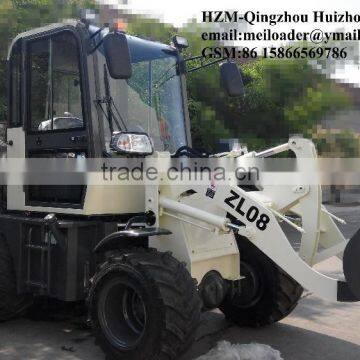

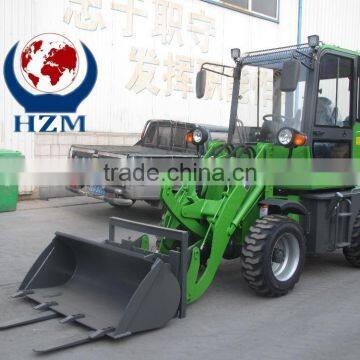

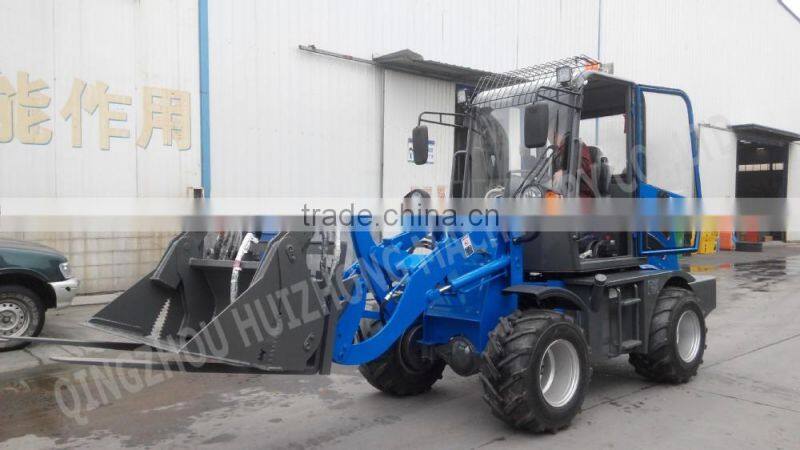

HZM908H and HZM 908T WHEEL LOADER
Specification |
overall weight(kg) |
2500 |
L×W×H(mm) |
4200×1600×2550 |
|
rated bucket capacity(m3) |
0.3 |
|
Rated load(kg) |
800 |
|
Maximum dump height (mm) |
2750 |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
43 |
|
Engine |
Model |
Changchai 390 |
Type |
In-line arrangement,Water cooling, four-stroke |
|
|
Rated power(kw) |
25KW |
|
Rated speed(r/min) |
2200 |
|
Transmission system |
Model of torque converter |
YJ240 |
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Distribution of work valve |
ZL20B |
Working pump |
CBGj1045,CBGq1018 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
27±1° |
|
Min turning radius(mm) |
3000 |
|
Brake system |
Brake type |
Oil brake(Vacuum booster) |
Tyres |
Standard tyres |
10-16.5 |
Optional wide tyres |
31*15.5-15 |
standard equipments
*hydrostatic 4 wheel drive
*CHANGCHAI 385 engine

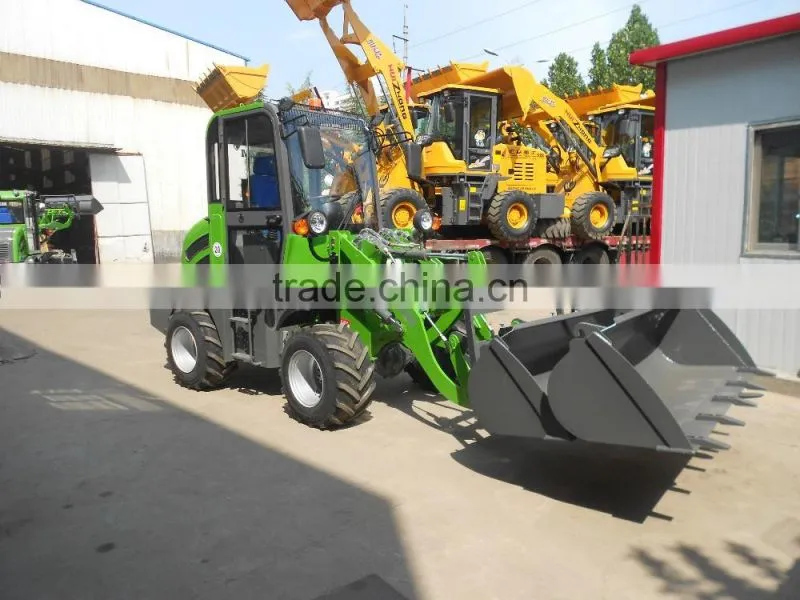

*standard bucket with teeth
*bigger space cabin
*3-way joystick for operating easily
*hydraulic quick-hitch for attachments
*heater in cabin
*water and air preheater
*comfortable seat
*front and rear headlight
*LED light
*tool box (include tool kit and lever grease gun)
hydrostatic system

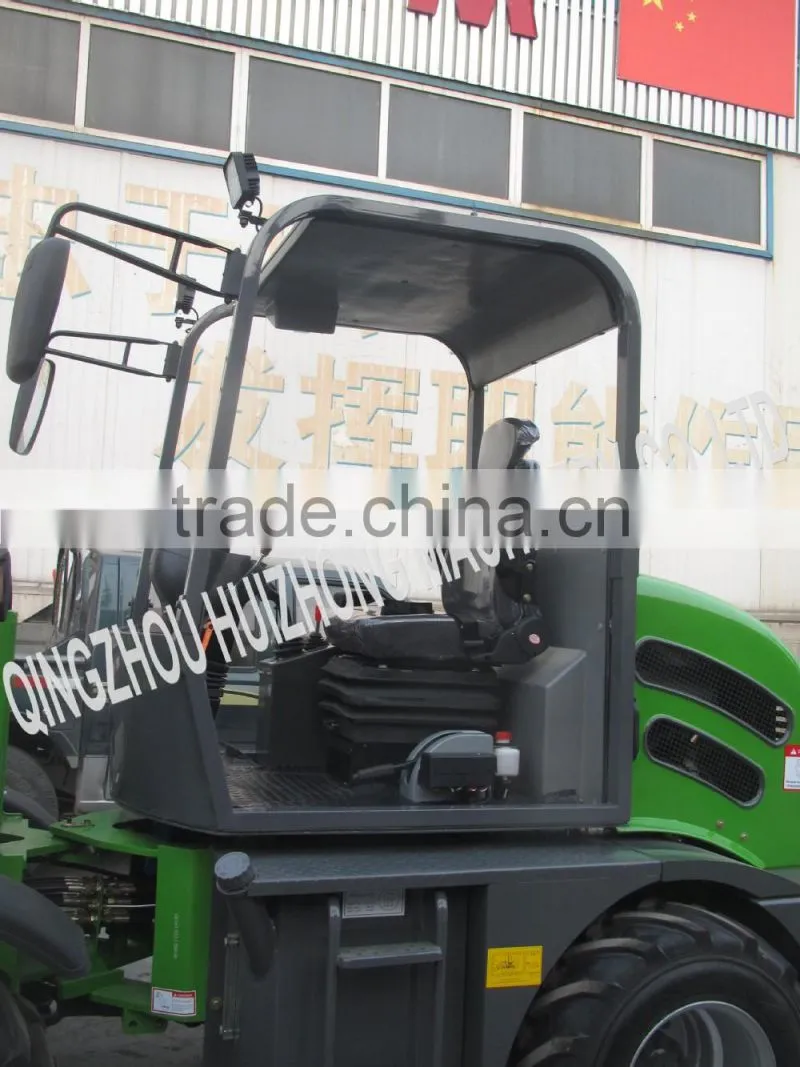

without cabin
torque converter(new design)
blue&grey

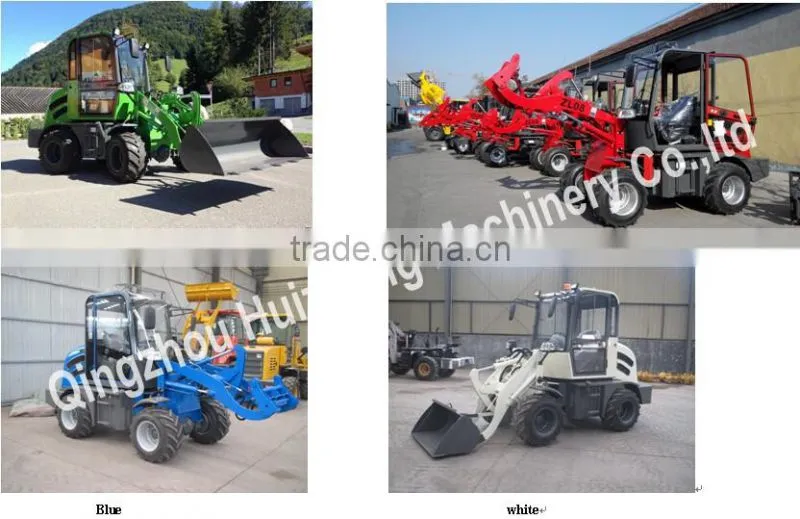

Customer can choose different color,normally is green,red,blue,white,yellow.
HUIZHONG INTERNATIONAL BUSINESS OFFICE:

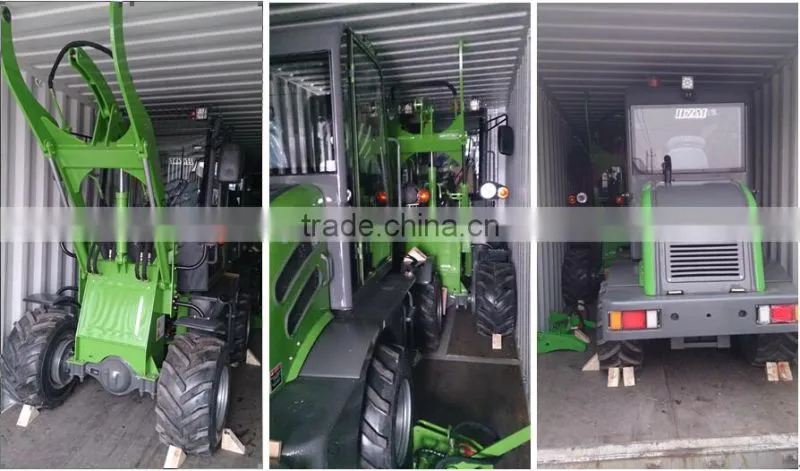

1 unit for 20ft container,3-4 units for 40HC

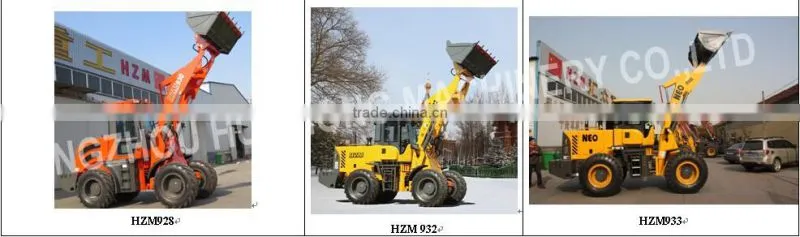

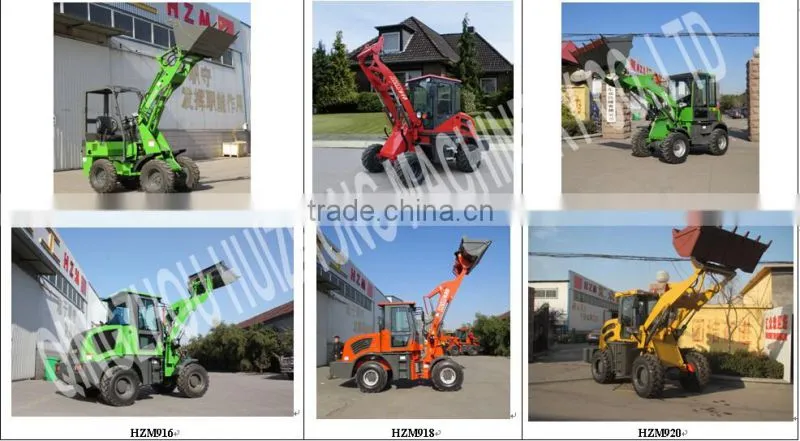

you can find other model loader in our factory.
