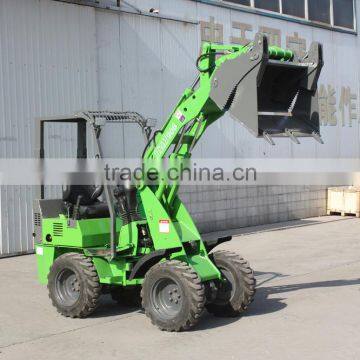

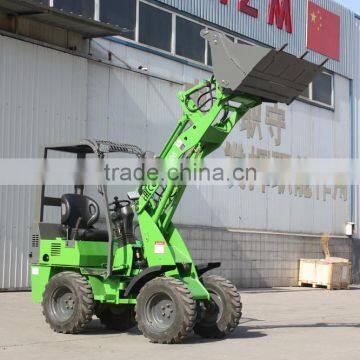

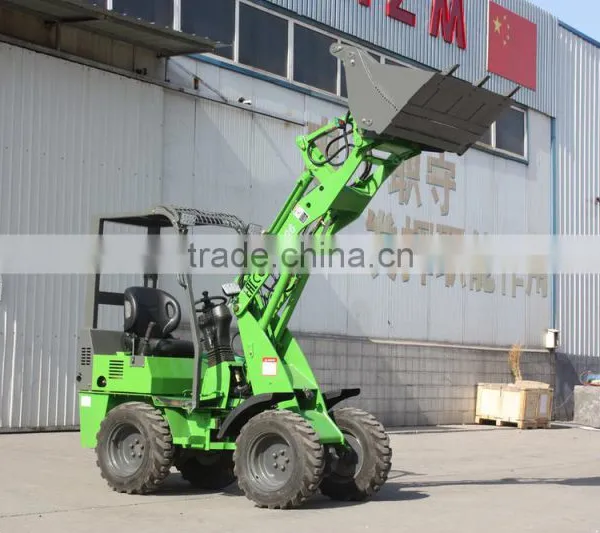

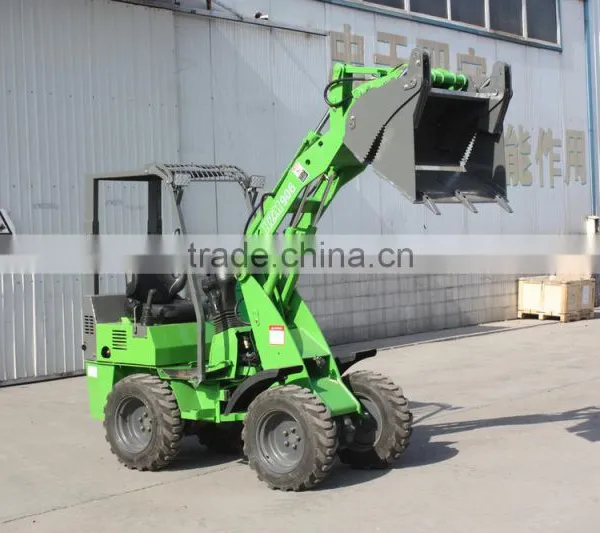

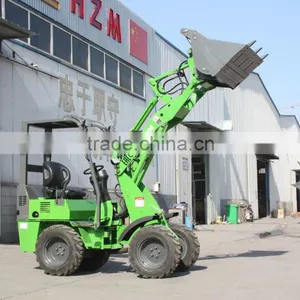

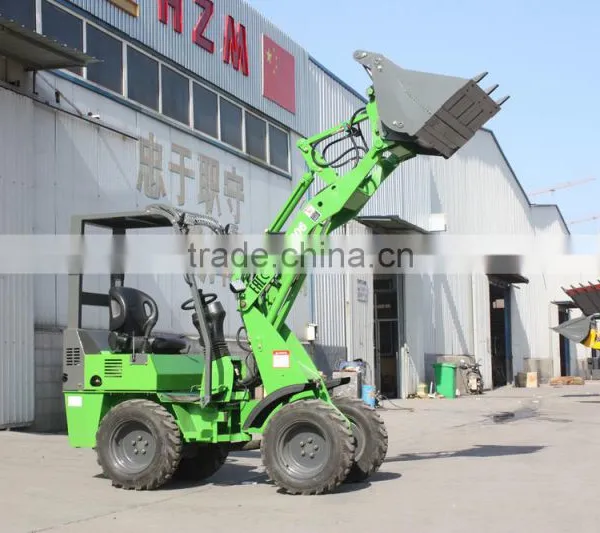

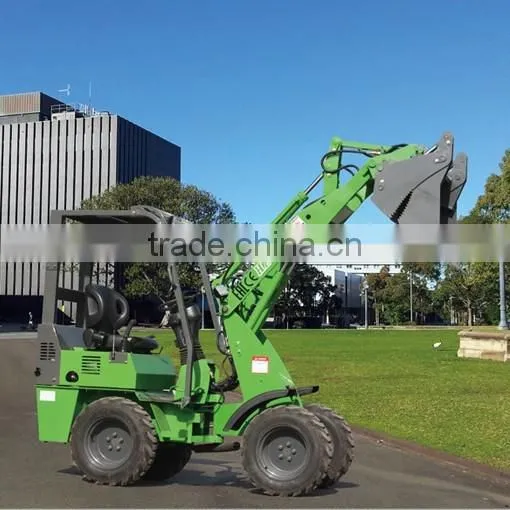

HZM 0.6t CE Mini Hydraulic Loader HZM906 With Perkins Engine

Name: HZM 0.6t CE Mini Hydraulic Loader HZM906 With Perkins Engine
Brand: HUIZHONG
SKU: 143314682
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

JN906

Qingzhou Huizhong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number JN906

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 3690X1050X2300

Rated Load 600kg

Certification CE,ROPS,ISO9001

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

HZM 2015new design mini multifunction wheel loader with ce and ISO9001

This model wheel loader is our new design wheel loader with brand new appearance,different cabin ,new painting technology and different performance.

Specifications of HZM906mini wheel loader

Specification	overall weight(kg)	1500
	L×W×H(mm)	3690X1050X2300
	rated bucket capacity(m³)	0.25-0.4
	Rated load(kg)	600
	Maximum dump height (mm)	2350
	Bucket indicator	Yes
	Max. breakout force(KN)	-
Engine	Model	Perkins 403D-11
	Type	In-line arrangement, single cyclinder,direct-injection,Water cooling,
	Rated power(	18.5KW
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	-
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	-
Hydraulic system	Distribution of work valve	DF15.2C
Hydraulic system	Working pump	CBF32
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	3400
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	27*8.5-15TL
Tyres
