Home > Products > Optional Accessories > Wheel Loader With Bale Clamp,bale Grab

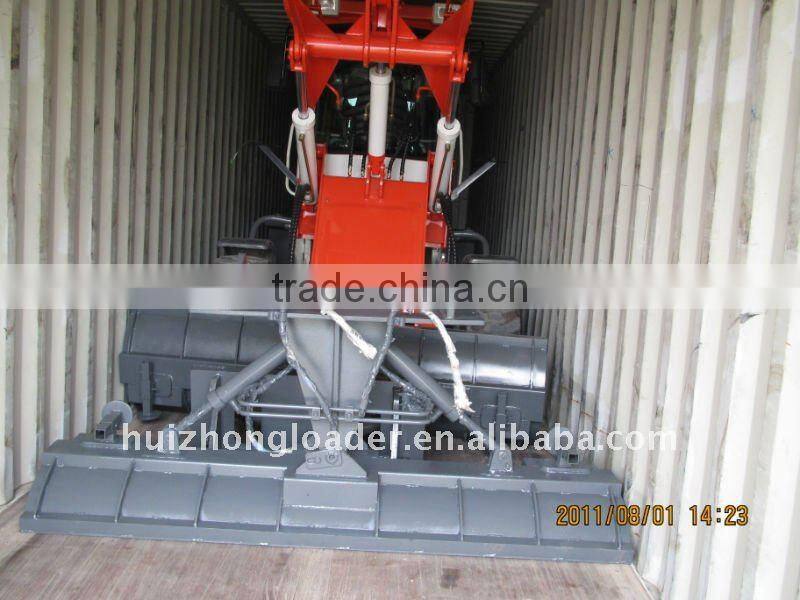

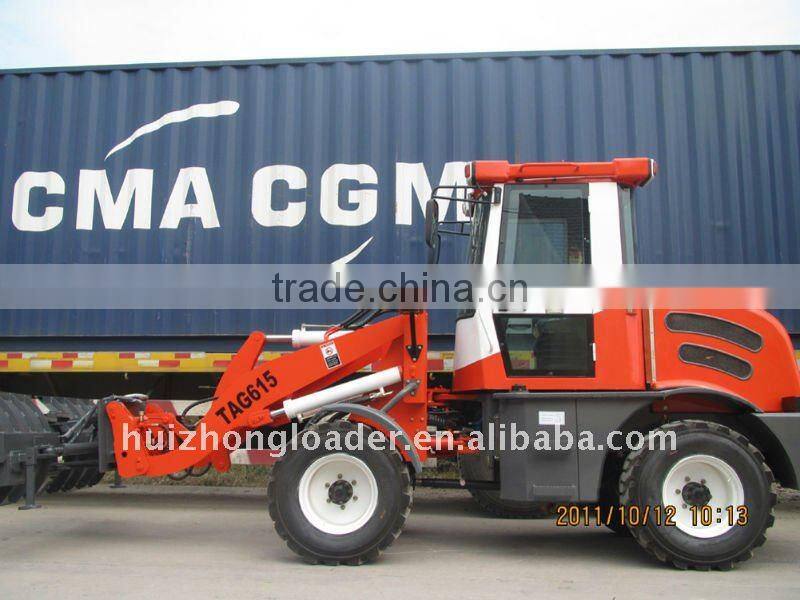

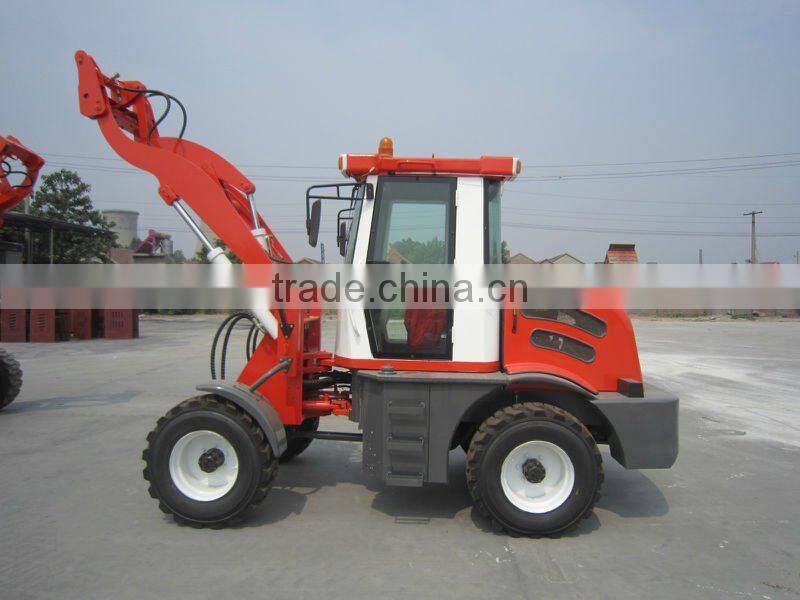

Wheel Loader With Bale Clamp,bale Grab
- Qingdao
- T/T Money Gram
You May Like
Product Details
| Condition | New | Brand Name | HUIZHONG | |
| Model Number | ZL15F | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 4760x1680x2550mm | Rated Load | 1500KG | |
| Certification | CE mark |
Product Description
Specifications

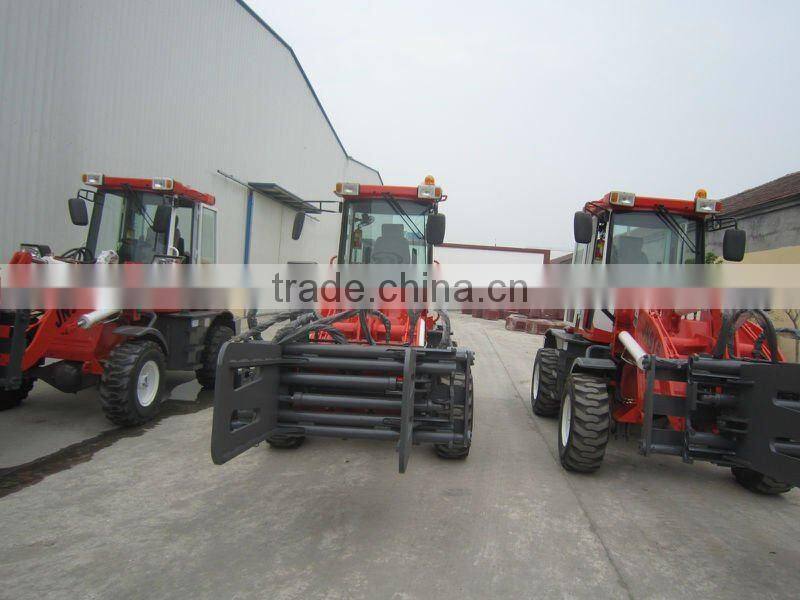

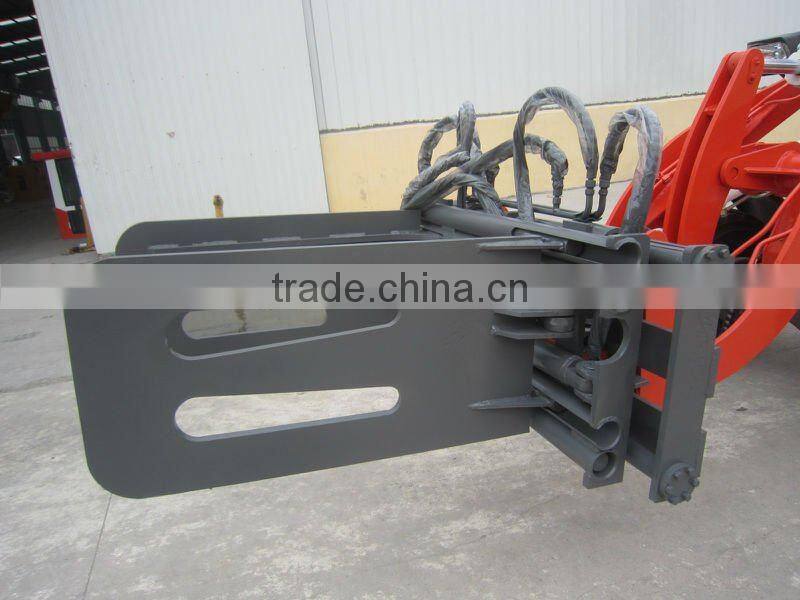

loader with bale grab* Quick change attachment
* Load 1500kg,
* New fashion cab loader
*mini wheel loader joystick,euro III
* CHINA mini wheel loader with Xinchai 4 cylinders EURO III and EPA III approved diesel engine;
* Joystick,quick hitch
* Adjustable steering wheel

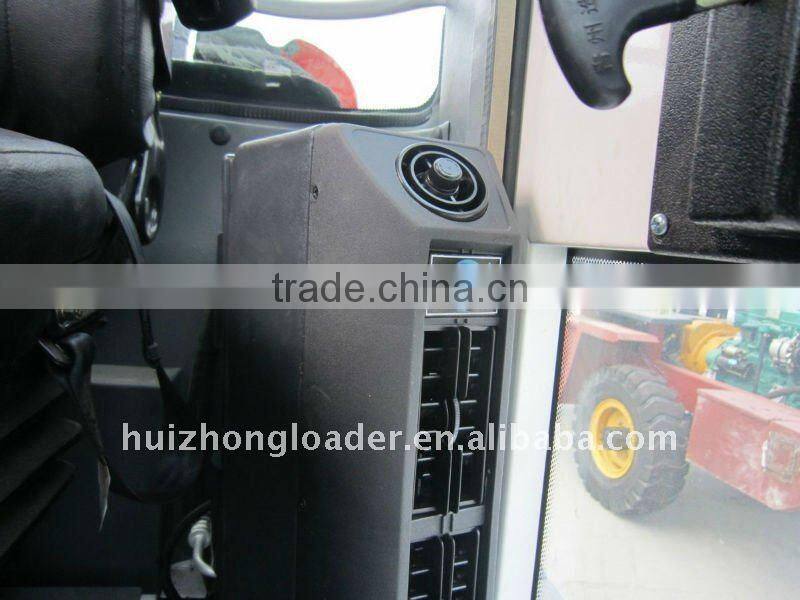

* Heater cab,New adjustable seat
China mini wheel loader CE with optioanal tools:
Pallet fork,snow shovel,multi-function bucket,grass fork,4 in 1 shovel,vacuum wide tyres.
Specifications of ZL15F wheel loader with bale grab
Specification | overall weight(kg) | 3600 |
L×W×H(mm) | 4760x1680x2550mm | |
rated bucket capacity(m3) | 0.7 | |
Rated load(kg) | 1500 | |
Maximum dump height (mm) | 2750 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model | xinchai498(EUROIII)/changchai4L68 |
Type | In line,direct injection,four-stroke,liquid cooled | |
Rated power(kw) |
36.8kw | |
Rated speed(r/min) | 2200 | |
Transmission system | Model of torque converter | YJ240 |
Type | Single-stage,3 elements | |
Gearbox type | Axial full power shift transmission | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | ZL20B |
Working pump | CBGj1045,CBGq1018 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | lift and right 27±1° | |
Min turning radius(mm) | 3000 | |
Brake system | Brake type | oil brake(vacuum booster) |
Tyres | Standard tyres | 12-16.5 |
Optional wide tyres | 14-17.5 |
