4:3 TFT Color Display 262k-colors 3.5 Inch RTP TFT 240RGBx320dots
1. General Description
·3.5", 240 x RGB x 320 dots, 262k colors, transmissive, normally white, amorphous silicon TFTLCD module.
·Viewing angle (U/D/L/R): 50/60/75/75.
·LCD controller/driver: “NOVATEK” NT39122B or equivalent.
·8080-series MCU 8-/9-/16-/18-bit parallel interface,
6800-series MCU 8-/9-/16-/18-bit parallel interface,
4-/3-pin serial interface
·Pixel in stripe configuration.
·White LED backlight: 12V 60mA

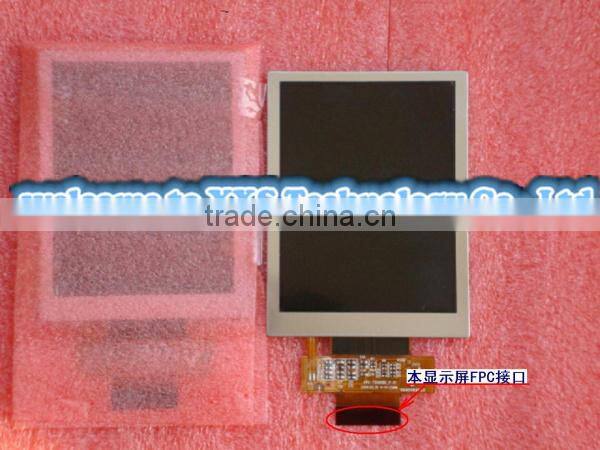

·FPC connection.
·RoHS Compliance.
2. Mechanical Specifications

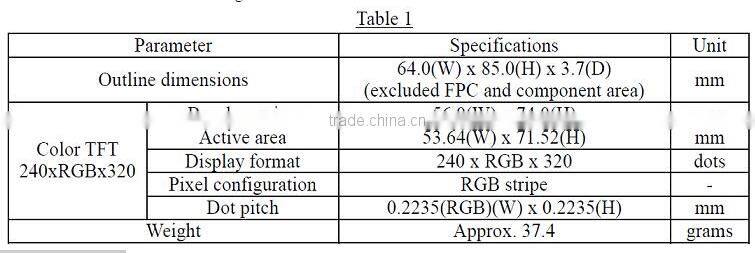

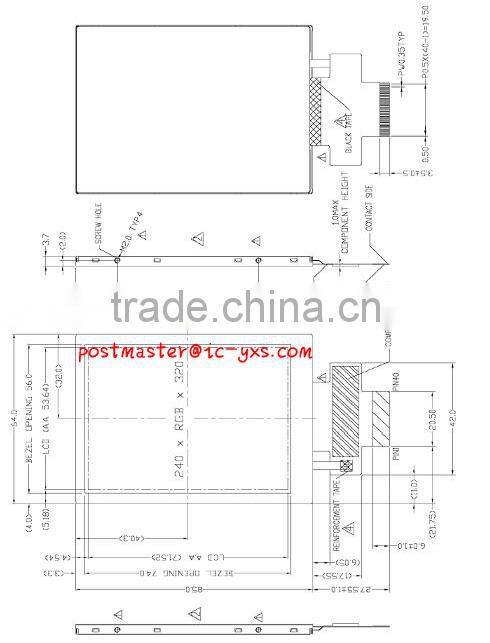

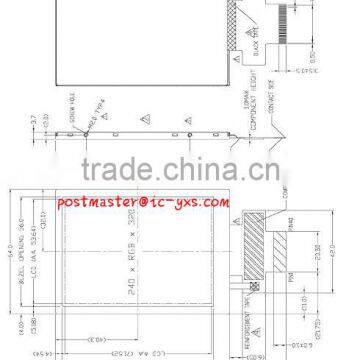

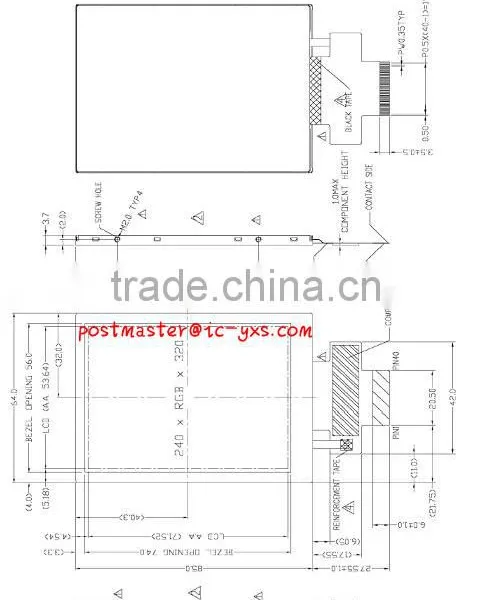

The mechanical detail is shown in Fig. 1 and summarized in Table 1 below.

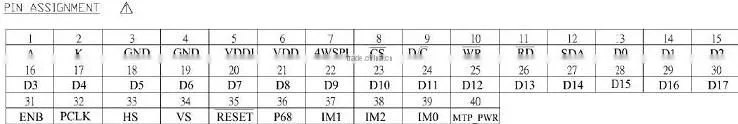

3. I/O Interface:
4. Module Spec.
