Home > Products > Mechanical and electrical products > WIK25GA370 gear motor dc12V 92RPM Metal gear dc motor for DIY miniature motor with wire

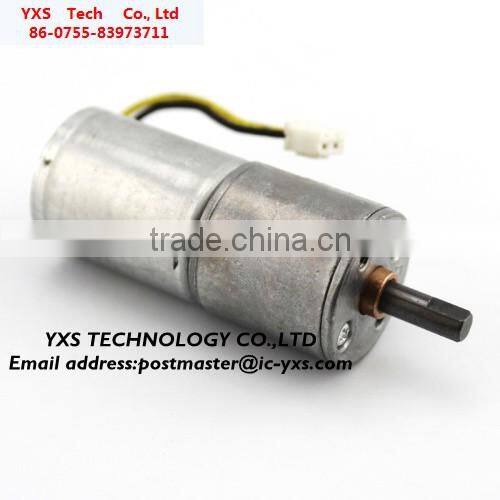

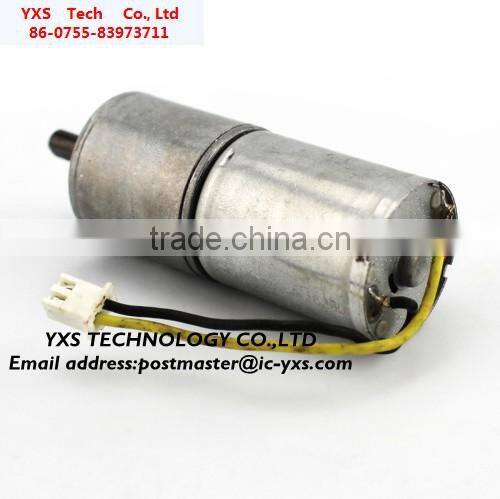

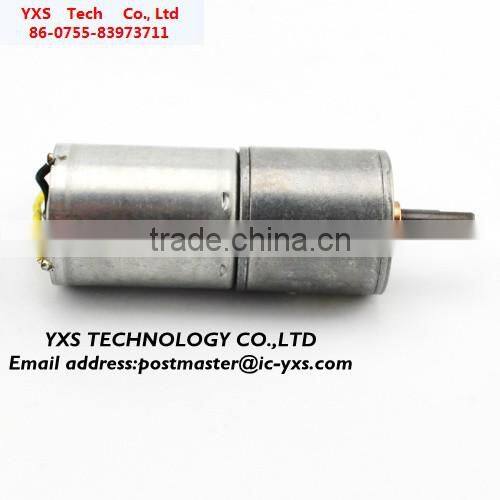

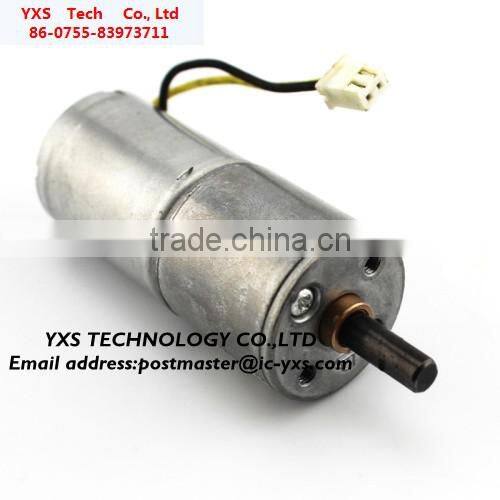

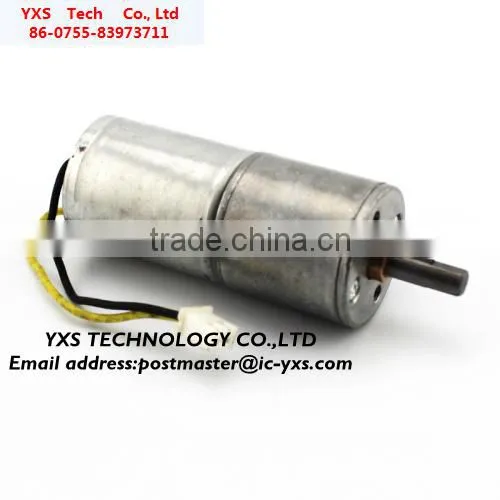

WIK25GA370 gear motor dc12V 92RPM Metal gear dc motor for DIY miniature motor with wire
US$ 6.51 - 9.98
/ Piece
10 Pieces(Min. Order)
- shenzhen
- T/T Credit Card
You May Like
-
RS-385PH 385 motor dc24V 7800rpm dc motor
-
Import Japan high speed motor RT-553SA 220V 21000rpm for dc motor
-
5MM coreless motor dc3V 48500 RPM For high speed hollow cup motor
-
For Car seat adjust motor Strong magnetic high torque dc12 V 3600 RPM Long axis dc motor
-
Crazy Motor 3508 KV400 KV590 KV Motor Designed for medium-sized multi-rotor aerial design
-
RS-555SH-2583LV Strong magnetic dc15V 4500rpm 125ma dc motor high torque and power for car pump motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | WIK25GA370 | Usage | Boat, Electric Bicycle, Fan, Home Appliance | |
| Certification | CE | Type | Gear Motor | |
| Torque | 300mN.m | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Drip-proof | |
| Speed(RPM) | 92RPM | Continuous Current(A) | 100mA | |
| Output Power | n/a | Voltage(V) | 12v | |
| Efficiency | IE 1 |
Product Description
[Rated voltage]: 12v
[No-load speed]: 92RPM
[Reduction ratio]: 1:86
[No load current]: about 100mA
[Stall current]: approximately 1.5A
[Product Torque]: 300mN.m
[The total length of the gear box ]: 56.2MM (where the gearbox length 24.4mm)
[Diameter]: Gearbox diameter 25mm, 24.2mm diameter motor
[Shaft length]: about 13mm
[Line] length: about 64mm (excluding white small head)
[Shaft]: 5mm (double-sided edge flat pin shaft, the thickness of the cutting edge after 3.9mm)
[Weight]: about 63g
