Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Original TOCP-155 Fiber Optic Wire TOCP155 Fiber Optic Cable
US$ 8.5 - 30.15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
Huawei
Model Number:
TOCP-155
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Real Copper GB Copper Lugs OT-10A Copper Wire Connector TerminalsUS$ 1.97 - 1.97MOQ: 1 Piece -
Terminal Blocks KF301-2P 300V/16A 5.0MM Blue Terminal Can be Spliced a 1 pUS$ 0.85 - 5.63MOQ: 100 Pieces
-
PCB Connection Terminal Barrier Terminal Block Gold Gilt Copper Solder Pin Two Three Four BitUS$ 2.5 - 7.5MOQ: 1 Piece
-
YXS Electron Tube Socket Ceramic Small 9 Feet Socket GZC9-F-G Gold-plated FeetUS$ 5 - 15MOQ: 1 Piece
-
4-20 mA One in One Out or One in Two Out Signal Isolation Barrier TransmitterUS$ 25 - 33MOQ: 1 Piece
Place of Origin
Japan
Brand Name
Huawei
Model Number
TOCP-155
Product Description

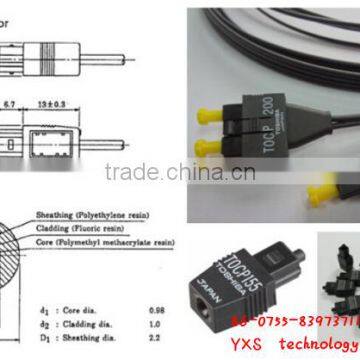

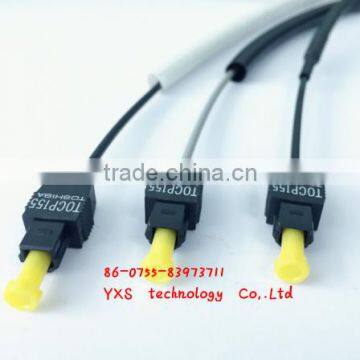

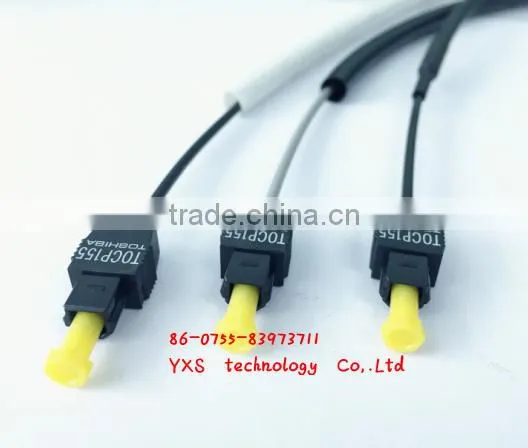

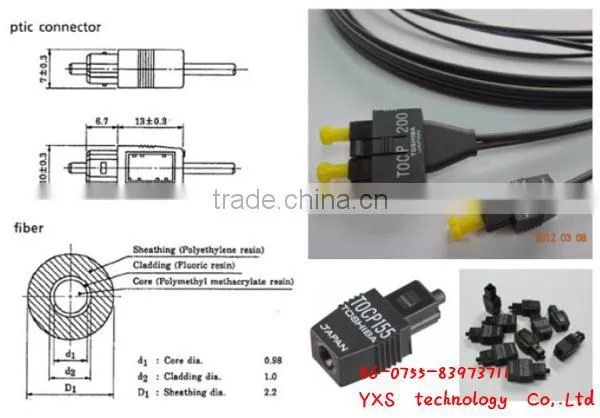

Original TOCP-155 fiber optic lines TOCP155 fiber optic cable 10 meters long
1, the transmission bandwidth, immunity to electromagnetic interference, flexibility and good resistance to vibration, stable and reliable signal transmission
2, high temperature and low temperature (-20 to 70 degrees Celsius)
3, easy installation and connection, no maintenance
4, in line with Agilent's universal connection system Standard
5, in line with international standards (EIA / TIA 569, CENELEC EN 50174-2)
6, in line with Profibus, Interbus, ControlNet and SERCOS standard
Applications:
Compatible with link F05 interfaces common optical link transceivers, points simplex and simplex locked.
Technical Parameters:
Core Diameter (mm):
Ø1.0
Diameter (mm):
Ø2.2 Ø4.0 Ø5.0 Ø6.0
Exterior:
PE-coated black
Operating temperature
-55 ℃ ~ + 70 ℃
Connector Type
TOCP155 connector connected clamping structure
Transmission loss (wavelength: 650nm)
180 ~ 200dB / km
Insertion Loss (wavelength: 650nm)
Max: 1.0dB
Interchangeability
Max: 1.0dB (stochastic transformation)
The minimum bend radius
25mm
tensile strength
Max: 1.0dB (0 ~ 70N)
Vibration test
Max: 1.0dB (5 ~ 50Hz, 1.5mm amplitude)
