CXJ-1500 Model Marine Centrifugal Oil Separator

Specifications

Series CXJ Marin Centrifugal Oil Separator:
1.bunker fuel purifier
2.effectively remove the water and impurities from the oil

                                         CXJ-1500 Model Marine Centrifugal Oil Separator

Application:

Series CXJ disc-type Centrifugal Separator (Marin Centrifugal Oil Separator) is mainly used for the purification of the heavy fuel oil in the ship, which can effectively remove the water and impurities from the oil, play a role in the clarification and purification, reduce operating costs and extend the life of the engine. Meanwhile, this machine can be applied to heavy diesel oil, lubricating oil, hydraulic oil, turbine oil clarification and purification to slow wear of diesel engine or other types of machines, and extend the service life of the machine and oil. This machine can also be applied to other areas of non-homogeneous suspensions or emulsions separation.

Features:

1. An ultra-high speed separator to the continuous separation of solid impurities and moisture from the pending purification medium.
2. Automatic trash, continuous and efficient
3. Efficient new heating system, high efficiency, uniform heating.
4. Integrated multi-system, the operation is simple, safe and reliable.
5. Models of the design, manufacture and acceptance comply with the the disc separator GB/T5745-2002 "marine"

Working principle:

Use of different density of the liquid and liquid, liquid and solid turbid liquid in the high-speed rotation of the drum, having a different density multi-component under the effect of centrifugal force into a circular annular shape, the maximum density of the solid particles outward movement accumulate in the drumthe circumferential wall of the light phase liquid in the innermost layer. Drum, disc, drum space is divided into a number of thin-layer separation space, thus greatly reducing sedimentation distance, improve and increase the separation effect. Any particles reaches the disc inner surface at the limit between the two discs can be separated out. Finally, oil discharged out through the light-centripetal-pump,water discharged out by the heavy-centripetal-pump, and the partciles discharged by the particle-pump.

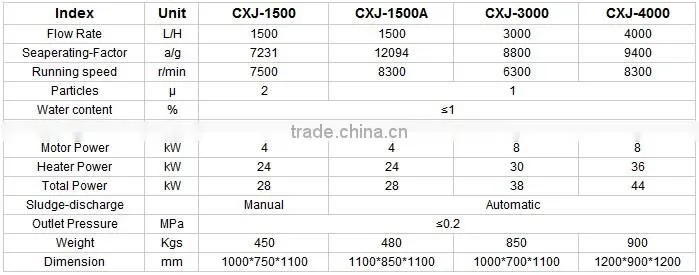

Parameters:

Certificates:

Contact person: April

1. Whatsapp/Mobile: +86 139 8327 9722

2. Skype: nakin-salesapril

3. Tel: 86-23-85575927

4. Wechat: A849563528

Don't hesitate to contact us. Hoping to build one friendly business relationship.
