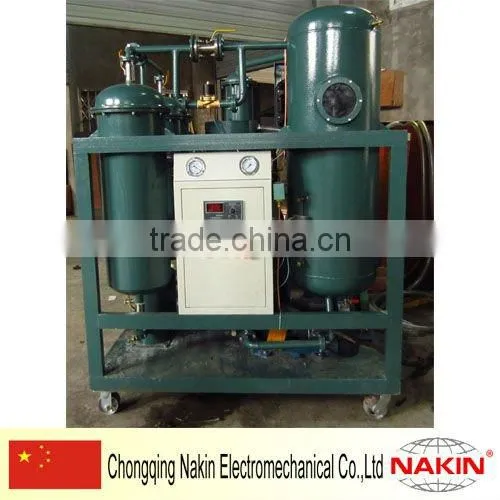

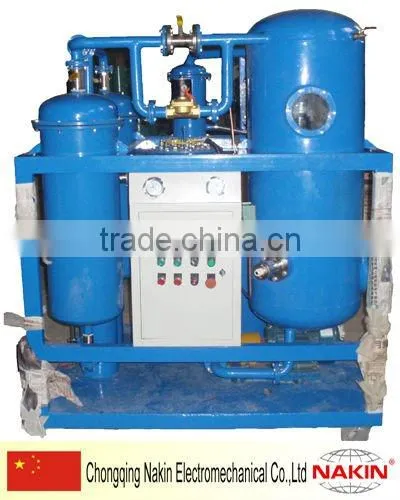

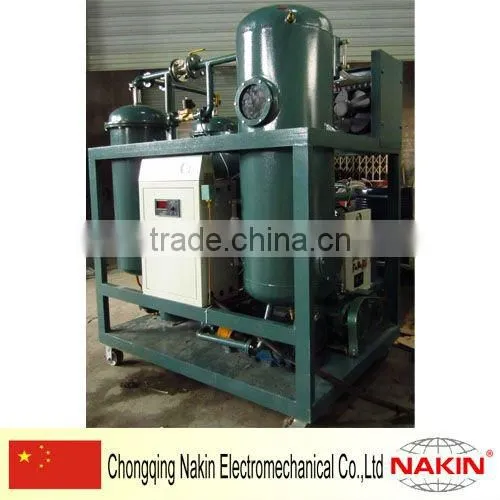

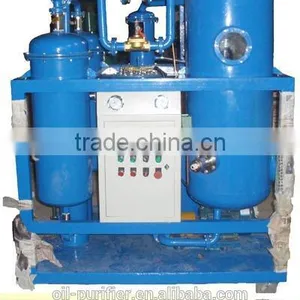

Vacuum Series Turbine Oil Treatmern Equipment
Turbine Oil Treatmern Equipment Application:
Series TY vacuum turbine oil purifier mainly be used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently break emulsification, separate water, gas, particles from oil. So that makes sure quality of treated oil to achieve new oil’s standard, ensure whole turbine system work safely. This equipment use a special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series TY is a perfect turbine oil purifier for live line work; also it can purify low viscosity hydraulic oil and lube oil.
Turbine Oil Treatmern Equipment Features:
1. Special polymer materials as filter medium good at broken emulsion, dewatering, removing particles
2. Duplex-Stereo film evaporation technology, can rapidly and effectively separate water, gas from oil.
3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak.
7. Work online with stream turbine, hydraulic turbine.
Turbine Oil Treatmern Equipment Technical Parameters:
Index Name |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
Working vacuum |
MPa |
-0.06~-0.095 |
|||||||
Working pressure |
MPa |
≤ 0.4 |
|||||||
Temperature range |
°C |
20 ~80 |
|||||||
Demulsifying value |
min |
≤ 15/min(GB/F7035) |
|||||||
Our products list as following:
1.Insulating oil purifier:
ZY Series: Vacuum insulation oil purifier
ZYD Series: Double-stage vacuum insulation oil purifier
ZYM Series: Mobile type transformer oil purifier
2.Turbine oil purifier:
TY Series: Vacuum turbine oil purifier
3.Lubricating oil purifier
TYA Series: Vacuum lubricating oil purifier
4.Vacuum engine oil purifier
5.Coalescence separation diesel oil, gasoline oil and fuel oil purifier
6.Water oil separator, oil purifier machine
7.Transformer oil regeneration device
8.Plate pressure oil purifier
9.Portable oil purifier
10.insulating oil dielectric strength tester
