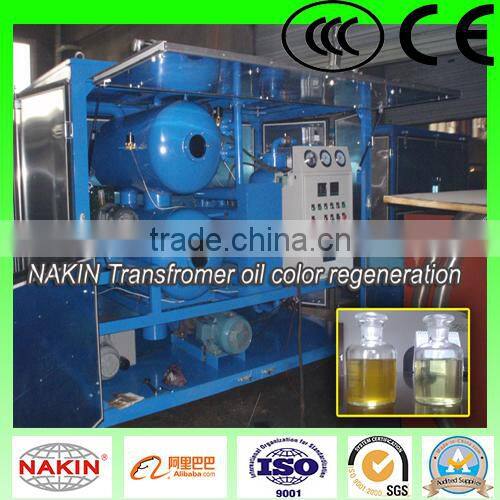

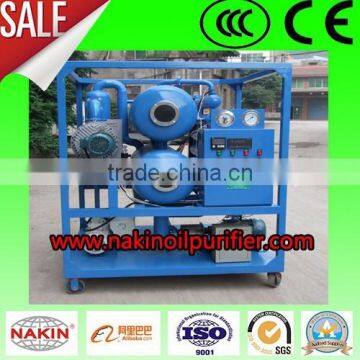

Trailer-type Dirty Transformer Oil Cleaning System
Application:
According to user’s requirements, we developed Series ZYM mobile insulating oil purifier, this machine is mainly used for dealing with unqualified transformer oil, switch oil, mutual inductor oil, it can rapidly remove water, gas, particles from oil, improving insulating oil’s properties. Besides all functions of series ZYD, the best advantage of ZYM is that can move long distance working in field.
Features:

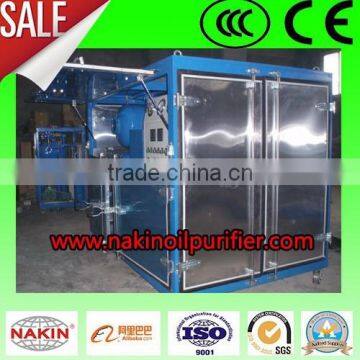

1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car types, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Advantages:
Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field.
Technical Parameters:
Index name |
Unit |
ZYM-30 |
ZYM-50 |
ZYM-65 |
ZYM-100 |
ZYM-150 |
|
Flow rate |
L/H |
1800 |
3000 |
4000 |
6000 |
9000 |
|
Working vacuum |
MPa |
-0.08~-0.099 |
|||||
Working pressure |
MPa |
≤ 0.4 |
|||||
Temperature range |
°C |
20 ~80 |
|||||
Dielectric strength |
KV |
≥ 70 |
|||||
Water content |
ppm |
≤ 3 |
|||||
Gas content |
% |
≤ 0.1 |
|||||
Particles size |
μ |
≤ 1 |
|||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
|||||
Working noise |
dB(A) |
≤65~85 |
|||||
Heating power |
Kw |
30 |
30 |
78 |
95 |
110 |
|
Total power |
Kw |
35.5 |
37.5 |
87 |
104 |
121 |
|
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ42 |
Φ50 |
Φ50 |
|
Purifier weight |
kg |
550 |
720 |
830 |
950 |
1120 |
|
Trailer weight |
kg |
300 |
300 |
450 |
450 |
500 |
|
Purifier Dimension |
L |
mm |
1400 |
1400 |
1650 |
1700 |
1820 |
W |
mm |
1100 |
1100 |
1200 |
1200 |
1320 |
|
H |
mm |
1300 |
1300 |
1500 |
1500 |
1620 |
|
Trailer Dimension |
L |
mm |
2750 |
2750 |
3000 |
3080 |
3400 |
W |
mm |
1400 |
1400 |
1620 |
1620 |
1710 |
|
H |
mm |
1100 |
1100 |
1100 |
1100 |
1100 |
|
Other services (optional)
1.Trailer type with fully closed structure (waterproof and dustproof)
2.Different kinds of vacuum pump, oil pump, and electric parts are available.
3 .Anti-explosion (EX type) electric parts.
4. Moisture sensor and dielectric strength tester can be installed.
5.Filter elements for different requirements on filtering precision
6.Stainless steel material for oil purifier body.
7. Automatic PLC control system
