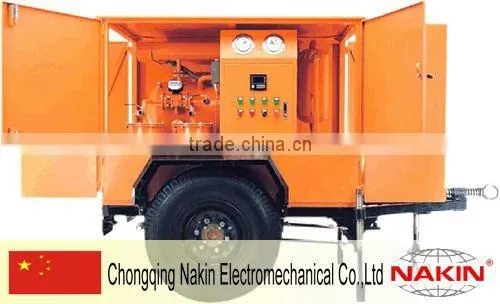

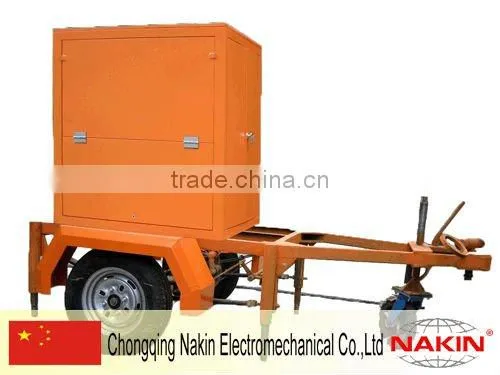

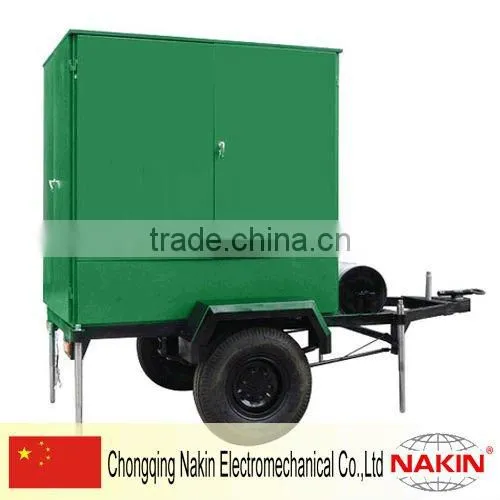

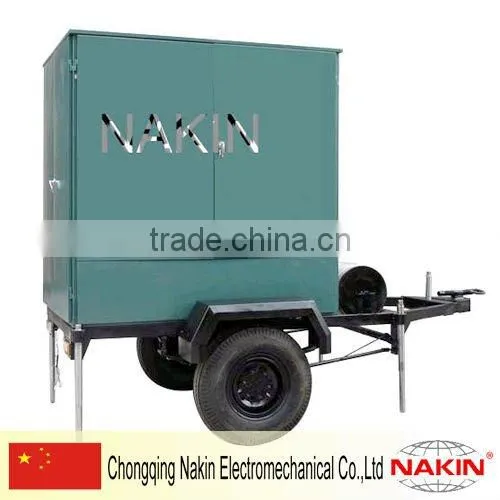

Multigrade Trailer series Dielectric Liquid Filtering Euipment
Application:
ZYM is come out because of many clients requirements. As their working place is variable. they need a full closed type, easy moving like a car, which also waterproof,dustproof and efficient oil purifier we base on our ZY series and ZYD series, designed ZYM mobile(trailer) type vacuum transformer oil purifier.
Series ZYM is also mainly used for recovering unqualified transformer oil, switch oil, mutual inductor oil,capacitor oil,dielectric oils and so on.it adopts unique vacuum source, efficient removing free water, gas, particles and other impurities from oil, restoring oil's good condition like pure level,dry level and dielectric strength etc.
Besides, ZYM is mobile (trailer) type, completely closed structure, waterproof, dustproof . which the best advantage of ZYM is that can move long distance working in field.
Advantages:
Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field.
Technical Parameters:
Index name |
Unit |
ZYM-30 |
ZYM-50 |
ZYM-65 |
ZYM-100 |
ZYM-150 |
|
Flow rate |
L/H |
1800 |
3000 |
4000 |
6000 |
9000 |
|
Working vacuum |
MPa |
-0.08~-0.099 |
|||||
Working pressure |
MPa |
≤ 0.4 |
|||||
Temperature range |
°C |
20 ~80 |
|||||
Dielectric strength |
KV |
≥ 70 |
|||||
Water content |
ppm |
≤ 3 |
|||||
Gas content |
% |
≤ 0.1 |
|||||
Particles size |
μ |
≤ 1 |
|||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
|||||
Working noise |
dB(A) |
≤65~85 |
|||||
Heating power |
Kw |
30 |
30 |
78 |
95 |
110 |
|
Total power |
Kw |
35.5 |
37.5 |
87 |
104 |
121 |
|
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ42 |
Φ50 |
Φ50 |
|
Purifier weight |
kg |
550 |
720 |
830 |
950 |
1120 |
|
Trailer weight |
kg |
300 |
300 |
450 |
450 |
500 |
|
Purifier Dimension |
L |
mm |
1400 |
1400 |
1650 |
1700 |
1820 |
W |
mm |
1100 |
1100 |
1200 |
1200 |
1320 |
|
H |
mm |
1300 |
1300 |
1500 |
1500 |
1620 |
|
Trailer Dimension |
L |
mm |
2750 |
2750 |
3000 |
3080 |
3400 |
W |
mm |
1400 |
1400 |
1620 |
1620 |
1710 |
|
H |
mm |
1100 |
1100 |
1100 |
1100 |
1100 |
|
NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages Vacuum insulating/transformer oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type Vacuum transformer oil treatment, oil filtration machine
TY-Vacuum Turbine oil purifier, oil treatment Plant
TJ-Coalescence and separating light/fuel/gasoline oil filter, oil purifier machine
TYA-Vacuum Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JYWL-Horizontal-closed type filtration device
TPF-Waste cooking oil recycling machine
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure turbine/transformer/engine/diesel/hydraulic oil filter, oil purifier machine
JL-Portable turbine/lube/insulating oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
