Top-quality Double-stage Vacuum Transformer Oil Restoration Set

 Top-quality Double-stage Vacuum Transformer Oil Restoration Set

Application:

For improving transformer oil dielctric strength and keeping absolutely clean and dry, series ZYD double stages transformer oil filtration machine adopts double stages vacuum dehydration and degasification system, it equips vacuum pump, booster pump, precise filter elements and unique- designed two horizontal vacuum chambers, which can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil.

ZYD vacuum transformer oil filtration machine is specially suitable to purify high-grade transformer oil, super-voltage transformer oil and new transformer oil of more than 110KV substation.

Especially as substation maintenance need a rig that can quickly and reliably process transformer oil to meet or exceed very stringent specifications, ZYD double stags vacuum transformer oil filtration machine can purify online and onsite, also can be used as indepenent vacuum drying and filling for transfomers.


 Features:
1. Two stages vacuum separating system, strong power of vacuum evacuating, horizontal film evaporation technology.

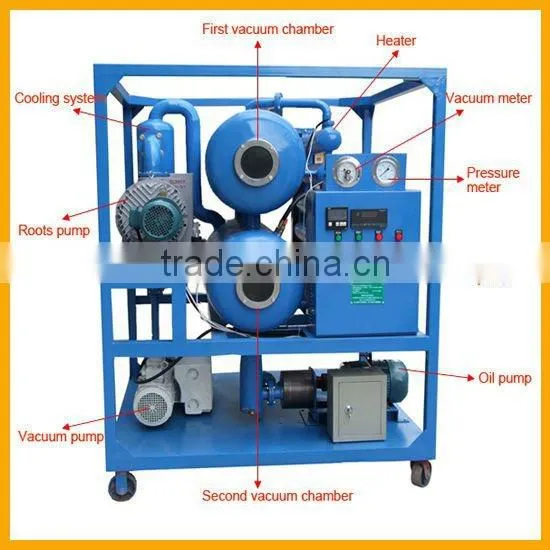

2. Unique-designed two horizontal vacuum chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protecting system can ensure working of machine safe and reliable.
4.Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Interlock protecting system and emergency stop function, when any fault happen, the machine will stop automatically. Making sure oil pump, vacuum pump, motors works harmoniously.
7. As independent vacuum source with the functions of vacuum filling for transformers and electric plants, vacuum drying and purifying of oil transformers online.
8. Top-quality components and workmanship ensure years of maintenance-free operation and performance.


Technical Parameters

NAKIN Company products list as following:

ZY-high effective vacuum transformer oil purifier, oil filtration

ZYD-Double stages insulating oil purifier, oil treatment, oil purification

ZYM-Mobile/trailer type transformer oil treatment, oil filtration machine

AD-Air dryer for drying electric equipments

TY-Turbine oil purifier, oil treatment

TJ-Coalescence and separating oil filter, oil purifier machine

TYA-Lubricating oil purifier/hydraulic oil purification

TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine

JZS-Engine oil regeneration system, waste oil recycling

JZC-Waste black oil distillation plant

BZ-Transformer oil regeneration device, oil purifier

PF-Plate pressure oil filter, oil purifier machine

JL-Portable oil purifier, oil filtering, oil filter

IIJ-II-BDV oil tester, insulating oil dielectric strength tester

NKEE-Oil moisture sensor, water content sensor
