Chemical Transformer Oil Treatment/restoration/reuse set
- 1000 Set / Sets per Month
- Chongqing
- T/T
- Waste Oil Regenerating Equipment for Various Dielectric Oils
- BZ Transformer oil regeneration Equipment
- Transformer OLTC On-load Tap Changer Oil Purifier//separator/Regeneration/Dehydration Machine
- Insulation Oil Regeneration Machine
- On-load Tap Changer Oil Filter Oil Filtration Machine Oil Decanter
- Specilize Model BZ Transformer Oil Regeneration Unit
Product Details
Condition: | New | Flow: | 1800~18000 liters per hour | Working Pressure: | <0.4MPa |
Place of Origin: | Chongqing, China | Brand Name: | NAKIN | Model Number: | ZYD |
Usage: | Transformer Oil | Certification: | CE |
Product Description

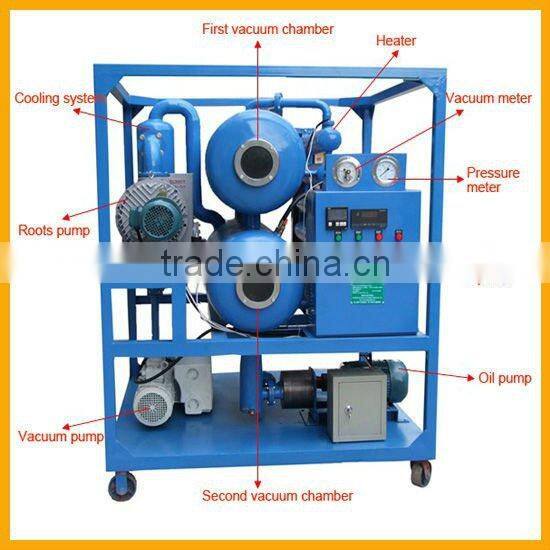

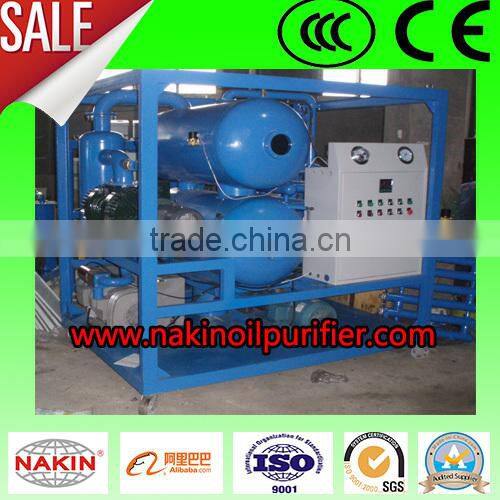

Chemical Insulating Oil Treatment/restoration/reuse set
Application:
Series ZYD Double-stage transformer oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil’s dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYD oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.
Technical Parameters:
Index name | unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
Working vaccum | MPa | -0.08~-0.099 | |||||||
Working pressure | MPa | ≤ 0.4 | |||||||
Temperature range | °C | 20 ~80 | |||||||
Dielectric strength | KV | ≥ 70 | |||||||
Water content | ppm | ≤ 3 | |||||||
Gas content | % | ≤ 0.1 | |||||||
Particles size | μ | ≤ 1 | |||||||
Power supply |
| 380V 50HZ 3Ph (As per user’s option) | |||||||
Working noise | dB(A) | ≤65~85 | |||||||
Heating power | Kw | 30 | 30 | 95 | 110 | 125 | 136 | 151 | |
Total power | Kw | 35.5 | 37.5 | 104 | 121 | 135 | 148 | 168 | |
Inlet(Outlet) | mm | Φ25 | Φ25 | Φ42 | Φ50 | Φ50 | Φ60 | Φ60 | |
Weight | kg | 450 | 550 | 870 | 950 | 1250 | 1850 | 2100 | |
Dimension | L | mm | 1500 | 1500 | 1950 | 2100 | 2200 | 2250 | 2400 |
W | mm | 1250 | 1250 | 1300 | 1350 | 1350 | 1400 | 1450 | |
H | mm | 1700 | 1750 | 2100 | 2200 | 2200 | 2200 | 2200 |
NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages Vacuum insulating/transformer oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type Vacuum transformer oil treatment, oil filtration machine
TY-Vacuum Turbine oil purifier, oil treatment Plant
TJ-Coalescence and separating light/fuel/gasoline oil filter, oil purifier machine
TYA-Vacuum Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JYWL-Horizontal-closed type filtration device
TPF-Waste cooking oil recycling machine
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure turbine/transformer/engine/diesel/hydraulic oil filter, oil purifier machine
JL-Portable turbine/lube/insulating oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
