Help CenterDirty Vegetable Oil Treatment Plant/Vegetable Oil Recovery Plant
Related Products
-
NK TPF-10 Cold Carbon Steel Used Cooking Oil Filtration DeviceUS$ 7,500 - 25,000MOQ: 1 Set -
Waste Cooking Oil Filter/purification System (for Edible Usage)US$ 5,500 - 18,000MOQ: 1 Set
-
Dirty Vegetable Cooking Oil Filter/purification Set With Vacuum Filtration SystemUS$ 7,500 - 16,000MOQ: 1 Set
-
TPF Dirty (soybean) Cooking Oil Purification/filter DeciveUS$ 7,000 - 24,000MOQ: 1 Set
-
CQ Cooking Oil Purifier/regeneration Machine for FactoriesUS$ 7,500 - 19,500MOQ: 1 Set
Application:
TPF oil filtration machine is special for filtering waste cooking oil, dirty vegetable oil, trench oil, swill oil and animal oil etc. It effectively and completely removes particles, odor, water, acid and alcohol etc. from waste oil. The treated oil is clean, limpidity, and good smell. TPF is a good purification machine for Fry food factory, oil restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store. According to the treated oil usages, we can choose different machine body. For edible usage, we suggest to choose stainless steel body; for industrial, we suggest to choose steel carbon body. According to different working place, we recommend Skid type and mobile type (Trailer with pneumatic tyre)
Machine Features:
1. TPF is composed of vacuum filtration system and pressure filtering system. Vacuum filtration system equips three grades filters, all of mesh filters are made of stainless steel, which make sure anti-corrosion and reliable. Pressing filtering system uses filter paper or filter bag as filter-media, making sure filter size is less than 1 micron.
2. TPF vacuum filtration system adopts the vacuum vaporizing technology to remove water, odor, alcohol and volatilization materials to inhibit acid value and peroxide value increases.
3. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Specifications:
Parameters |
Unit |
TPF -10 |
TPF -30 |
TPF -50 |
TPF -100 |
Flow rate |
L/H |
600 |
1800 |
3000 |
6000 |
Vacuum degree |
Mpa |
-0.06 ~- 0.095 |
|||
Working pressure |
Mpa |
≤0.4 |
|||
Working Temperature |
℃ |
0~80 |
|||
Clean Degree |
NAS |
6 Grade |
|||
Impurity Size |
μm |
1 |
|||
Gas Content |
% |
0.1 |
|||
Acid Value |
mKOH/g |
≤0.05 |
|||
Water content |
PPM |
≤10 |
|||
Working noise |
dB(A) |
≤75 |
|||
Electric heating power |
KW |
27 |
27 |
30 |
60 |
Total electric power |
KW |
30 |
30 |
33 |
64 |
Inlet (outlet) caliber |
mm |
25 |
25 |
32 |
42 |
Size |
mm |
1700x1050x1750 |
1800x1050x1800 |
1800x1150x1800 |
2000x1250x1950 |
Weight |
Kg |
650 |
720 |
880 |
1000 |

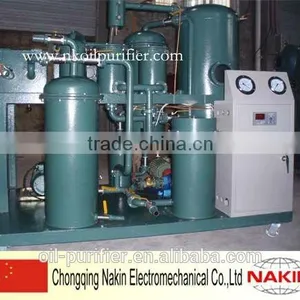

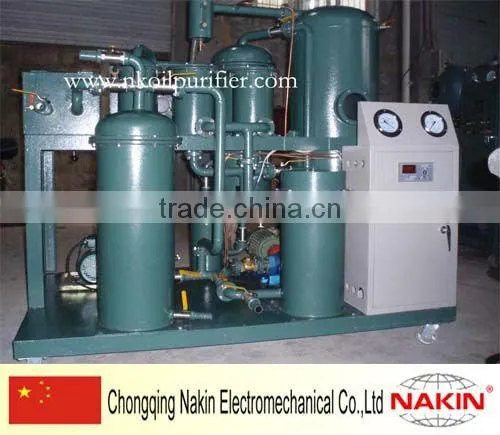

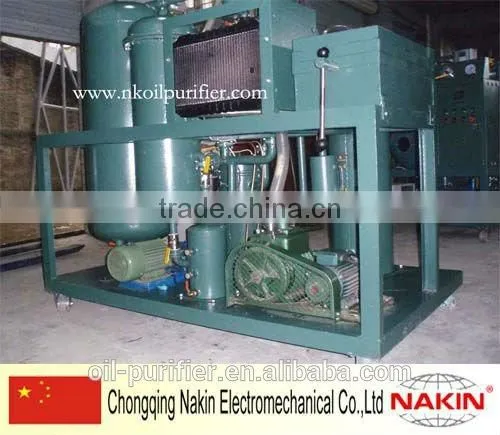

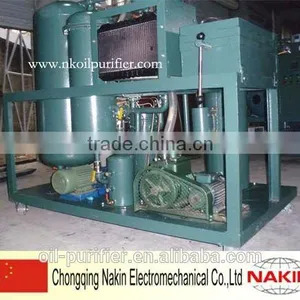

Carbon Steel Body

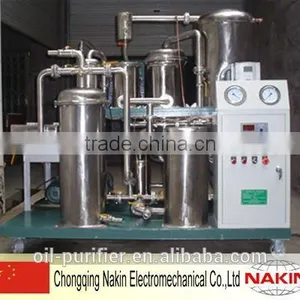

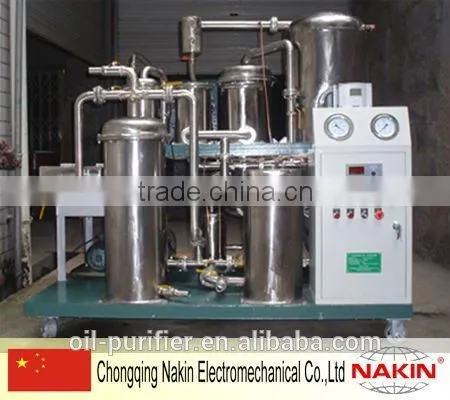

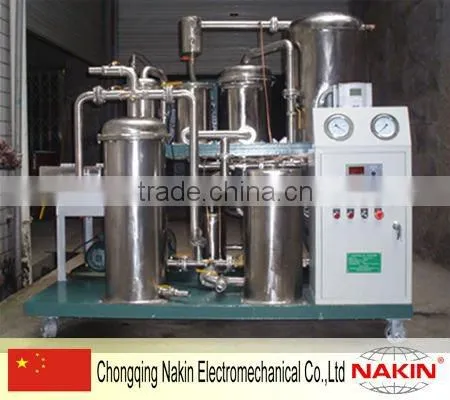

Stainless Steel Body
Nakin Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.
NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages insulating oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type transformer oil treatment, oil filtration machine
AD-Air dryer for drying electric equipments
TY-Turbine oil purifier, oil treatment
TJ-Coalescence and separating oil filter, oil purifier machine
TYA-Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JYWL-Horizontal-closed type filtration device
TPF-Waste cooking oil recycling machine
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure oil filter, oil purifier machine
JL-Portable oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
