Used Cooking Oil Recovery Machine As Filtration System/Oil Refinery
Introduction:
This filtration plant is special for filtering waste cooking oil; it removes impurity, odor, water, acid and alcohol etc. from oil completely and effectively. Treated cooking oil color is limpidity, oil is good smell. This filtration plant is suitable for food factory, cooking oil factory, vegetable oil factory, it can help factory reclaim remnants oil. Also, TPF is a good filtration part for bio-diesel oil making.
Advantages:
1.TPF is composed of vacuum filtration system and pressure filtering system. Vacuum filtration system equips three grades filters, all of mesh filters are made of stainless steel, which make sure anti-corrosion and reliable. Pressing filtering system uses filter paper or filter bag as filter-media, making sure filter size is less than 1 micron.
2.TPF vacuum filtration system adopts the vacuum vaporizing technology to remove water, odor, alcohol and volatilization materials to Inhibit acid value and peroxide value increases.
3.High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
4.Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5.Adoptsinterlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Main Techincal Parameters:
Parameters |
Unit |
TPF -10 |
TPF -30 |
TPF -50 |
TPF -100 |
Flow rate |
L/H |
600 |
1800 |
3000 |
6000 |
Vacuum degree |
Mpa |
-0.06 ~- 0.095 |
|||
Working pressure |
Mpa |
≤0.4 |
|||
Working Temperature |
℃ |
0~80 |
|||
Clean Degree |
NAS |
6 Grade |
|||
Impurity Size |
μm |
1 |
|||
Gas Content |
% |
0.1 |
|||
Water content |
PPM |
≤10 |
|||
Working noise |
dB(A) |
≤75 |
|||
Electric heating power |
KW |
24 |
24 |
30 |
48 |
Total electric power |
KW |
30 |
30 |
35 |
55 |
Inlet (outlet) caliber |
mm |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Size |
mm |
1700x1050x1750 |
1800x1050x1800 |
1800x1150x1800 |
2000x1250x1950 |
Weight |
Kg |
650 |
720 |
880 |
1000 |

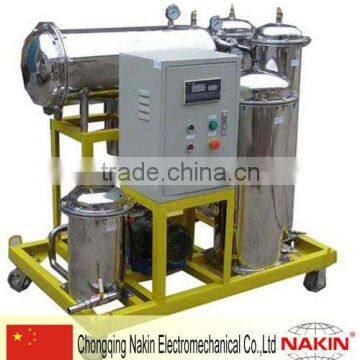

Prodcut Picture:
1.Each TPF machine packed in one high quality wooden case; Durable wooden case packaging suitable for long distance ocean/train transportation.
2.Shipping on time according to the customer requierment.
3.Appointed shipping company could be used in shipment.
4.Whole process monitoring insures the safety of goods unitl arrival.
1.More than one year warranty, All our products have been approved by CE , ISO and other certificates, and providing long term technical support and innovation upgrade guidance;
2.Professional team and 24-hour after-sale service with fluent English and professional knowledge;If there is something wrong with the equipment,we will give a response and provide the solutions in 24h.
3.Provide on-site technology support for Each Customer.Engineers Overseas Aftersale Service are available;
4.All NAKIN manufactured machines will be guaranteed with spare parts and service for one year upon the receiving of shipment;
5.Provide best necessary spare parts at low price (some for free);
6. Like specifictions ( Color, power supply and so on) , ideas of design, protect sales area can follow customer idea.
Our Certificates:
Nakin Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.
Our products list as following:
High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration mnachine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester
