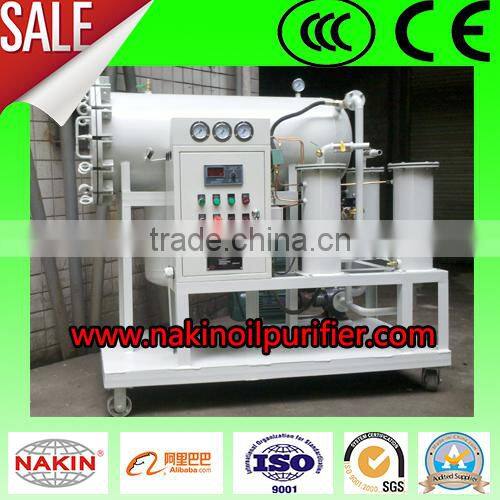

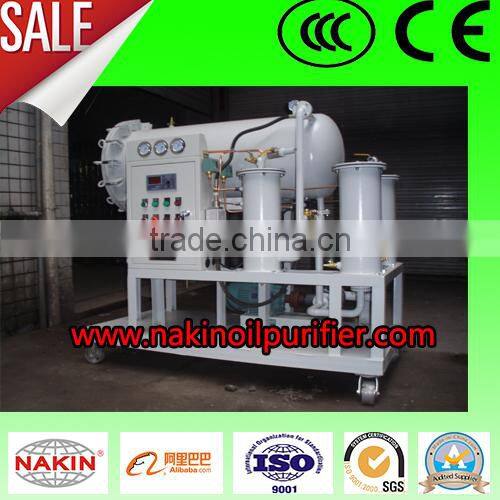

TJ NO heating Coalescence-separation oil purifier/process device
Application:
Series TJ Coalescence-separation oil purifier adopts advanced polymer fibre as the filter medium combined with the special oil-water separating device to make TJ is good at breaking emulsion and filtering. It can effectively separate water from oil. Series TJ can work online with turbine system for breaking emulsion and filtering, also it can separate particles and mass water from light oil. Series TJ works without heating and vacuum source, less power consumption, low operation cost. Series TJ use of trolley structure, light weight, easy operation.
Technical Parameters:
Index name | unit | TJ-10 | TJ-20 | TJ-30 | TJ-50 | TJ-80 | TJ-100 | |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 4800 | 6000 | |
Working pressure | MPa | ≤ 0.3 | ||||||
Demulsifying value | min | ≤15/min(GB/F7035) | ||||||
Water content | ppm | ≤100 | ||||||
Cleanness |
| ≤ NAS 6 GRADE | ||||||
Power supplier |
| 380V 50HZ 3Ph(As per user’s option) | ||||||
Working noise | dB(A) | ≤65~80 | ||||||
Total power | Kw | 0.75 | 0.75 | 0.75 | 2.2 | 2.2 | 3 | |
Weight | kg | 80 | 90 | 105 | 135 | 150 | 185 | |
Dimension | L | mm | 700 | 700 | 700 | 850 | 800 | 1000 |
W | mm | 570 | 570 | 600 | 650 | 650 | 700 | |
H | mm | 550 | 600 | 650 | 750 | 800 | 850 | |
Nakin Electromechanical Co., Ltd is a leading machinery manufacture. Our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.
NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages insulating/transformer oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type transformer oil treatment, oil filtration machine
TY-Turbine oil purifier, oil treatment
TJ-Coalescence and separating light/fuel/gasoline oil filter, oil purifier machine
TYA-Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JYWL-Horizontal-closed type filtration device
TPF-Waste cooking oil recycling machine
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure turbine/transformer/engine/diesel/hydraulic oil filter, oil purifier machine
JL-Portable turbine/lube/insulating oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
