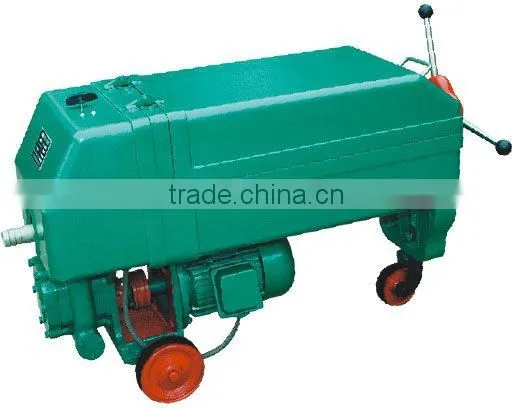

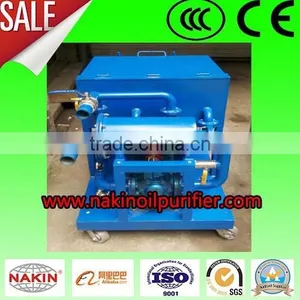

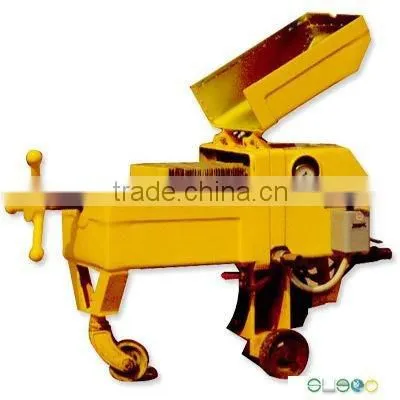

Help CenterSimple Structure Plate-Press Oil Purifier
Related Products
-
Plate-Press Diesel Oil Purifier/filtration for Aviation Hydraulic Oil(PF)US$ 1,000 - 5,000MOQ: 1 Set -
JL-effectively Multistage Portable Oil Purification/processing Set for Used Transformer OilUS$ 3,000 - 9,000MOQ: 1 Set
-
Mechanical Impurity Min Oil Treatment/purify/renew Machine(NK-JL)US$ 1,000 - 5,000MOQ: 1 Set
-
MODEL (PF-300 18000L/H) Bio-diesel Oil Purifier/refinery/reuse EquipmentUS$ 1,000 - 5,000MOQ: 1 Set
-
Small Batches Power Industry Used Oil Transformer Oil Purifier/regeneration DeviceUS$ 1,000 - 5,000MOQ: 1 Set
Application:
Series PF Plate-press oil purifier is mainly used to purify transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil etc. It can remove water and particles from oil, if adopting stainless steel body, the machine can be as the vegetable oil purifier. The machine is mainly composed of filtering bed, oil pump and primary-filtering components. It uses filter paper as filter medium, different filtration precisions choosing different filter paper. Series PF is high filtration precision, simple structure, easy operation, low operation cost.
PF machine is very simple, very popular. And the Particles size can achieve less than 0.3 micrometer.
Technical Parameters:
Index name |
Unit |
PF30 |
PF50 |
PF100 |
PF125 |
PF150 |
PF200 |
PF300 |
|
Flow rate |
L/H |
1800 |
3000 |
6000 |
7500 |
9000 |
12000 |
18000 |
|
Working pressure |
MPa |
0-0.3 |
|||||||
Filtering size |
≥ m 2 |
0.48 |
0.6 |
1.35 |
1.55 |
2 |
2.5 |
3.1 |
|
Plate dimension |
mm |
180*180 |
280*280 |
||||||
Pressing way |
Manual |
||||||||
Filter ring quantity |
14 |
18 |
39 |
47 |
24 |
29 |
34 |
||
Filter plate quantity |
15 |
19 |
40 |
48 |
25 |
30 |
35 |
||
Power |
KW |
1.1 |
2.2 |
3 |
5.5 |
||||
Inlet calibre |
1 |
1 1/4 |
2 1/2 |
||||||
Outlet calibre |
3/4 |
1 1/4 |
2 1/2 |
||||||
Dimension |
L |
mm |
800 |
900 1000 |
1100 |
1200 |
|||
W |
mm |
300 |
440 |
||||||
H |
mm |
720 |
840 |
1000 |
|||||
Filter paper |
mm |
180*180 |
280*280 |
||||||
Weight |
kg |
50 |
55 |
85 |
110 |
150 |
175 |
190 |
|
Particles size |
≤ 1-3 µm |
||||||||
