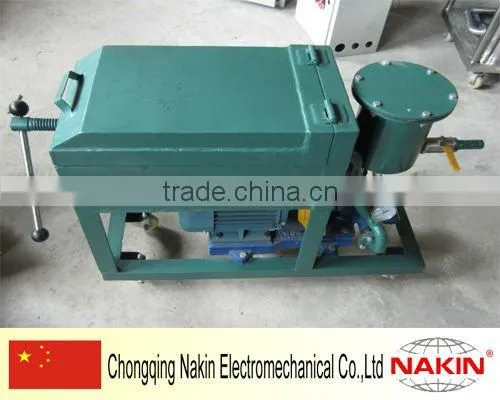

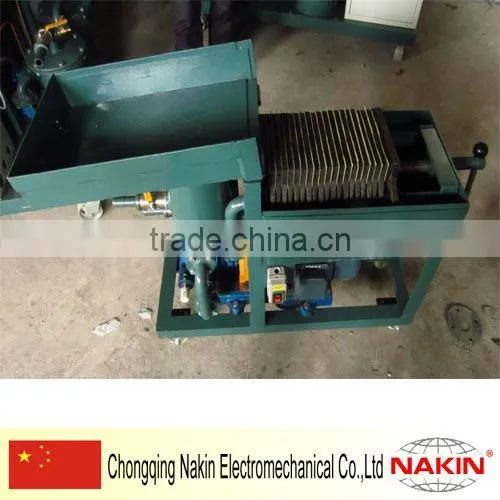

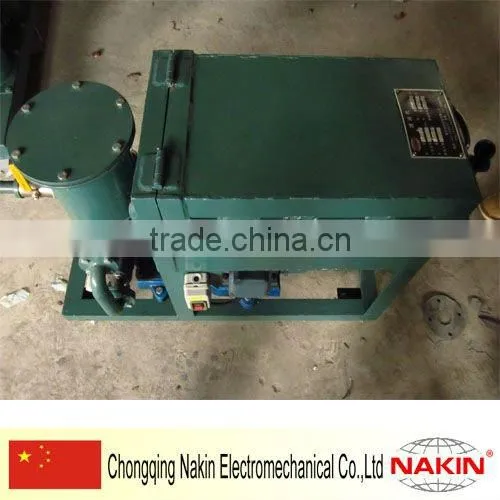

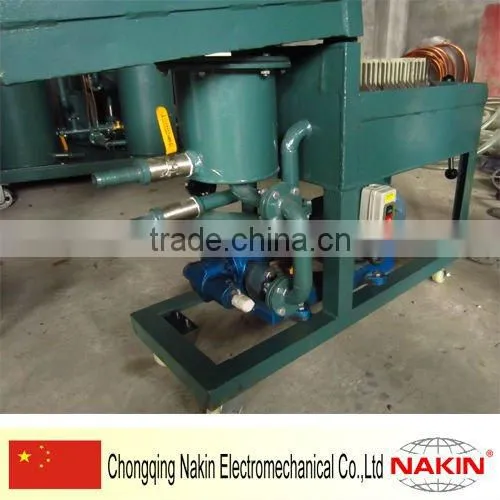

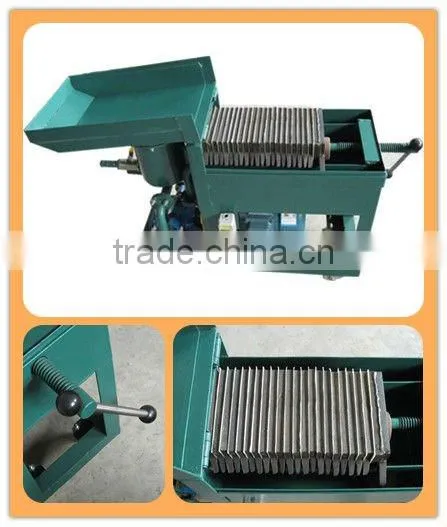

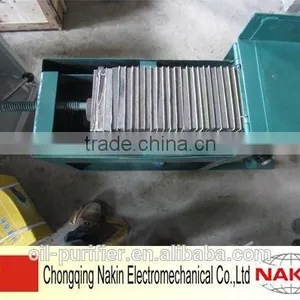

Plate-Press Used Oil Purifier for Transformer Oil (Use Filter Paper)

Name: Plate-Press Used Oil Purifier for Transformer Oil (Use Filter Paper)
Brand: NKAIN
SKU: 143307446
Availability: InStock

Plate-Press Used Oil Purifier for Transformer Oil (Use Filter Paper) thumbnail-1

Plate-Press Used Oil Purifier for Transformer Oil (Use Filter Paper) thumbnail-2

Plate-Press Used Oil Purifier for Transformer Oil (Use Filter Paper) photo-1

Plate-Press Used Oil Purifier for Transformer Oil (Use Filter Paper) photo-2

US$ 3,000 - 4,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Flow:

1800~18000 litres per hour

Working Pressure:

0-0.3 MPa

Contact Supplier Request Quote Chat Now

Chongqing Nakin Electromechanical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Flow 1800~18000 litres per hour

Working Pressure 0-0.3 MPa

Place of Origin Chongqing, China

Brand Name NKAIN

Model Number PF

Usage Transformer Oil

Certification CE

Plate-Press Oil Purifier for Transformer Oil (Use Filter paper)

Application:

Series PF Plate-press oil purifier is mainly used to purify transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil etc. It can remove water and particles from oil, if adopting stainless steel body, the machine can be as the vegetable oil purifier. The machine is mainly composed of filtering bed, oil pump and primary-filtering components. It uses filter paper as filter medium, different filtration precisions choosing different filter paper. Series PF is high filtration precision, simple structure, easy operation, low operation cost.

Technical Parameters:

Index name	Unit		PF30	PF50	PF100	PF125	PF150	PF200	PF300
Flow rate	L/H		1800	3000	6000	7500	9000	12000	18000
Working pressure	MPa		0-0.3
Filtering size	≥ m 2		0.48	0.6	1.35	1.55	2	2.5	3.1
Plate dimension	mm		180×180				280×280
Pressing way			Manual
Filter ring quantity			14	18	39	47	24	29	34
Filter plate quantity			15	19	40	48	25	30	35
Power	KW		1.1		2.2		3		5.5
Inlet calibre			1		1 1/4				2 1/2
Outlet calibre			3/4		1 1/4				2 1/2
Dimension	L	mm	800		900 1000		1100		1200
	W	mm	300				440
	H	mm	720		840			1000
Filter paper	mm		180×180					280×280
Weight	kg		50	55	85	110	150	175	190
Particles size	≤ 1-3 µm
