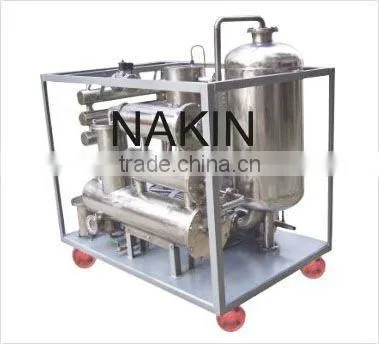

Fire Resistant Oil Filtering Set From Nakin
Application:
Series TYK Fire Resistant Oil Filtering Set From Nakin is latest vacuum oil purifier designed for purifying the unqualified phosphate ester fire-resistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles. This machine body is stainless steel which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to make sure treated oil reach the standard of new fire-resistant oil. Series TYK Multistage Filtration Machinery for Fire Resistant Oil Refine is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.
Fire Resistant Oil Filtering Set From Nakin
Unique Features:
1. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter
2. technologies of vacuum dewatering, multi-stage filtration system and new adsorbent
3. Stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. High quality filtering components, large capacity for holding particles, anti-corrosion technologies of vacuum dewatering, multi-stage filtration system and new adsorbent
6.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak..
Technical Parameters:
Index name |
Unit |
TYK-10 |
TYK-20 |
TYK-30 |
TYK-50 |
TYK-100 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
|
Working vacuum |
MPa |
-0.06~-0.095 |
|||||
Working pressure |
MPa |
≤0.3 |
|||||
Demulsifying value |
min |
≤15/min(GB/F7035)+ |
|||||
Water content |
ppm |
≤5 |
|||||
Gas content |
% |
≤0.1% |
|||||
Acid value |
mKOH/g |
≤0.05 |
|||||
Resistance value |
Ω |
≤5.0×109Ω |
|||||
Cleanness |
|
≤NAS 6 grade |
|||||
Power supply |
|
380V 50HZ(As per user’s option) |
|||||
Working noise |
dB(A) |
≤65~80 |
|||||
Temperature range |
°C |
40~60 |
|||||
Heating power |
Kw |
9 |
10 |
16 |
19 |
30 |
|
Total power |
Kw |
12.5 |
14 |
21 |
24.5 |
35.5 |
|
Dimension |
L |
mm |
1500 |
1600 |
1650 |
1700 |
1750 |
W |
mm |
1000 |
1200 |
1250 |
1300 |
1400 |
|
H |
mm |
1700 |
1700 |
1800 |
1850 |
1900 |
|
