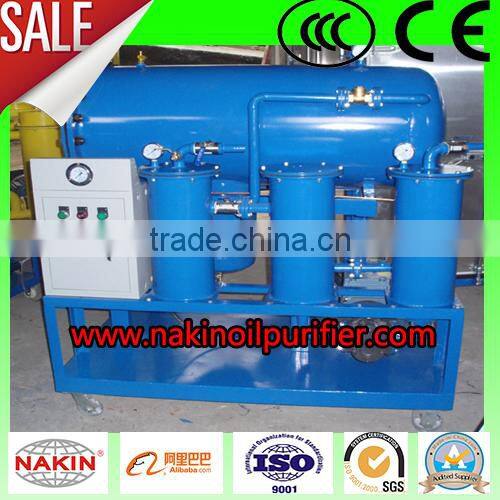

Special Light Fuel Oil Restoration Equipment
TJ Diesel oil filtration Unit is the special oil-water separating device for gasoline ,diesel oil as well as light oil.
TJ Diesel oil filtration Unit is good at breaking emulsion and filtering. It can effectively separate water from oil. also it can separate particles and mass water from oils.
TJ Diesel oil filtration Unit works without heating and vacuum source, less power consumption, low operation cost.
TJ use of trolley structure, light weight, easy operation.
Technical Parameters:
Index name |
nit |
TJ-10 |
TJ-20 |
TJ-30 |
TJ-50 |
TJ-80 |
TJ-100 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
4800 |
6000 |
|
Working pressure |
MPa |
≤ 0.3 |
||||||
Demulsifying value |
min |
≤15/min(GB/F7035) |
||||||
Water content |
ppm |
≤100 |
||||||
Cleanness |
|
≤ NAS 6 GRADE |
||||||
Power supplier |
|
380V 50HZ 3Ph(As per user’s option) |
||||||
Working noise |
dB(A) |
≤65~80 |
||||||
Total power |
Kw |
0.75 |
0.75 |
0.75 |
2.2 |
2.2 |
3 |
|
Weight |
kg |
80 |
90 |
105 |
135 |
150 |
185 |
|
Dimension |
L |
mm |
700 |
700 |
700 |
850 |
800 |
1000 |
W |
mm |
570 |
570 |
600 |
650 |
650 |
700 |
|
H |
mm |
550 |
600 |
650 |
750 |
800 |
850 |
|
