Specifications
Waste transformer oil clarification machine:1.good performence for clarifying the waste transformer oil
2.large capacity.
If you are interested in our oil purifier machines, please do not hesitate to contact us.
Contact: Annabelle
Email1: nakinpurifierwu(at)yahoo(dot)com
Email2:annabellewu(at)qq(dot)com
Skype;Wu.jianglan
Alibaba:cn220038009
Our products list as following:
ZYD vacuum transformer oil purifier
ZY vacuum transformer/insulating oil purifier
ZYM Mobile Trailer type transformer oil purifier
IIJ-II Insulating/transformer oil dielectric strength tester
TYA Lubricant/hydraulic/turbine oil purifier
JZS Waste engine oil regeneration system
TJ Coalescence and separating oil purifier
TYK Phosphate ester fire-resistant oil purifier
PF Plate pressure oil purifier, Portable oil purifier
NKEE-36 Oil moisture sensor
AD Air dryer for drying electric equipments
TPM Oil water separator
Series ZY Waste transformer oil clarification machine, mainly for the power station, industrial and mining enterprises purifying the unqualified transformer oil, mutual inductor oil, switch oil and so on. Series ZY Waste transformer oil clarification machinecan remove water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. Also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.

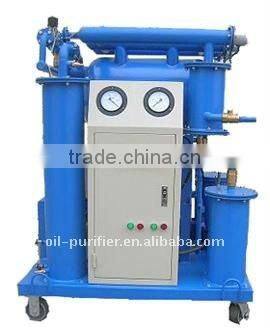

Waste transformer oil clarification machine
Features:
1.Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
2. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Working with BZ insulating oil regeneration device to decolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.
UAdvantages:
Series ZY is efficient and economical insulating oil purifier. Duplex-Stereo film evaporation technology, unique and advanced dewatering, degassing components, making working efficiency is 3-5 times than traditional oil purifier. Machine adopts interlocked protective system, double-infrared liquid level sensor and pressure protective system to make sure the machine work unattended, operation easy, safe and reliable.
UTechnical Parameters:
Index name |
Unit |
ZY-5 |
|
Flow rate |
L/H |
300 |
|
Working vacuum |
MPa |
-0.06~-0.095 |
|
Working pressure |
MPa |
≤ 0.4 |
|
Temperature range |
°C |
20 ~ 80 |
|
Dielectric strength |
KV |
≥ 65 |
|
Water Content |
ppm |
≤ 5 |
|
Gas content |
% |
≤ 0.1 |
|
Particles size |
μ |
≤ 3 |
|
Power supplier |
|
380v 50Hz,3Ph (As per user’s option) |
|
Working noise |
dB(A) |
≤ 65~85 |
|
Heating power |
Kw |
15 |
|
Total power |
Kw |
16.5 |
|
Inlet(Outlet) |
mm |
Φ25 |
|
Weight |
kg |
250 |
|
Dimension |
L |
mm |
1000 |
