Light Weight Hot Sale Foam Generator Machine Introduction
High-Expansion Foam Generator is fixed in the building, on the wall use pipe connected pump supply water and foam fire extinguishing. The Foam Generator can be used to protect the building, hotel, restaurant, cabins, hangar, engine test workshop, garage, oil depots, alcohol workshop, pump house, chemical plant, nuclear power plant, computer room and so on.
PFS- 4 High- Expansion Foam Generator Working Principle
PFS- 4 High- Expansion Foam Generator obtains water from the pump through proportioner according to 3% of the proportion to form mixture, which under pressure transmitted to the generator, when the pressure mixed liquid through the nozzle by impact and fast rotates and drives a fan generated wind, blowing mixture produced foam cluster cover fire, cooling, isolated oxygen and firefighting, but also protect the scene personnel safety, etc. Can also unscrew and connected with hose connection buckle of High-expansion Generator, connected with foam gun to do long distance firefighting.
PFS- 4 High- Expansion Foam Generator Installation and Maintenance :
1,Installation
(1),Distance within 300cm of foam generator air inlet end should not have shelter.
(2),Foam generator foam net forward within 1m should not have obstacles to hinder the foam spray.
(3) Foam generator used in the whole submerged system, the installation height should be higher than the height of the Foam design.
(4) foam net should face the protection area.
2, Maintenance:
<![if !supportLists]>(1)<![endif]>, Often clean foaming net, at any time, the foam net is not allowed to have debris.
<![if !supportLists]>(2)<![endif]>, Foam Generator need rinsed with water after every time’s jet.
(3), The foam generator overhaul once a year, after the overhaul of the assembly, with the 1.0MPa pressure seal test. All parts and joints can not have leakage or obvious deformation.
(4), The installation of the equipment can not be arbitrarily removed, so as to avoid loss of performance.
Light Weight Hot Sale Foam Generator Machine Parameter
Foam capacity |
100-200m³/min |
Foam expansion |
700-900 |
Working water pressure |
0.3-1.0MPa |
Weight |
32kg |
Mixing ratio |
3-4.6% |
Installation dimension |
722*368*725mm |
Water flow rate |
230-270L/min |

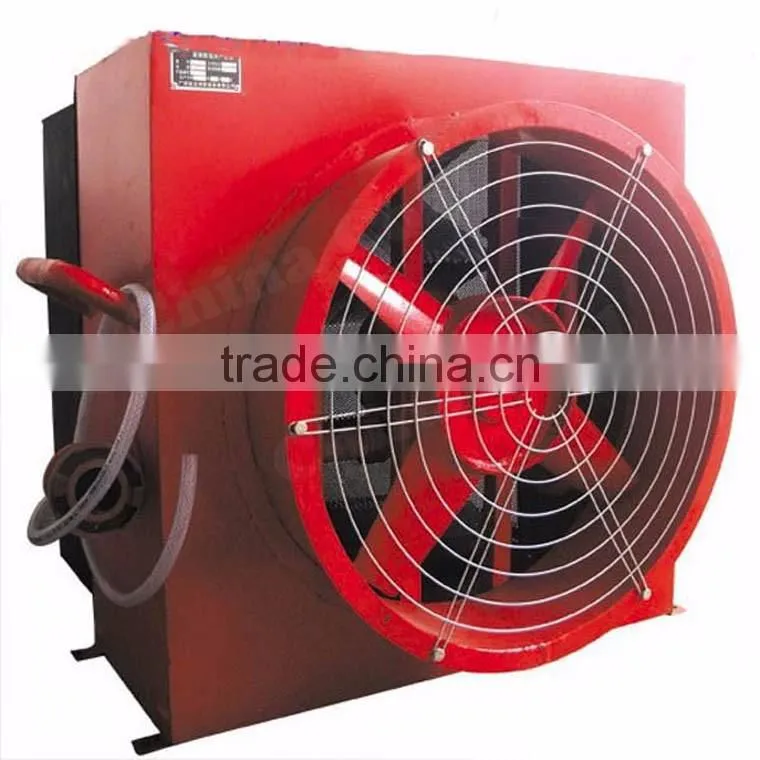

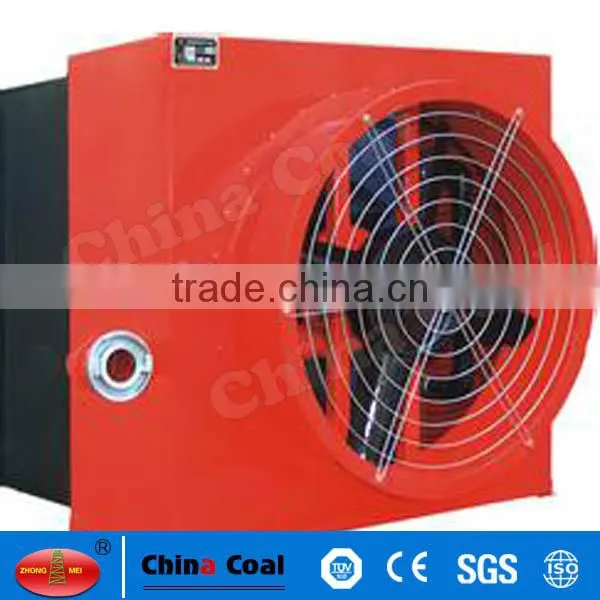

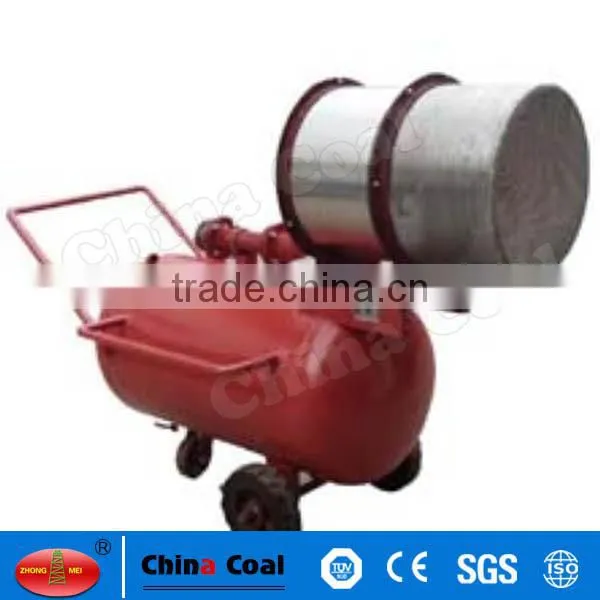

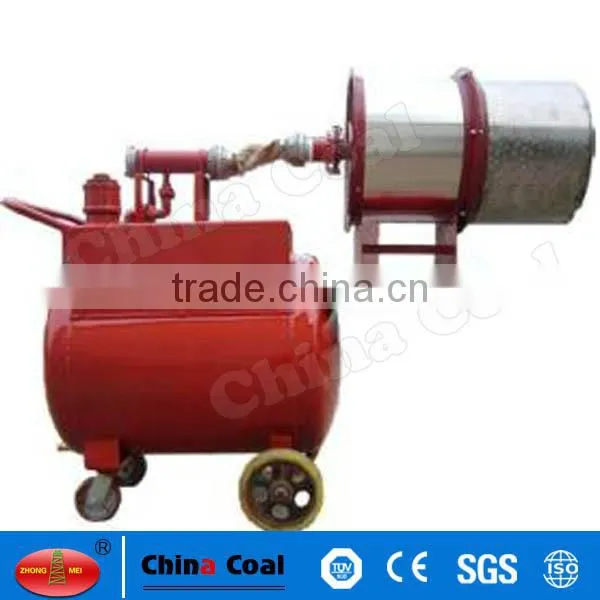

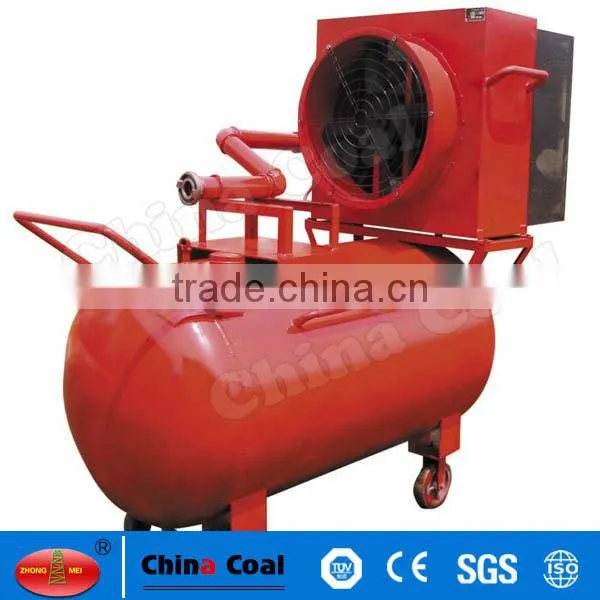

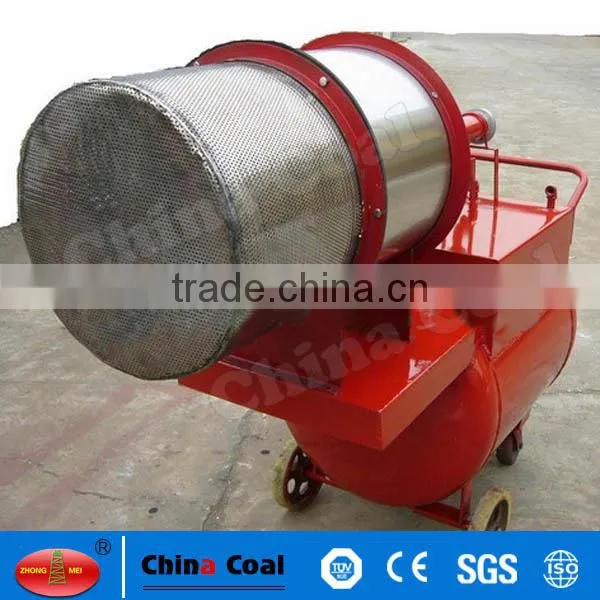

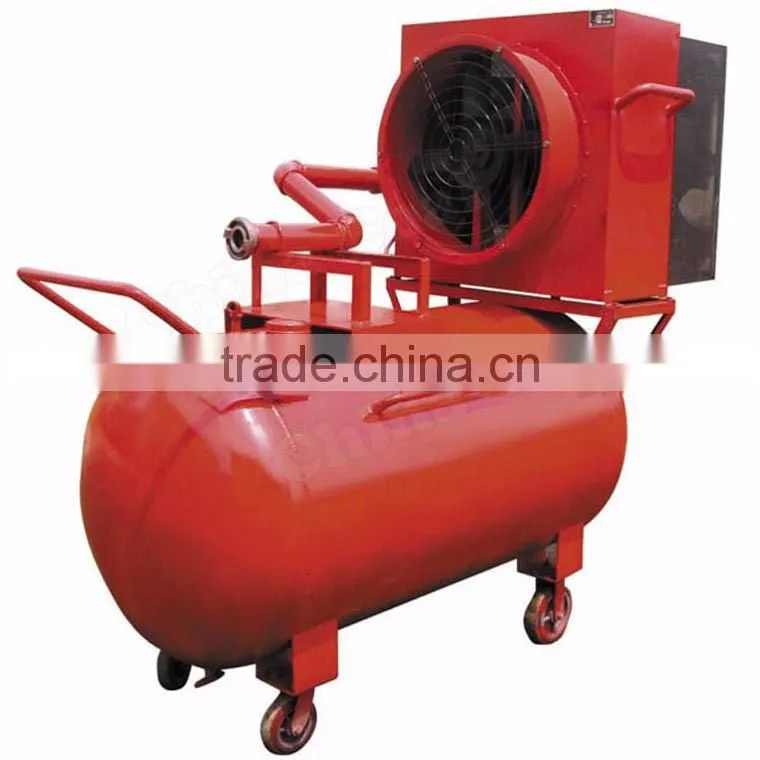

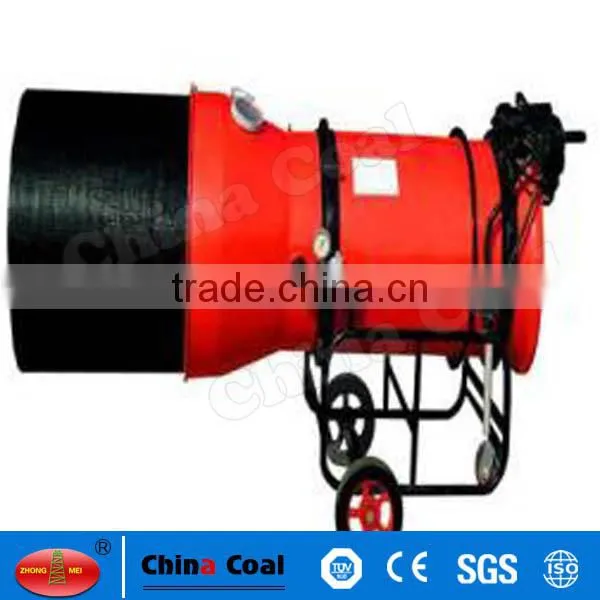

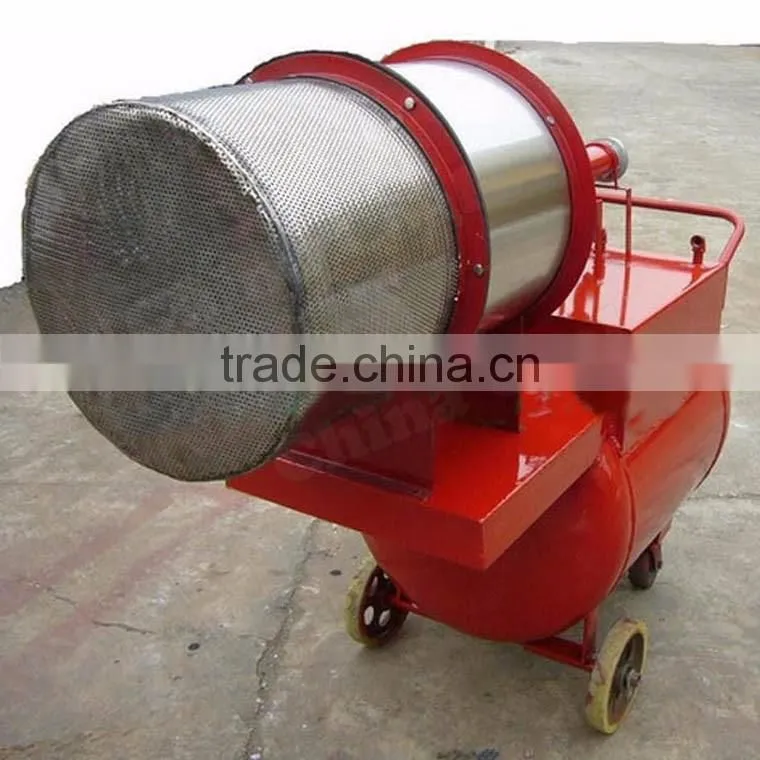

Light Weight Hot Sale Foam Generator Machine Photos
